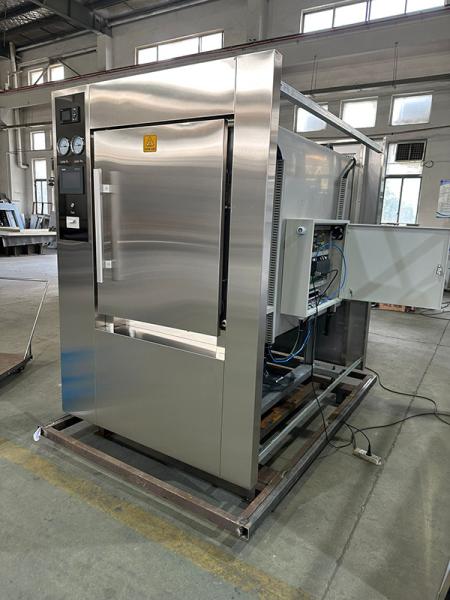

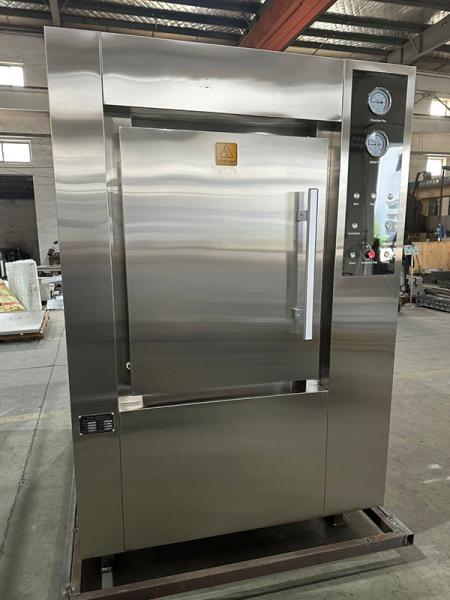

360L Optional Double Door Hospital Use Square Chamber Horizontal Steam Sterilizer

This Horizontal rectangular autoclave uses saturated steam as the sterilization medium, which would completely penetrate into the surface of the articles through pulsating vacuum, and all the microorganisms and their spores would be killed by it under high pressure. It is the most reliable and effective method in physical sterilization. Pulsating vacuum exhaust eliminates the influence of cold air on temperature, finally, the sterilizing articles are dried by vacuum dehumidification combined with a jacket.

Main Parameter:

Product Details

Product Features:

Designed, manufactured, and inspected in accordance with:

1. GB/T 150 – Pressure Vessel Standard

2. GB 8599 – Technical Requirements for Large-Scale Steam Sterilizers (Automatic Control Type)

3. TSG 21-2016 – Safety Technology Supervision Regulations for Fixed Pressure Vessels

Main Structural Features:

1. Rectangular cross-section with European-style annular stiffener jacket

2. Pneumatic door sealing with double-door interlock, fully compliant with regulatory specifications

3. Inner tank and door panels made of S30408 stainless steel, with a design life of 10 years / 20,000 sterilization cycles

   • Optional: 316L stainless steel, with extended life of 15 years / 30,000 cycles

4. Door teeth and locking teeth: S30408 stainless steel

5. Jacket: High-grade Q245R pressure vessel material (S30408 optional)

6. Equipped with standard GMP verification interface

Piping System:

1. 304 stainless steel sanitary piping, clamp-type connections

2. Fitted with imported brand valves:

   • German GEMU angle seat pneumatic valve

   • Taiwan AIRTAC solenoid valve

   • German SPECK direct-connection water-ring vacuum pump

3. (Optional):

   • Intelligent automatic drainage system

   • Water-saving and noise-reduction system

   • Pipeline insulation treatment

Control System:

1. Imported Siemens PLC and color touch screen on the operator’s side

2. Real-time process data printing

3. Multiple safety protections and alarm systems

4. (Optional):

   • Communication interface for integration with hospital traceability systems

   • Remote monitoring and intelligent maintenance module

Performance Advantage:

1. Compound pulsation vacuum process for thorough air removal

2. Improves equipment fatigue life

3. Excellent drying performance

Application::

• Laboratory Autoclave: glassware, culture medium, surgical instrument autoclave, biological waste (must be handled in compliance with regulations).

• Healthcare Single Door Horizontal Autoclave: surgical instrument kits, dressing kits, fabrics.

• Pharmaceutical Autoclave/Bioengineering Autoclave/Food Industry Autoclave: production containers, tools, some raw materials/packaging materials (compatibility needs to be confirmed).

•

Why Choose Us?

1. Direct Rectangular Chamber Steam Sterilizer Manufacturer Pricing: As the autoclave source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

1. Q: What are your payment terms?
   A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
2. Q: What is the delivery time?
   A: The high capacity horizontal autoclave production time is about 30–45 working days for one unit.
3. Q: What certifications does the rectangular autoclave have?
   A: CE, ISO 13485, ISO 9001.
4. Q: What warranty and after-sales support do you offer for horizontal steam sterilizer autoclave?
   A: 12-month warranty from installation. We offer:
   ① Remote technical support via phone, email, video.
   ② Operation & maintenance training (manuals, online/on-site).
   ③ Ample spare parts stock.
   24/7 technical response guaranteed.
5. Q: How do you ship the horizontal pressure sterilizer?
   A: Ship by Sea or Air
   ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
   ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
6. Q: What trade terms do you support?
   A: EXW, FOB, CFR, CIF, and DDP.
7. Q: Are you a horizontal autoclave factory or a trading company?
   A: We are a pressure steam sterilizer manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.
