Specifications
Brand Name :
Stertek
Model Number :
STT-HB12 to STT-HB24
Certification :
CE, ISO13485,ISO9001
Place of Origin :
China
MOQ :
1
Price :
291USD-2666USD
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
10-15days
Packaging Details :
Standard Export Wooden Case
Capacity :
12L, 18L, 24L
Door Structure :
Handle door
Sterilization Trays :
3 sterilizing plates
Display :
LCD display
Data Recording :
Printer Equipped
Chamber Material :
Stainless Steel 304
Drying Function :
Included
Water Tank :
Build-In
Max Working Temp. :
138℃
Working Press. :
0.25Mpa
Description

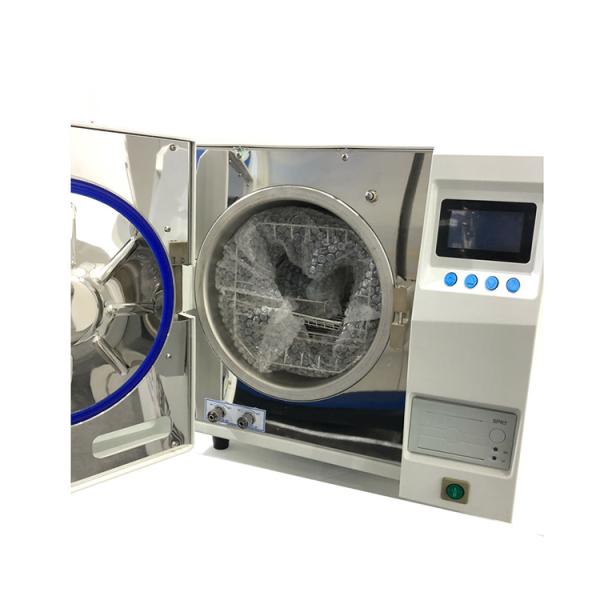

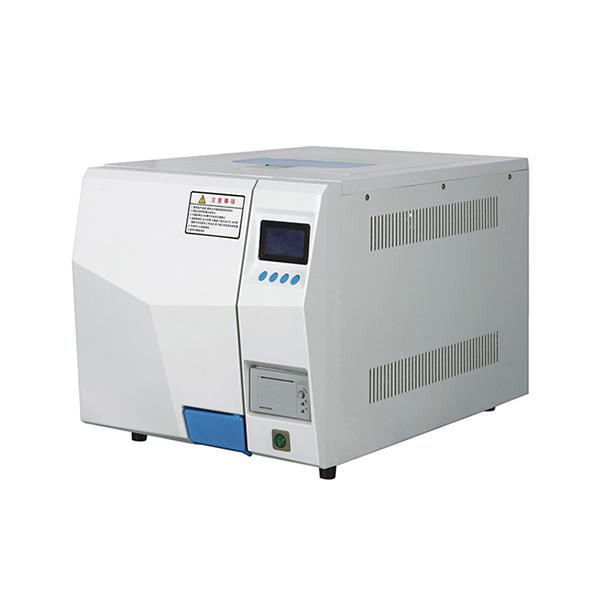

12L to 50L Class B type LCD display Table top Autoclave Sterilizer

This Class B Autoclave with Pre Vacuum is an automatic high temperature and pressure rapid sterilizer which works with steam as medium. It can be widely used in department of stomatology and ophthalmology, operating room, supply room, dialysis room and other medical institutions. It is ideal equipment for unpacked items, solid instruments, dental hand pieces, endoscopes, implantable instruments, dressing fabric and rubber tubes, etc.

Built-in Steam Generator Table Autoclave Parameter:

MODEL

STT-HB12

STT-HB18

STT-HB23

Sterilizing chamber volume

12L

(φ200×370)

18L

(φ250×360)

23L

(φ250×470)

Design pressure

0.3Mpa

Design temperature

150℃

Max. Working pressure

0.25Mpa

Max. Working temperature

138℃

Timer Range

0-99 min

Heat average

≤ ± 1℃

Power

1.8KW

2.0 KW

Dimension(mm)

480x600x400

560×470×400

675×470×400

Package dimension(mm)

580x790x580

655×560×495

765×560×495

G.W/N.W

48kg/43kg

52/47 kg

58/53kg

Triple Vacuum Class B Autoclave Details

12L Class B Table Top Autoclave Sterilizer LCD Display Tabletop Steam Sterilizer

Clinic Use Class B Steam Sterilizer Features:

1. Standard Class B with three times vacuum, vacuum drying.

2. LCD display working status, operating temperature, pressure and time, pulsating vacuum, drying, water level and system errors.

3. The vacuum data can reach -0.8 bar, it fits various instrument, including package, unpackaged, solid, hollow, multi-apertures and inset pipes.

4. Cycle progresses automatically by control system through conditioning, sterilizing, exhaust, drying and venting phases.

5. With 7 sterilization program cycles: Fluid, Instrument, Textile, Rubber, Customize, Vacuum test, B & D test.

6. The timer starts only after the pre-set temperature is reached, ensuring complete sterilization.

7. Automatic air venting device (vacuum pump) discharges cool air from chamber to obtain effective saturated steam.

8. Fast and independent steam generator to provide strict control of heating temperature.

9. Built-in mini printer, water tank, high efficiency filter.

10. Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.

11. Can inactivate HIV, HBV, mad cow virus and bacillus.

12. The Cylindrical chamber is made of high quality SUS 304 stainless steel with polished surface for long lasting service and easy cleaning.

13. This machine is designed for open water tank, water purification, sewage tank separation, convenient and intutive.

14. Sound-light alarm when sterilization finished and cuts off the heating power source. Power shuts off upon completion of the cycle.

Safety Device:

1. Heater protection

2. Anti-dry heating

3. Safety interlock door: The program can’t start up when the door is unlocked under normal condition. Door is locked and the door can’t open when pressure in chamber.

4. Over-temperature protection: Adapt PT100 with accuracy class A for temperature control in chamber, collect temperature data in real-time, protect and alarm when temperature higher than default value.

5. Over-pressure protection: The relief valve starts to release pressure automatically when the pressure in chamber and steam generator exceed the default value.

6. Automatic release safety valve

7. Over current protect

8. Electric safety protective device: Fuse protects control units when short circuit or overload occurs.

9. Overheating protection device: High temperature deviation in chamber actuates protective device cuts off the heating source immediately.

10. Vacuum pump overload: The vacuum pump stops and alarms once its motor is overload or blocked when vacuum pump running.

Application of Tabletop B Class Autoclave

  • Laboratory/Scientific Research: glassware, culture medium, surgical instrument kits (must be matched with instrument baskets), biological waste (must be handled in compliance with regulations).
  • Hospital/Clinic/Medical Health: surgical instrument kits, dressing kits, fabrics.
  • Pharmaceutical/Bioengineering/Food Industry: production containers, tools, some raw materials/packaging materials (compatibility needs to be confirmed).
  • 12L Class B Table Top Autoclave Sterilizer LCD Display Tabletop Steam Sterilizer

Our Factory

12L Class B Table Top Autoclave Sterilizer LCD Display Tabletop Steam Sterilizer

Why Choose Us?

  1. Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

  2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

  3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

  4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

  1. Q: What are your payment terms?
    A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
  2. Q: What is the delivery time?
    A: About 15 working days for one unit.
  3. Q: What certifications does the sterilizer have?
    A: CE, ISO 13485, ISO 9001.
  4. Q: What warranty and after-sales support do you offer for the B Class Autoclave?
    A: 12-month warranty from installation. We offer:
    ① Remote technical support via phone, email, and video.
    ② Operation & maintenance training (manuals, online/on-site).
    ③ Ample spare parts stock.
    24/7 technical response guaranteed.
  5. Q: How do you ship the Autoclave?
    A: Ship by Sea or Air
    ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
    ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
  6. Q: What trade terms do you support?
    A: EXW, FOB, CFR, CIF, and DDP.
  7. Q: Are you a factory or a trading company?
    A: We are a Autoclave manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.

Other Autoclaves

Along with this Class B compact tabletop steam sterilizer, we offer a wide selection of smart and energy-efficient autoclave machines, including Class N desktop sterilizers, vertical gravity discharge steam autoclaves, internal circulation vertical steam sterilizers, automatic vacuum vertical sterilization units, horizontal energy-saving autoclave systems, pre-vacuum horizontal chamber sterilizers, and portable mini steam autoclaves. Designed for private medical practices, mobile labs, pharmaceutical inspection laboratories, and university research facilities, our autoclaves emphasize intelligent microprocessor control, multi-layered safety features, and outstanding sterilization performance.
