Specifications
Brand Name :
Stertek
Model Number :
STV-V100
Certification :
CE, ISO13485,ISO9001
Place of Origin :
China
MOQ :
1
Price :
448USD-3000USD
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
15 working days
Packaging Details :
Standard Export Wooden Case
Capacity :
100L
Door type :
Handwheel door
Sterilizing Baskets :
2 pcs baskets
Display :
LCD display
Data Recording :
Printer
Body Material :
Stainless Steel 304
Chamber Size :
∅450*650mm
Net Weight :
132kg
Working Temp. :
134℃
Working Press. :
0.22Mpa
Description

Touch Screen Operation with Automatic Fault Alarm Pulse Vacuum Autoclave Machine 100L

This Vacuum Pressure Autoclave mainly used in hospital, laboratories, universities and other institutes where users need to sterilize temperature resistance items. It is ideal equipment for surgical instruments, fabrics, glasses, culture media etc.

Main Parameter:

Model STV-V100
Volume 100L
Power 4.5kW
Voltage AC 220V,50HZ
Rated working pressure 0.22Mpa
Rated working temperature 134℃
Sterilization temperature 50℃~134℃
Sterilization time setting range 4~120 min
Drying time setting range 0~240min
Chamber volume Ø450×650
Bucket dimension Ø420×540
Basket dimension(optional) Ø410×300×2
Outer dimension 760×560×1260
Packing size (L× W× H )mm 870×650×1380
Gross/net weight 159/132KG

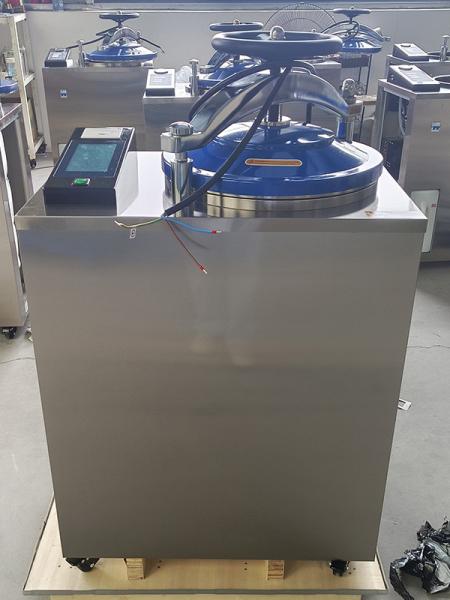

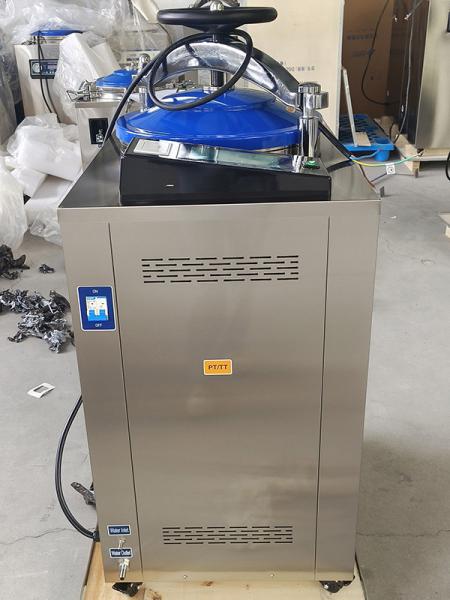

Pulse Vacuum Vertical Autoclave Detailed Picture

Touch Screen pulse vacuum steam sterilizer 100L Automatic Fault Alarm

Features of High Pressure Pulse Vacuum Steam Sterilizer

  1. Equipped with hand wheel translation and quick-opening structure for easy and secure operation.

  2. Three times pre-vacuum ensures efficient air removal for thorough sterilization.

  3. Constructed with high-quality stainless steel material for durability and corrosion resistance.

  4. Microcomputer automatic control system allows flexible setting of sterilization parameters.

  5. Safety interlocking device prevents accidental door opening during the sterilization process.

  6. User-friendly touch screen display shows real-time operating status and parameters.

  7. Designed with a standard test interface for convenient performance testing (e.g., BD test, vacuum test).

  8. Features a self-expanding sealing ring for superior airtight performance.

  9. Includes drying function, ideal for instruments and dressing sterilization.

  10. Integrated automatic protection system, including over-temperature protection, over-pressure self-discharge protection, low water level protection, and anti-dry burning safety.

  11. Comes with stainless steel sterilization bucket or basket for versatile loading.

  12. Buzzer reminder after sterilization completion with automatic stop function.

  13. Supports automatic discharge of cold air and steam exhaust after sterilization for improved efficiency.

  14. Built-in internal printer to automatically record sterilization data for traceability.

Applications of Vertical Type Autoclave Machine

  1. Laboratory / Scientific Research:
    Suitable for glassware, culture media, surgical instrument kits (requires matching with instrument baskets), and biological waste (must be processed in accordance with local regulations).
  2. Hospital / Clinic / Medical Facilities:
    Ideal for sterilizing surgical instrument sets, dressing kits, and medical fabrics.
  3. Pharmaceutical / Bioengineering / Food Industry:
    Applied to the sterilization of production containers, laboratory tools, raw materials, and packaging materials (compatibility must be confirmed prior to use).

Touch Screen pulse vacuum steam sterilizer 100L Automatic Fault Alarm

Why Choose Us?

  1. Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

  2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

  3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

  4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

  1. Q: What are your payment terms?
    A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
  2. Q: What is the delivery time?
    A: Verical autoclave delivery time is about 15 working days for one unit.
  3. Q: What certifications does the sterilizer have?
    A: CE, ISO 13485, ISO 9001.
  4. Q: What warranty and after-sales support do you offer for the vertical autoclave?
    A: 12-month warranty from installation. We offer:
    ① Remote technical support via phone, email, and video.
    ② Operation & maintenance training (manuals, online/on-site).
    ③ Ample spare parts stock.
    24/7 technical response guaranteed.
  5. Q: How do you ship the vertical autoclave?
    A: Ship by Sea or Air
    ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
    ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
  6. Q: What trade terms do you support?
    A: EXW, FOB, CFR, CIF, and DDP.
  7. Q: Are you a factory or a trading company?
    A: We are a autoclave manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.

Related Autoclaves:

In addition to our Vertical Vacuum Steam Sterilizer, we provide a comprehensive range of sterilization equipment, including Vertical Gravity Autoclaves, Vertical Steam Sterilizers with Internal Circulation, Compact Tabletop Sterilizers, Tabletop Vacuum Sterilizers, Horizontal Steam Sterilizers for Hospitals, Pre-Vacuum Sterilizers for Medical Use, and Portable Medical Sterilizers. These high-efficiency autoclaves deliver reliable sterilization solutions for hospitals, dental practices, research laboratories, pharmaceutical manufacturers, and biotech facilities, ensuring compliance with medical-grade standards.
