Specifications
Brand Name :
Stertek
Model Number :
STV-V35 to STV-V100
Certification :
CE, ISO13485,ISO9001
Place of Origin :
China
MOQ :
1
Price :
448USD-3000USD
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
15 working days
Packaging Details :
Standard Export Wooden Case
Door Structure :
Handwheel door
Number of Baskets :
2 pcs sterilizing baskets
Display :
LCD Touch Screen
Data Recording :
Printer Equiped
Material :
Stainless Steel 304
Drying Function :
Vacuum Drying
Water Intake :
Automatic
Capacity :
35L, 50L, 75L, 100L
Working Temp. :
134℃
Working Press. :
0.22Mpa
Description

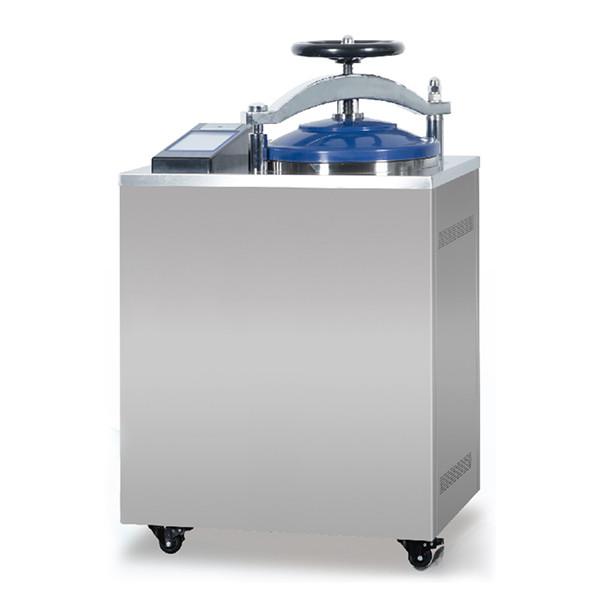

Top Loading Vaccum Autoclave Automatic Steam Pressure Vertical Autoclave

This Advanced Sterilization System vertical vaccum autoclave mainly used in hospital, laboratories, universities and other institutes where users need to sterilize temperature resistance items. It is ideal equipment for surgical instruments, fabrics, glasses, culture media etc.

Main Parameter:

Model

STV-V35

STV-V50

STV-V75

STV-V100

Volume

35L

50L

75L

100L

Power

3.5kW

3.5kW

4.5kW

4.5kW

Voltage

AC 220V,50HZ

Rated working pressure

0.22Mpa

Rated working temperature

134

Sterilization temperature

50℃~134

Sterilization time setting range

4~120 min

Drying time setting range

0~240min

Chamber volume

Ø350×400

Ø400×505

Ø400×655

Ø450×650

Bucket dimension

Ø330×320

Ø380×430

Ø380×560

Ø420×540

Basket dimension(optional)

Ø320×350

Ø360×280×1

Ø360×280×2

Ø410×300×2

Outer dimension

698×498×940

630×530×1180

630×530×1180

760×560×1260

Packing size

(L× W× H )mm

790×610×1130

800×600×1230

840×610×1310

870×650×1380

Gross/net weight

130/115KG

138/118KG

150/124KG

159/132KG

Product Details

35L Vertical Top Loading Autoclave Automatic Pressure Steam Autoclave

Features of Vacuum Assisted Steam Sterilizer

  1. Equipped with hand wheel translation and quick-opening structure for easy and secure operation.

  2. Three times pre-vacuum ensures efficient air removal for thorough sterilization.

  3. Constructed with high-quality stainless steel material for durability and corrosion resistance.

  4. Microcomputer automatic control system allows flexible setting of sterilization parameters.

  5. Safety interlocking device prevents accidental door opening during the sterilization process.

  6. User-friendly touch screen display shows real-time operating status and parameters.

  7. Designed with a standard test interface for convenient performance testing (e.g., BD test, vacuum test).

  8. Features a self-expanding sealing ring for superior airtight performance.

  9. Includes drying function, ideal for instruments and dressing sterilization.

  10. Integrated automatic protection system, including over-temperature protection, over-pressure self-discharge protection, low water level protection, and anti-dry burning safety.

  11. Comes with stainless steel sterilization bucket or basket for versatile loading.

  12. Buzzer reminder after sterilization completion with automatic stop function.

  13. Supports automatic discharge of cold air and steam exhaust after sterilization for improved efficiency.

  14. Built-in internal printer to automatically record sterilization data for traceability.

Our Factory

35L Vertical Top Loading Autoclave Automatic Pressure Steam Autoclave

Applications of Vertical Autoclave Sterilizer

  1. Laboratory / Scientific Research:
    Suitable for glassware, culture media, surgical instrument kits (requires matching with instrument baskets), and biological waste (must be processed in accordance with local regulations).
  2. Hospital / Clinic / Medical Facilities:
    Ideal for sterilizing surgical instrument sets, dressing kits, and medical fabrics.
  3. Pharmaceutical / Bioengineering / Food Industry:
    Applied to the sterilization of production containers, laboratory tools, raw materials, and packaging materials (compatibility must be confirmed prior to use).

35L Vertical Top Loading Autoclave Automatic Pressure Steam Autoclave

Why Choose Us?

  1. Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

  2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

  3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

  4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

  1. Q: What are your payment terms?
    A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
  2. Q: What is the delivery time?
    A: Verical autoclave delivery time is about 15 working days for one unit.
  3. Q: What certifications does the sterilizer have?
    A: CE, ISO 13485, ISO 9001.
  4. Q: What warranty and after-sales support do you offer for the vertical autoclave?
    A: 12-month warranty from installation. We offer:
    ① Remote technical support via phone, email, and video.
    ② Operation & maintenance training (manuals, online/on-site).
    ③ Ample spare parts stock.
    24/7 technical response guaranteed.
  5. Q: How do you ship the vertical autoclave?
    A: Ship by Sea or Air
    ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
    ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
  6. Q: What trade terms do you support?
    A: EXW, FOB, CFR, CIF, and DDP.
  7. Q: Are you a factory or a trading company?
    A: We are a autoclave manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.

Related Autoclaves:

We supply a complete series of autoclave sterilizers designed for hospitals, laboratories, clinics, and research centers. Our product range includes Vertical Internal Circulation Autoclaves, Vertical Gravity Autoclaves, and Vertical Pulsating Vacuum Autoclaves to meet diverse sterilization needs. For space-saving solutions, we provide Tabletop Steam Sterilizers and Tabletop Vacuum Autoclaves. Large-capacity sterilization is supported by Horizontal Steam Sterilizers and Horizontal Vacuum Steam Sterilizers. For convenient use in small clinics or fieldwork, we also offer Portable Autoclaves. We provide trusted and efficient sterilization solutions for medical and laboratory professionals.
