Specifications
Brand Name :
Stertek
Model Number :
STT-HN18
Certification :
CE, ISO13485,ISO9001
Place of Origin :
China
MOQ :
1
Price :
291USD-2666USD
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
10-15days
Packaging Details :
Standard Export Wooden Case
Capacity :
18L
Packing Size :
580*700*500mm
Gross Weight :
53kg
Door Structure :
Handle door
Number of Baskets :
3 pcs sterilizing plates
Display :
LCD display
Autoclave Data :
Without Printer
Chamber Material :
Stainless Steel 304
Max Working Temp. :
138℃
Working Press. :
0.25Mpa
Description

18L Gravity Displacement System N Class Tabletop Autoclave

HN series Gravity Displacement Tabletop Sterilizer Autoclave is an automatic high temperature and pressure rapid sterilizer which works with steam as medium. It can be widely used in department of stomatology and ophthalmology, operating room, supply room, dialysis room and other medical institutions. It is ideal equipment for unpacked items, solid instruments, dental hand pieces, endoscopes, implantable instruments, dressing fabric, etc.

STT-HN Electric Tabletop Sterilizer Autoclave Parameter:

Technical Data

STT-HN18

Sterilizing chamber volume

18L

Ø250 x 360mm

Design pressure

0.3MPa

Design working temperature

150°C

Maximum working pressure

0.25MPa

Maximum working temperature

138°C

Temperature adjust range ;

105-134°C

Timer range

0~99min

Heat average

±1°C

Power

1.5KW/AC220V.60Hz, Single phase

Sterilizing plate(mm)

340 x 200 x 30(3piece)

Dimension(mm)

480x680x455

Exterior package dimension(mm):

580 x 780 x 560

G.W/N.W

53kg/ 48kg

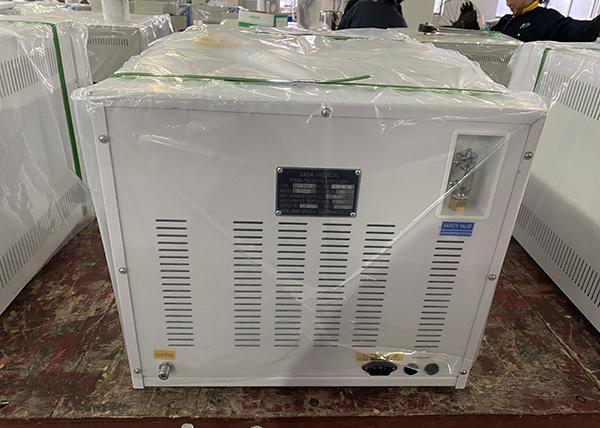

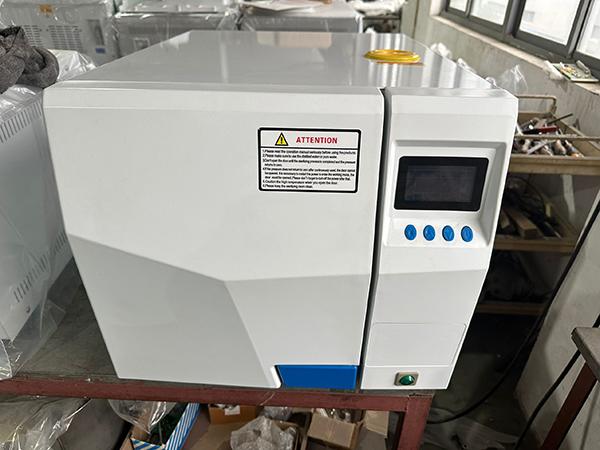

Detailed Pictures of Laboratory Benchtop Autoclave

Gravity Displacement N Type Autoclave Dental 18L For Stomatology And Ophthalmology

Dental Tabletop Autoclave Features:

  1. Fast Sterilization: Rapid 4–6 minute sterilizing cycle.

  2. User Interface: Digital display with touch-sensitive keys for easy operation.

  3. Preset & Adjustable Programs: Three fixed sterilization programs with customizable settings to suit various needs.

  4. Fully Automatic Operation: Water filling, heating, sterilizing, drying, and steam discharging are all automatically controlled.

  5. Steam-Water Inner Circulation System: No steam discharge into the environment, keeping the workspace clean and dry.

  6. Water Shortage Protection: Automatically detects and alerts for insufficient water levels.

  7. Automatic Cool Air Exhaust: Ensures safe and efficient sterilization results.

  8. Safety Door Lock System: Prevents opening when pressure is high or during operation.

  9. Stainless Steel Construction: Chamber made of durable stainless steel for long-lasting use.

  10. Four Sterilizing Trays: Includes four stainless steel trays for flexible loading.

  11. Auto Shut-Off with Beep Reminder: Alerts user upon cycle completion.

  12. Drying Function Included: Enhances sterilization results for dressings and instruments.

Application of the table top autoclave:

  • Laboratory/Scientific Research: glassware, culture medium, surgical instrument kits (must be matched with instrument baskets), biological waste (must be handled in compliance with regulations).
  • Hospital/Clinic/Medical Health: surgical instrument kits, dressing kits, fabrics.
  • Pharmaceutical/Bioengineering/Food Industry: production containers, tools, some raw materials/packaging materials (compatibility needs to be confirmed).
  • Gravity Displacement N Type Autoclave Dental 18L For Stomatology And Ophthalmology

Our Factory

Gravity Displacement N Type Autoclave Dental 18L For Stomatology And Ophthalmology

Why Choose Us?

  1. Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

  2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

  3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

  4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

  1. Q: What are your payment terms?
    A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
  2. Q: What is the delivery time?
    A: About 15 working days for one unit.
  3. Q: What certifications does the sterilizer have?
    A: CE, ISO 13485, ISO 9001.
  4. Q: What warranty and after-sales support do you offer for the table top autoclave?
    A: 12-month warranty from installation. We offer:
    ① Remote technical support via phone, email, and video.
    ② Operation & maintenance training (manuals, online/on-site).
    ③ Ample spare parts stock.
    24/7 technical response guaranteed.
  5. Q: How do you ship the benchtop autoclave?
    A: Ship by Sea or Air
    ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
    ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
  6. Q: What trade terms do you support?
    A: EXW, FOB, CFR, CIF, and DDP.
  7. Q: Are you a factory or a trading company?
    A: We are a autoclave manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.

Other Autoclaves

In addition to this N Type compact benchtop sterilizer, we also produce a variety of space-saving and energy-efficient steam sterilization devices, including Class B tabletop autoclaves, vertical gravity steam units, internal circulation vertical autoclaves, fully automatic vacuum vertical sterilizers, horizontal low-energy steam systems, pre-vacuum horizontal autoclaves, and lightweight portable steam sterilizers. Our products are engineered for use in clinics with limited space, mobile medical units, pharmaceutical laboratories, and scientific research facilities, delivering dependable performance with a focus on efficiency, safety, and reliability.
