Specifications
Brand Name :
Stertek
Model Number :
STT-HB12
Certification :
CE, ISO13485,ISO9001
Place of Origin :
China
MOQ :
1
Price :
291USD-2666USD
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
1000pcs/month
Delivery Time :
10-15days
Packaging Details :
Standard Export Wooden Case
Capacity :
12L
Packing size :
580*790*580mm
Gross Weight :
48kg
Sterilization Trays :
3 sterilizing plates
Display :
LCD display
Chamber Material :
Stainless Steel 304
Drying Function :
Vacuum Drying
Water Tank :
Build-In
Max Working Temp. :
138℃
Working Press. :
0.25Mpa
Description

12L Dental Mini Class B Built-in Water Supply Tabletop Autoclave

This Class B Dental Autoclave with Pre Vacuum is an automatic high temperature and pressure rapid sterilizer which works with steam as medium. It can be widely used in department of stomatology and ophthalmology, operating room, supply room, dialysis room and other medical institutions. It is ideal equipment for unpacked items, solid instruments, dental hand pieces, endoscopes, implantable instruments, dressing fabric and rubber tubes, etc.

Desktop Autoclave Parameter:

MODEL

STT-HB12

Sterilizing chamber volume

12L

(φ200×370)

Design pressure

0.3Mpa

Design temperature

150℃

Max. Working pressure

0.25Mpa

Max. Working temperature

138℃

Timer Range

0-99 min

Heat average

≤ ± 1℃

Power

1.8KW

Dimension(mm)

480x600x400

Package dimension(mm)

580x790x580

G.W/N.W

48kg/43kg

Vacuum Pulse Steam Autoclave Details

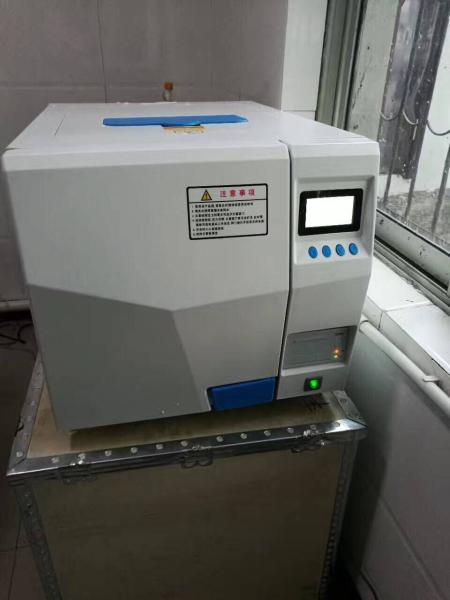

12L Class B Dental Autoclave Built In Water LCD Display Stainless Steel Chamber

Water Tank Integrated Autoclave Features:

1. Standard Class B with three times vacuum, vacuum drying.

2. LCD display working status, operating temperature, pressure and time, pulsating vacuum, drying, water level and system errors.

3. The vacuum data can reach -0.8 bar, it fits various instrument, including package, unpackaged, solid, hollow, multi-apertures and inset pipes.

4. Cycle progresses automatically by control system through conditioning, sterilizing, exhaust, drying and venting phases.

5. With 7 sterilization program cycles: Fluid, Instrument, Textile, Rubber, Customize, Vacuum test, B & D test.

6. The timer starts only after the pre-set temperature is reached, ensuring complete sterilization.

7. Automatic air venting device (vacuum pump) discharges cool air from chamber to obtain effective saturated steam.

8. Fast and independent steam generator to provide strict control of heating temperature.

9. Built-in mini printer, water tank, high efficiency filter.

10. Steam-water inner circulation system: no steam discharge, and the environment for sterilizing will be clean and dry.

11. Can inactivate HIV, HBV, mad cow virus and bacillus.

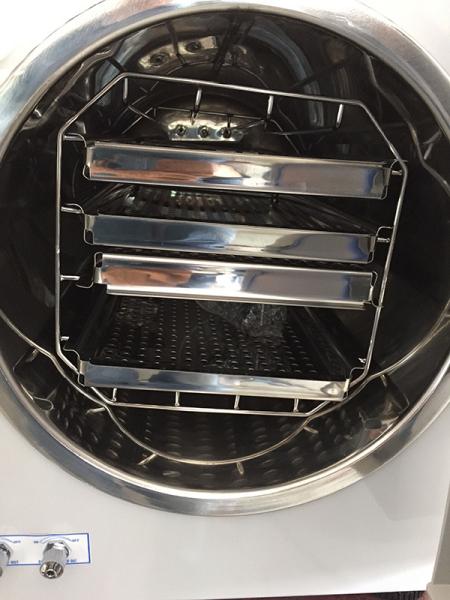

12. The Cylindrical chamber is made of high quality SUS 304 stainless steel with polished surface for long lasting service and easy cleaning.

13. This machine is designed for open water tank, water purification, sewage tank separation, convenient and intutive.

14. Sound-light alarm when sterilization finished and cuts off the heating power source. Power shuts off upon completion of the cycle.

Safety Device:

1. Heater protection

2. Anti-dry heating

3. Safety interlock door: The program can’t start up when the door is unlocked under normal condition. Door is locked and the door can’t open when pressure in chamber.

4. Over-temperature protection: Adapt PT100 with accuracy class A for temperature control in chamber, collect temperature data in real-time, protect and alarm when temperature higher than default value.

5. Over-pressure protection: The relief valve starts to release pressure automatically when the pressure in chamber and steam generator exceed the default value.

6. Automatic release safety valve

7. Over current protect

8. Electric safety protective device: Fuse protects control units when short circuit or overload occurs.

9. Overheating protection device: High temperature deviation in chamber actuates protective device cuts off the heating source immediately.

10. Vacuum pump overload: The vacuum pump stops and alarms once its motor is overload or blocked when vacuum pump running.

Application of Built-in Evaporator Dental Autoclave

  • Laboratory/Scientific Research: glassware, culture medium, surgical instrument kits (must be matched with instrument baskets), biological waste (must be handled in compliance with regulations).
  • Hospital/Clinic/Medical Health: surgical instrument kits, dressing kits, fabrics.
  • Pharmaceutical/Bioengineering/Food Industry: production containers, tools, some raw materials/packaging materials (compatibility needs to be confirmed).
  • 12L Class B Dental Autoclave Built In Water LCD Display Stainless Steel Chamber

Our Factory

12L Class B Dental Autoclave Built In Water LCD Display Stainless Steel Chamber

Why Choose Us?

  1. Direct Manufacturer Pricing: As the source factory, we eliminate middleman costs, providing global clients cost-effective sterilization solutions directly.

  2. Efficient Direct Support: Our service team ensures rapid and efficient communication and support, handled entirely in-house from production to after-sales.

  3. Flexible Custom Solutions: Leveraging strong technical expertise, we offer both standard models and fully customized equipment tailored to specific structural, functional, or control requirements.

  4. Certified Quality & Safety: Every device undergoes strict quality control and holds international certifications (including CE, ISO 13485, ISO 9001), guaranteeing safety, stability, and long-term reliability.

FAQ

  1. Q: What are your payment terms?
    A: T/T (30% deposit, 70% before shipment); Irrevocable L/C at sight.
  2. Q: What is the delivery time?
    A: About 15 working days for one unit.
  3. Q: What certifications does the sterilizer have?
    A: CE, ISO 13485, ISO 9001.
  4. Q: What warranty and after-sales support do you offer for the Vacuum Autoclave?
    A: 12-month warranty from installation. We offer:
    ① Remote technical support via phone, email, and video.
    ② Operation & maintenance training (manuals, online/on-site).
    ③ Ample spare parts stock.
    24/7 technical response guaranteed.
  5. Q: How do you ship the Calss B Autoclave?
    A: Ship by Sea or Air
    ① If you have your forwarder, you can arrange the shipment yourself. We will deliver the goods to the FOB port and cover all local charges before departure.
    ② If you don’t have a forwarder, we can arrange shipping to your designated port under CFR/CIF terms. Freight cost is borne by the customer.
  6. Q: What trade terms do you support?
    A: EXW, FOB, CFR, CIF, and DDP.
  7. Q: Are you a factory or a trading company?
    A: We are a Autoclave manufacturer with our factory, and we also do trading and sourcing. Most products are made by us, while some are from partners or sister companies to complete equipment sets.

Other Autoclaves

Besides this Class B small footprint tabletop steam autoclave, we also deliver a broad range of advanced and eco-friendly sterilization equipment, including Class N bench autoclaves, vertical gravity steam sterilizers, internal circulation vertical steam autoclaves, automatic vacuum-operated vertical sterilizers, horizontal low-energy consumption autoclaves, pre-vacuum horizontal chamber units, and compact portable steam autoclaves. Engineered for outpatient clinics, mobile medical units, pharmaceutical analysis labs, and academic research centers, our autoclave solutions prioritize smart digital control systems, comprehensive safety mechanisms, and high-efficiency sterilization performance.
