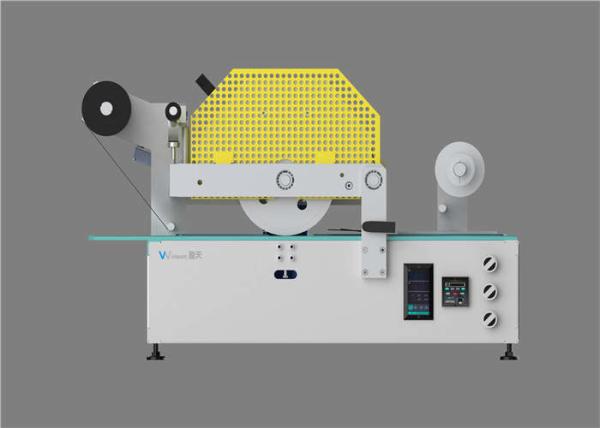

Hot Stamping Licence Plate Making Machine , Number Stamping Machine 2000h
Hot Stamping Licence Plate Making Machine , Number Stamping Machine 2000h
Specifications
Brand Name :
winteam
Model Number :
YT-HS190
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
one set
Price :
Negotiable
Packaging Details :
wooden case
heating power :
2400w
quantity :
300pc/h
Voltage :
220v50hz
port :
shanghai
Condition :
New
Driven type :
Electric,Manual
Description


Powerful Metal Plate Embossing Machine , Number Plate Equipment Aluminum Alloy




A machine that uses hot stamping to quickly, accurately and uniformly color embossed license plates. The machine uses fading foils of various colors to coat the embossed design.

The new technology solution implemented in this machine reduces its power consumption. Because of this, the stamping machine is an efficient machine of its kind on the market.

Technical characteristics


Hot stamping technology has the following advantages over traditional mime printing processes:
· No need for mime printing and drying process, saving more intermediate costs;
·High production efficiency and the purpose of fast card issuance;
·The hot stamping process has no organic solvent discharge, and it is environmentally friendly and safe;
· Better transport safety and storage stability than ink;
· The patterned hot stamping film is anti-counterfeiting.

  • The main parts are made of aluminum alloy, which is small, light and convenient to move, especially suitable for license plate production points;
  • The rack comes with adjustable casters for easy movement and fixing;
  • The whole machine adopts ergonomic design, which is easy to operate and beautiful in appearance.；

Technical features:
·The main parts are made of aluminum alloy, which is small, light and convenient to move, especially suitable for license plate production points;
·The rack comes with universal moving casters for easy movement and fixing;
· Industrial tablet touch screen control, integrated parameter settings, operation, equipment calibration, alarm information prompts and other functions;
·The preheating device can preheat the semi-finished license plate to reduce the heat loss of hot stamping and enhance the hot stamping effect;
·The heat sink can quickly dissipate the device and save time;
·The film end adopts magnetic powder brake device, full digital and high-precision tension control to avoid wrinkling of hot stamping film;
·The rubber roller adopts imported silicone rubber and has a temperature resistance of 300 °C;
·Imported far-infrared ceramic heating, uniform heating, fast temperature compensation;

Parameter

Power supply Single phase AC220V 50Hz
Heating power 2400W
Glue roll motor power 90W
Recycling file motor power 10W
Max wide 170mm
Hot stamping temperature 170℃～240℃
Hot stamping gap Precision 0.01mm
Conveyor belt speed 1.8m/min
Preheat time ≤40min
Glue roll working time 2000h
NET size(L*W*H) 870*435*525mm
NET weight 160Kg
weight with packing 200Kg
noise ＜70DdB
