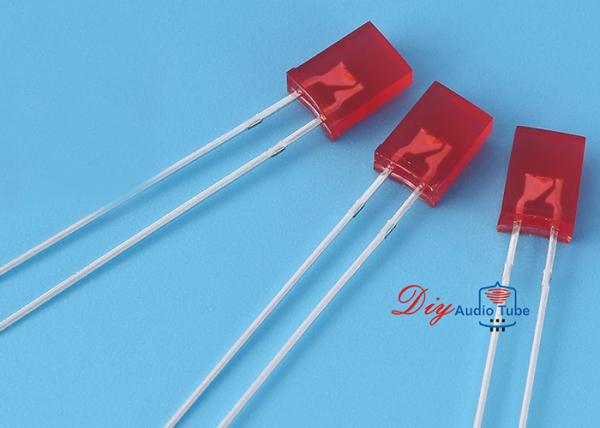

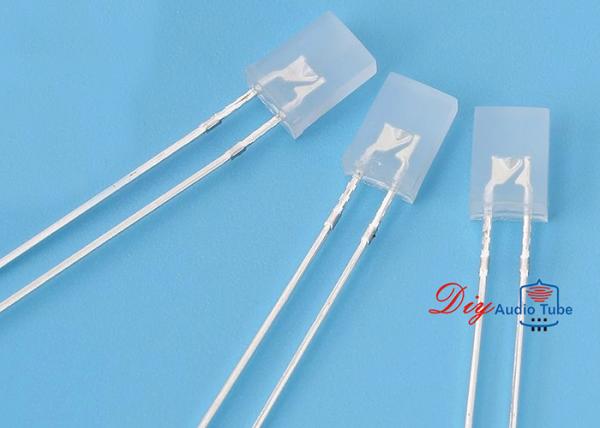

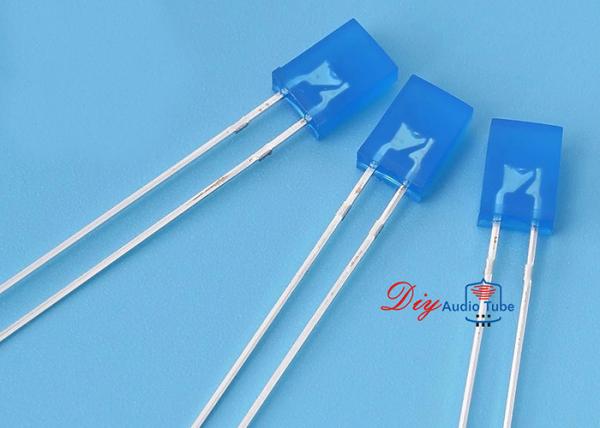

Building display traffic Light 3mm 5mm led emitting diode LED light round square flat top straw hat oval
Building display traffic Light 3mm 5mm led emitting diode LED light round square flat top straw hat oval
Building display traffic Light 3mm 5mm led emitting diode LED light round square flat top straw hat oval
Building display traffic Light 3mm 5mm led emitting diode LED light round square flat top straw hat oval
Building display traffic Light 3mm 5mm led emitting diode LED light round square flat top straw hat oval
Building display traffic Light 3mm 5mm led emitting diode LED light round square flat top straw hat oval
Specifications
Brand Name :
YD
Model Number :
white straw hat led diode
Certification :
Rhos
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Paypal, T/T, Western Union
Supply Ability :
1000bag/month
Packaging Details :
Standard box
Package Type :
Through Hole
Lens type :
Bule Diffused
Max. Forward Voltage :
2.8-3.2V
Feet type :
Long feet(27/29mm)
Shape :
Square
Power :
0.06W
Description
3mm 5mm round square flat top straw hat oval concave led emitting diode
Building display traffic Light 3mm 5mm led emitting diode LED light round square flat top straw hat oval
Building display traffic Light 3mm 5mm led emitting diode LED light round square flat top straw hat oval
Building display traffic Light 3mm 5mm led emitting diode LED light round square flat top straw hat oval
Building display traffic Light 3mm 5mm led emitting diode LED light round square flat top straw hat oval
Building display traffic Light 3mm 5mm led emitting diode LED light round square flat top straw hat oval
Building display traffic Light 3mm 5mm led emitting diode LED light round square flat top straw hat oval
Packaging & Delivery
Packaging Details
Packing:1000pcs / bag, 10bags / box, 6boxes / carton
Carton: 50*37*39cm
Delivery Time: Within 5~8days upon payment done
3mm 5mm round square flat top straw hat oval concave led emitting diode
Port
Shenzhen

Product Description

Type Led Emitting Diode
Shape Square
Lens Size 2x5x7mm
Lens Color Blue diffused
Emitting Color Blue
Wavelength 460-465nm
Feet Size Long feet(27/29mm) Short feet(17/19mm)
Package Type Through Hole
Power 0.06w
Max. Forward Voltage 2.8-3.2V
Max. Reverse Voltage 5V
Max. Forward Current 20mA

Specification For Led Emitting Diode

1. Lens shape: round, square, flat top, straw hat, oval, concave, super flux led piranha
2. Lens size: 3mm,4mm,5mm,8mm,10mm
3. Feet size: long feet(27/29mm) and short feet(17/19mm)
4. Lens color: water clear (transparent), color diffused, white diffused
5. Emitting color:
① 2 pin single color: red, blue, jade green(pure green), light green(yellow green), yellow, orange(amber), purple, pink, white, warm white.
② 3 pin Bi-color: red+green, red+blue, red+yellow, blue+green
③ 4 pin Full color: RGB
④ 2 pin: RGB
6. Wavelength:
red: 620-625nm blue: 460-465nm jade green: 517-520nm light green: 565-570nm
yellow: 589-591nm orange: 600-605nm purple: 395-400nm pink: 649-652nm
7. Forwarder Voltage:
① 1.8-2.1V: red, yellow, orange, light green
② 2.8~3.2V: blue, jade green, purple, pink, white, warm white.
8. Current: 20mA

9. Power: 0.06w, 0.25w, 0.5w, 0.75w.
10. Application: lighting, upholster, project Building, display, traffic Light, etc.
