Shuguang Electronic Vacuum Tube Anode Resistance 62500 Sounds Of Nature 12AX7-T ECC83
Shuguang Electronic Vacuum Tube Anode Resistance 62500 Sounds Of Nature 12AX7-T ECC83
Shuguang Electronic Vacuum Tube Anode Resistance 62500 Sounds Of Nature 12AX7-T ECC83
Shuguang Electronic Vacuum Tube Anode Resistance 62500 Sounds Of Nature 12AX7-T ECC83
Shuguang Electronic Vacuum Tube Anode Resistance 62500 Sounds Of Nature 12AX7-T ECC83
Shuguang Electronic Vacuum Tube Anode Resistance 62500 Sounds Of Nature 12AX7-T ECC83
Specifications
Brand Name :
Shuguang
Model Number :
12AX7-T
Certification :
Rhos CE
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
Paypal, T/T, Western Union
Supply Ability :
1000pcs/month
Packaging Details :
Standard box
Model :
12AX7-T
Type :
Vacuum Valve Tube
Application :
Home Audio Device
Moq :
1 Matched Pair
Price :
Negotiable
Description

Electronic Vacuum Tube ShuGuang Sounds Of Nature 12AX7-T ECC83 12AX7 Vacuum Tube

12AX7-T Tube Socket connection:

Shuguang Electronic Vacuum Tube Anode Resistance 62500 Sounds Of Nature 12AX7-T ECC83 1. Anode Triode Number2
2. Grid Triode Number 2
3. Cathode Triode Number 2
4. Heater ( Triode 2)
5. Heater ( triode 1)
6. Anode Triode Number 1
7. Grid Triode Number 1
8. Cathode Triode Number 1
9. Heater Center Tap

9 pin miniature Preamp Tube 12AX7-T:

1. Can replace Mullard 12AX7, Tung-Sol 12AX7, Mullard CV4004, 7025, ECC83.

2. Can be used for guitar tube amp and hifi audio tube amplifiers.

Datasheet (Refer to 12AX7):

Typical class-A amplifier operation
Amplification factor 100
Anode voltage 250
Anode current 1.2 mA
Bias voltage -2
Anode resistance 62500

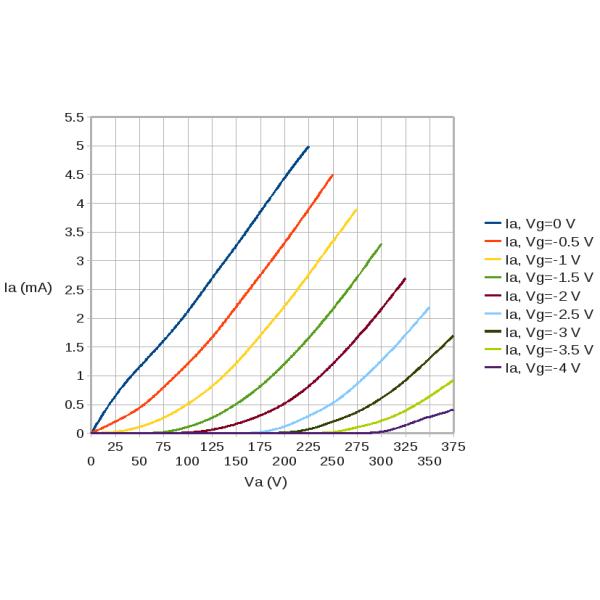

Triode ECC83 Characteristic:

Shuguang Electronic Vacuum Tube Anode Resistance 62500 Sounds Of Nature 12AX7-T ECC83

Shuguang Electronic Vacuum Tube Anode Resistance 62500 Sounds Of Nature 12AX7-T ECC83

Shuguang Electronic Vacuum Tube Anode Resistance 62500 Sounds Of Nature 12AX7-T ECC83
