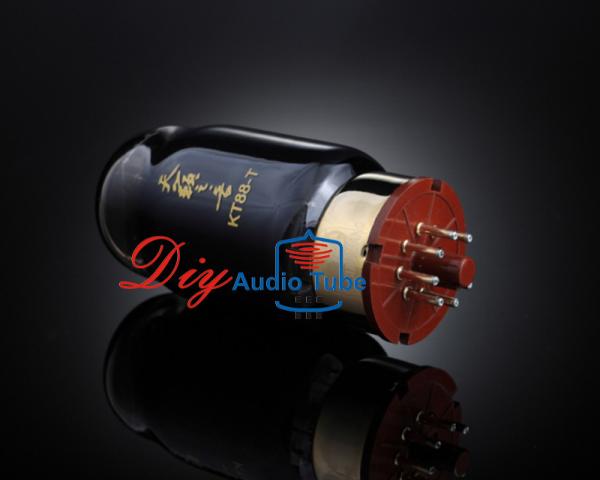

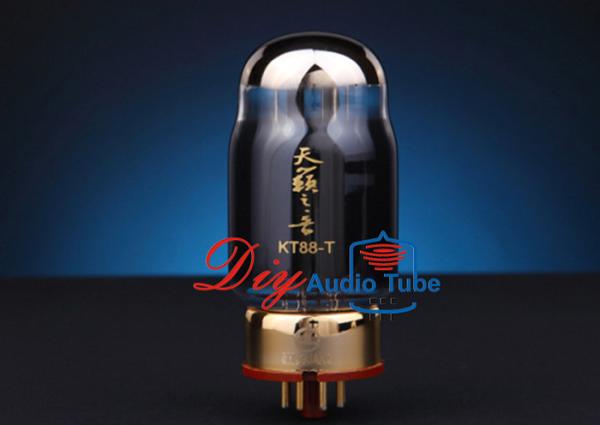

Audio Valve Electronic Vacuum Tube Shuguang KT88-T For Guitar Amplifier
Audio Valve Electronic Vacuum Tube Shuguang KT88-T For Guitar Amplifier
Audio Valve Electronic Vacuum Tube Shuguang KT88-T For Guitar Amplifier
Audio Valve Electronic Vacuum Tube Shuguang KT88-T For Guitar Amplifier
Audio Valve Electronic Vacuum Tube Shuguang KT88-T For Guitar Amplifier
Audio Valve Electronic Vacuum Tube Shuguang KT88-T For Guitar Amplifier
Specifications
Brand Name :
Shuguang
Model Number :
KT88-T
Certification :
Rhos
Place of Origin :
China (Mainland)
MOQ :
Negotiable
Payment Terms :
Paypal, T/T, Western Union
Supply Ability :
1000pcs/month
Packaging Details :
Standard box
Packing :

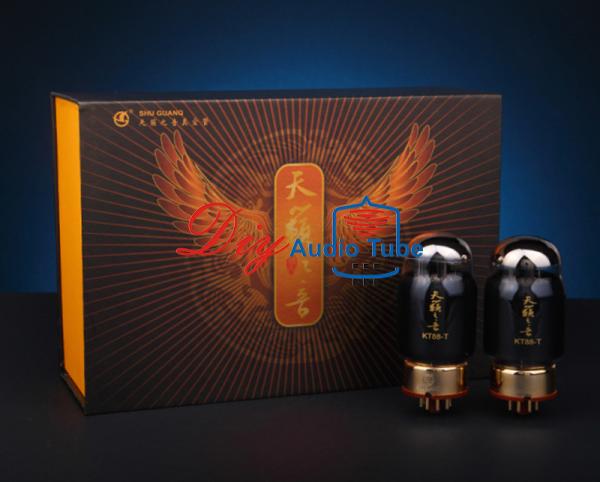

Gift Box
Test Systing :
AMPLITREX AT-1000
Replace model :
KT88,KT88-98,KT88-Z,GEKT88
Matching :

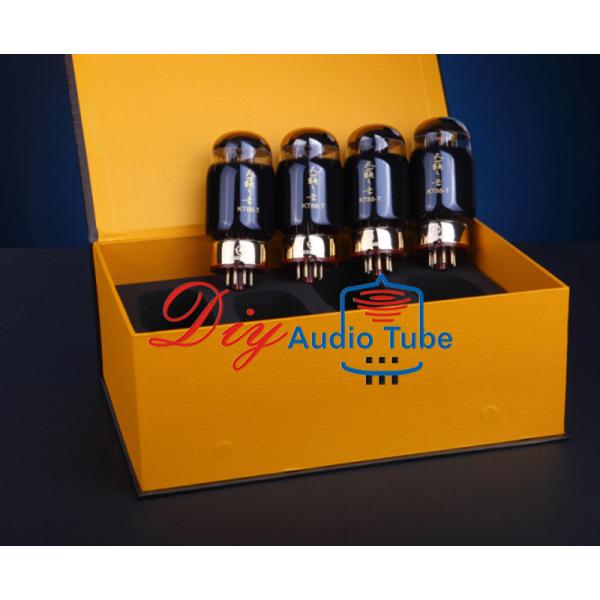

Matched Quad
Warranty :
6 months
Price :
Negotiable
Description

Guitar Amplifier Shuguang KT88-T Audio Valve Vacuum Tube KT88 Power Tube Stereo Vacuum Tubes

1. Socket connection:

Octal base

Audio Valve Electronic Vacuum Tube Shuguang KT88-T For Guitar Amplifier Pin 1, Not used
Pin 2, Heater
Pin-3, Anode/plate
Pin-4, Screen grid, g2
Pin-5, Control grid, g1
Pin-6, Not used
Pin-7, Heater
Pin-8, Cathode-beam plates

2. Characteristics:

Audio Valve Electronic Vacuum Tube Shuguang KT88-T For Guitar Amplifier

3. Description:

The KT88 fits a standard eight-pin octal socket and has similar pinout and applications as the 6L6 and EL34. Specifically designed for audio amplification, the KT88 has similar ratings to the American 6550 which was designed for use as a servo amplifier. It is one of the largest tubes in its class and can handle significantly higher plate voltages than similar tubes, up to 800 volts.

Specifications:
Classification: Beam-power tetrode
Service: Class-A amplifier, (single-ended), class-AB amplifier, (push–pull)
Cathode

Cathode type Indirectly heated

Heater voltage 6.3

Heater current 1.6 A
Anode

Max dissipation Watts 42 W

Max voltage 800
Typical class-A amplifier operation

Anode voltage 250 V

Anode current 140 mA

Screen voltage 250 V

Bias voltage -15 V

Anode resistance 12 kilohms
Typical class-AB amplifier operation

(Values are for two tubes)

Power output 100 W

Anode voltage 600 V

Anode current 100 mA

Screen voltage 350 V

Bias voltage -45, (class AB2)

Audio Valve Electronic Vacuum Tube Shuguang KT88-T For Guitar Amplifier

Audio Valve Electronic Vacuum Tube Shuguang KT88-T For Guitar Amplifier

Psvane HIFI KT88

 Audio Valve Electronic Vacuum Tube Shuguang KT88-T For Guitar Amplifier

Psvane T-II Premium KT88-TⅡ

 Audio Valve Electronic Vacuum Tube Shuguang KT88-T For Guitar Amplifier

Psvane HIFI UK-KT88

 Audio Valve Electronic Vacuum Tube Shuguang KT88-T For Guitar Amplifier

Shuguang Treasure KT88-Z

 Audio Valve Electronic Vacuum Tube Shuguang KT88-T For Guitar Amplifier

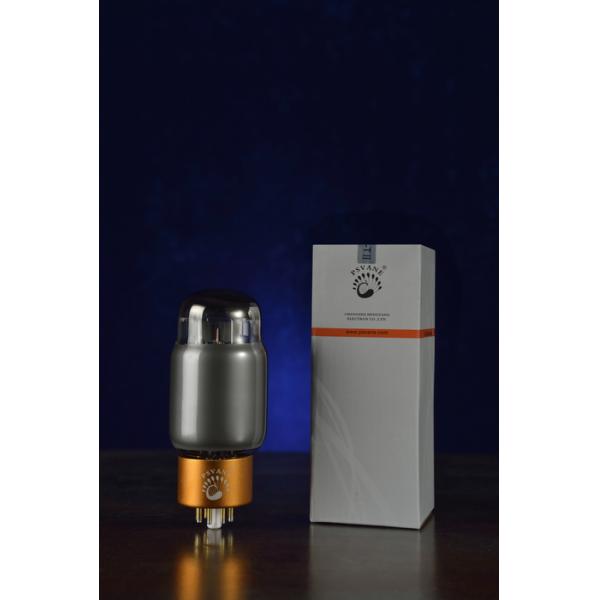

Psvane T KT88-T

 Audio Valve Electronic Vacuum Tube Shuguang KT88-T For Guitar Amplifier Shuguang Natural T KT88-T Audio Valve Electronic Vacuum Tube Shuguang KT88-T For Guitar Amplifier

Psvane T-II Classic KT88-TⅡ

 Audio Valve Electronic Vacuum Tube Shuguang KT88-T For Guitar Amplifier
