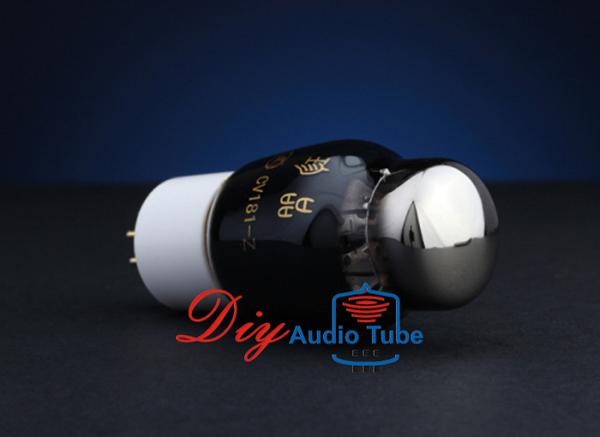

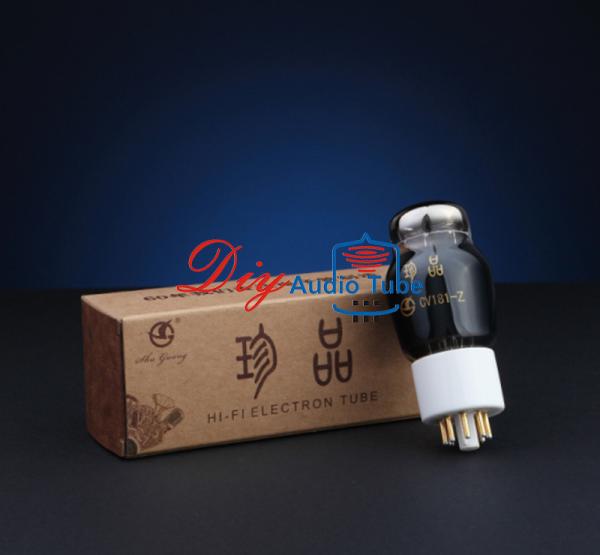

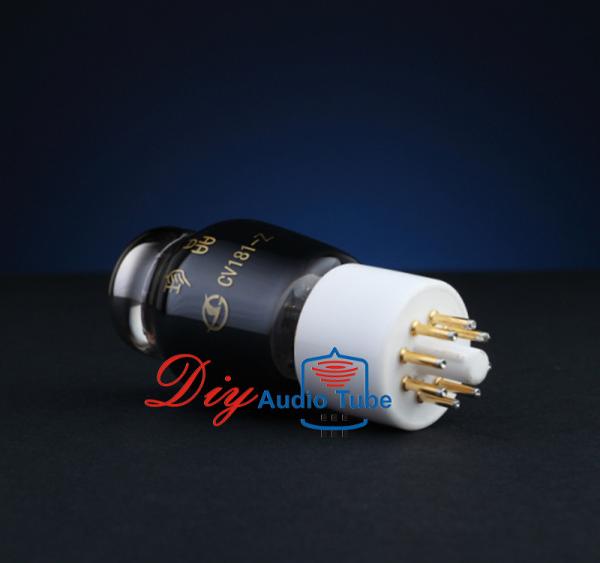

Large Heater Power Guitar Vacuum Tubes , Bluetooth Audio Tube Shuguang Treasure CV181-Z
Large Heater Power Guitar Vacuum Tubes , Bluetooth Audio Tube Shuguang Treasure CV181-Z
Large Heater Power Guitar Vacuum Tubes , Bluetooth Audio Tube Shuguang Treasure CV181-Z
Large Heater Power Guitar Vacuum Tubes , Bluetooth Audio Tube Shuguang Treasure CV181-Z
Large Heater Power Guitar Vacuum Tubes , Bluetooth Audio Tube Shuguang Treasure CV181-Z
Large Heater Power Guitar Vacuum Tubes , Bluetooth Audio Tube Shuguang Treasure CV181-Z
Specifications
Brand Name :
Shuguang
Model Number :
CV181-Z
Certification :
Rhos/CE
Place of Origin :
China (Mainland)
MOQ :
Negotiable
Payment Terms :
Paypal, T/T, Western Union
Supply Ability :
1000pcs/month
Packaging Details :
Standard box
Model :
Shuguang Treasure Series CV181-Z
Type :
Audio tubes
Used for :
tube Amplifier
Moq :
1 pair
Price :
Negotiable
Description

Electronic Vacuum Tube Shuguang Treasure CV181-Z Vacuum Tube Replace CV181 CV181-T 6SN7

1. The CV181 double triode is of the low impedance type and takes a large heater power for such a valve.

2. The design is a modified NR73. The commercial equivalent is the ECC32.


3. The double triode is found in amplifiers and instrumentation.

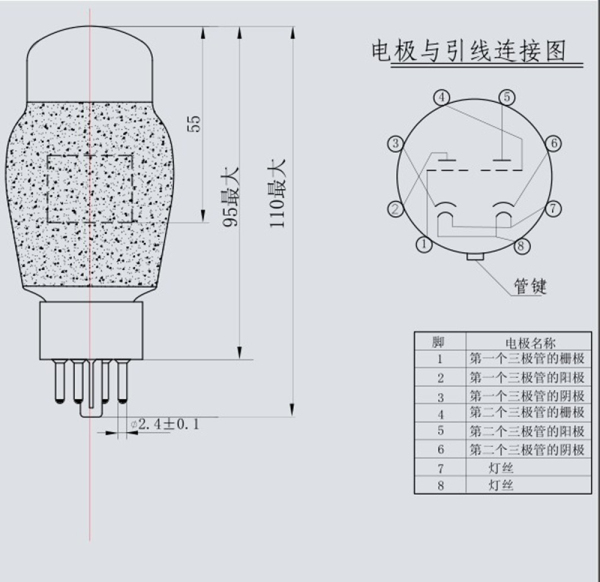

Socket Connections Tube type: Double Triode Audio Frequency
Large Heater Power Guitar Vacuum Tubes , Bluetooth Audio Tube Shuguang Treasure CV181-Z Identical to CV181 = ECC32
Base Octal (Int.Octal, IO) K8A
Filament Vf 6.3 Volts / If 0.95 Ampere /
Description Va <300. Pa <5W Ik<50mA per section

Large Heater Power Guitar Vacuum Tubes , Bluetooth Audio Tube Shuguang Treasure CV181-Z
