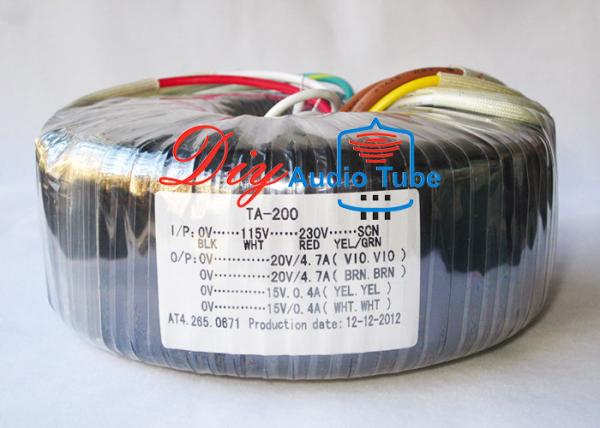

Single Phase Valve Amplifier Power Transformers Auido DAC 200W Low Iron Loss
Single Phase Valve Amplifier Power Transformers Auido DAC 200W Low Iron Loss
Single Phase Valve Amplifier Power Transformers Auido DAC 200W Low Iron Loss
Single Phase Valve Amplifier Power Transformers Auido DAC 200W Low Iron Loss
Specifications
Brand Name :
Tube AMP Transformer
Model Number :
200W Double 24V Double 15V 115V-230V
Certification :
Rhos
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
Paypal, T/T, Western Union
Supply Ability :
1000pcs/month
Packaging Details :
Standard box
Power: :
200W
Input Voltage: :
115V-230V
output Voltage: :
Double 24V Double 15V
Application: :
Auido DAC
Phase: :
Single
Warm appreciation: :
≤55℃
Price :
Negotiable
Description

Tube AMP Transformer R-Core Transformer for Audio Amplifier DAC 200W Double 24V Double 15V 115V-230V

Other moder for Audio DAC Tube Amplifier:

Model Power Voltage (input) Voltage (output) Application(Size)
R3 30W 115V-230V Double 12V + Double 9V 78×71×H43(mm)
30W 115V-230V Double 18V + Double 9V 80×68×40(mm)
30W 115V-230V 9V×3+6.3V+240V 80×68×40(mm)
30W 115V-230V Double 15V + Double 6V 80×68×40(mm)
30W 115V-230V Double 18V 75×69×H41(mm)
30W 115V-230V Double 18V + Double 12V 79×68×39(mm)
30W 115V-230V Double 15V + Single 9V 75×69×H41(mm)
30W 115V-230V Double 24V 80×68×40(mm)
30W 115V-230V Double 15V 79×68×40(mm)
30W 115V-230V Double 15V+ Double 9V 80×68×40(mm)
30W 115V-230V Double 9V 79×68×40(mm)
380W 115V-230V Double 30V(5.9A)+ Double12V(1A) 158×128 ×68(mm)
30W 115V-230V Double 32V 79×68×39(mm)
30W 115V-230V Double 12V 79×68×39(mm)
30W 115V-230V 9V x 4 79×68×39(mm)
E1 120W 115V-230V 30V×2+15V×2 115mm×42mm
R2 200W 115V-230V 20V(4.75A)×2+12V(0.4A)×2 135×110×60(mm)
200W 115V-230V 24V(3.7A)×2+12V(0.8A)×2 135×110×60(mm
200W 115V-230V 26V(3.4A)×2+15V(0.8A)×2 135×110×60(mm
200W 115V-230V 30V×2+15V×2 135×110×60(mm
200W 115V-230V 32V×2+15V×2 135×110×60(mm
200W 115V-230V 36V(2.45A)×2+15V(0.8A)×2 135×110×60(mm
200W 115V-230V 40V(2.2A)×2+15V(0.8A)×2 135×110×60(mm
200W 115V-230V 28V×2+15V×2 135×110×60(mm

Model Power Voltage (input) Voltage (output) Application(Size)
R5 50W 115V-230V Double 12V + Double 9V 78×71×H43(mm)
50W 115V-230V Double 18V + Double 9V 80×68×40(mm)
50W 115V-230V Double 15V + Double 6V 80×68×40(mm
50W 115V-230V Double 18V 75×69×H41(mm)
50W 115V-230V Double 18V + Double 12V 79×68×39(mm)
50W 115V-230V Double 15V + Single 9V 80×68×40(mm)
50W 115V-230V Double 15V+ Double 9V 80×68×40(mm)
