Fixed Audiophile Grade Resistors 4ohm 4R Operating Temperature 25 - 125℃
Fixed Audiophile Grade Resistors 4ohm 4R Operating Temperature 25 - 125℃
Fixed Audiophile Grade Resistors 4ohm 4R Operating Temperature 25 - 125℃
Fixed Audiophile Grade Resistors 4ohm 4R Operating Temperature 25 - 125℃
Specifications
Brand Name :
Audio Resistors
Model Number :
4ohm 4R0 200W
Certification :
Rhos
Place of Origin :
China
MOQ :
Negotiable
Payment Terms :
Paypal, T/T, Western Union
Supply Ability :
1000pcs/month
Packaging Details :
Standard box
Operating Temperature: :
25-125℃
Color: :
gold
Type: :
fixed resistor
Resistance: :
4ohm
Rated Power: :
200W
Technology: :
Wirewound
Price :
Negotiable
Description

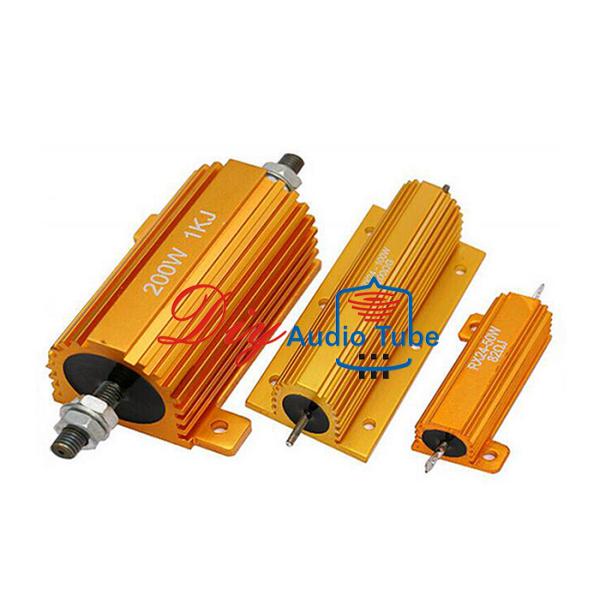

Audiophile Grade Resistors 4ohm 4R0 200W Watt Power Aluminum shell Wirewound metal resistor

Chief Characteristic:.
1.Use metal aluminum shell radiator.
2.Small value.
3.High power load. We can produce resistor 10ohm 10w.
4.Due to the adoption of silicone resin or silica sand encapsulation,the products with good insulation performance and the ideal thermal conductive function.
5.Suitable for cooling plate installation.

Chief Property Parameters:

Type Rated Power
(W)		 Resistance
Range
(Ω)		 Resistance Tolerance(％) ResistanceCoefficient(ppm/°C) Tolerant Voltage
(Vac RMS)
RX24 5 0.51-1.0K 1(F)

R≥10Ω : ±250

5Ω<R<10Ω:
±500
R≤5Ω :

 500V
10 0.51-1.5K 2(G)

1500V
25 0.51-8.2K 5(J )
50 0.51-20.0K 10(K) 2000V

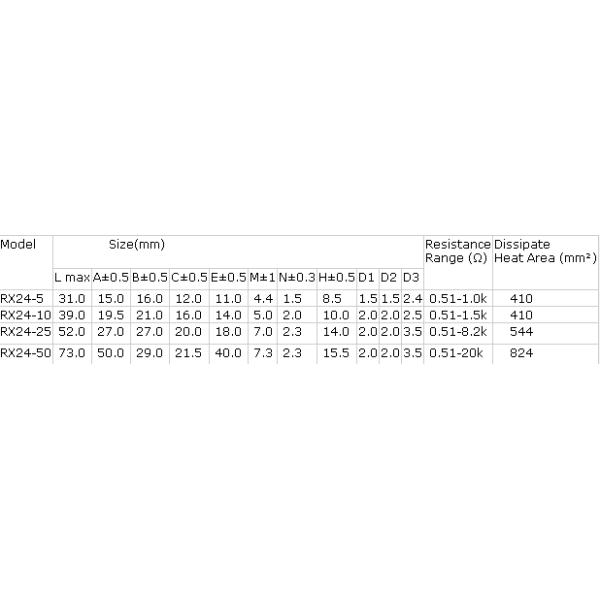

Structure Size:

Fixed Audiophile Grade Resistors 4ohm 4R Operating Temperature 25 - 125℃

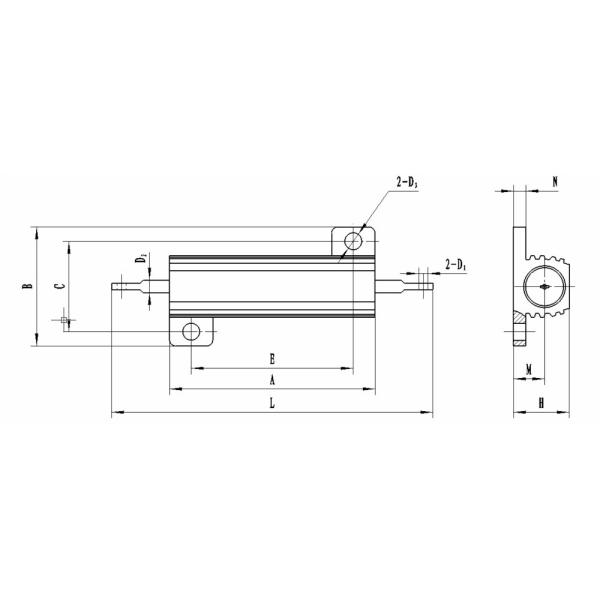

Contour Drawing:

Fixed Audiophile Grade Resistors 4ohm 4R Operating Temperature 25 - 125℃

Note:
When using the resistor, you should be equipped with the corresponding etalon of the heat radiator panels , if no equipped with, the power load should be cut in half.

We can produce resistor 10ohm 10w.

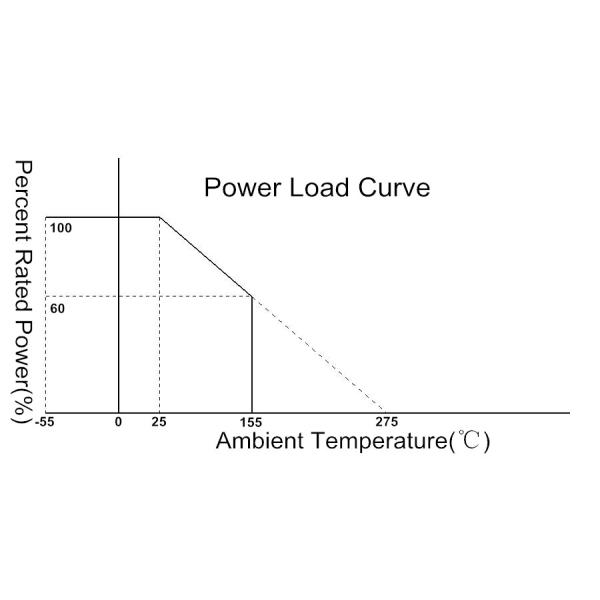

Power Derating Curve:

Fixed Audiophile Grade Resistors 4ohm 4R Operating Temperature 25 - 125℃

Applications scope:
1.Be able to use in the domain of the electric power,electric locomotive ,machine-electric equipment etc.
2.They are Perfect elements of the power absorption and load.
3.Principally used in electronic test equipment,high voltage switch, high voltage electric transport,large

power electrical, electronic specialized precision instrument, new type medical equipment manufacture and high voltage electrostatic precipitator etc


Other Details:
1.The resistor is used in DC or low frequency AC circuits.
2.We can provide the non-inductance resistor if it will be used in high frequency circuit.


Technology Standard:
1:GB/T 5729-2003
2:Q/QH 1637-2014

Fixed Audiophile Grade Resistors 4ohm 4R Operating Temperature 25 - 125℃
