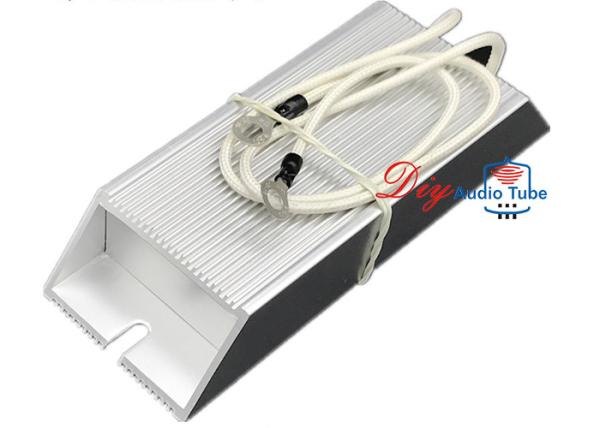

RX18 900w high power aluminum wirewound braking resistor for precharger
RX18 900w high power aluminum wirewound braking resistor for precharger
Specifications
Brand Name :
Aluminum Resistors
Model Number :
RX18
Certification :
Rhos
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Paypal, T/T, Western Union
Supply Ability :
1000pcs/month
Packaging Details :
Standard box
Technology: :
Wirewound
Risistance :
0.2-4K ohm
Rated Power: :
900w
Material: :
Alloy
Operating Temperature: :
-55℃~+375℃
Type: :
Fixed Resistor
Description

RX18 900w high power aluminum wirewound braking resistor for precharger

Features
Heat and flame resistant
Completely insulated character suitable for printed circuit board
Winding core replaced by metal oxide film cutting core (RS type) for high resistance value
Non-inductive type available on request


Characteristics :
Temperature coefficient: +/-300ppm/oC
Insulation resistance: >100M ohms

Load life (1000 hours): +/-2%, +0.05 ohm
Short-time overload: +/-2%, +0.05 ohm
Dielectric withstanding vollage: +/-1%, +0.05 ohm
Moisture resistance: +/-3%, +0.05 ohm
Shock and vibration: +/-1%, +0.05 ohm
Soldering heat: +/-1%, +0.05 ohm
Incombustibility: EX 16 times V, 5 minutes
