Cnc Hybrid Stepper Motor Nema 11 0.8nm 60mm For Automatic Control
Cnc Hybrid Stepper Motor Nema 11 0.8nm 60mm For Automatic Control
Cnc Hybrid Stepper Motor Nema 11 0.8nm 60mm For Automatic Control
Cnc Hybrid Stepper Motor Nema 11 0.8nm 60mm For Automatic Control
Cnc Hybrid Stepper Motor Nema 11 0.8nm 60mm For Automatic Control
Cnc Hybrid Stepper Motor Nema 11 0.8nm 60mm For Automatic Control
Specifications
Brand Name :
JIUQI
Model Number :
HB28-JQ-1
Certification :
RoHS,ISO9001
Place of Origin :
Jiangsu, China (Mainland)
MOQ :
100PCS
Price :
$4~$10/PCS
Payment Terms :
T/T, Western Union,paypal
Supply Ability :
200000 PCS/MONTH
Delivery Time :
Trial orders :2 WEEKS Bulk orders: within 3 weeks
Packaging Details :
with export carton . Bulk order with pallets
Step Angle :
1.8°
Motor size :
28mm
Current :
0.4A
Holding Torque :
0.17N.m
Phase :
2
Type :
Hybrid
Highlight :
Hybrid Stepper Motor,3D printer stepper motor,57MM NEMA 23 stepper motorr
PRODUCT NAME :
28MM HYBRID MOTOR
Description

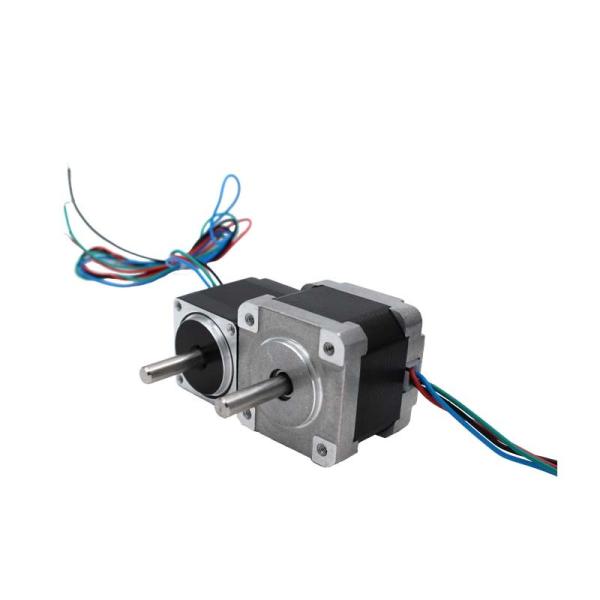

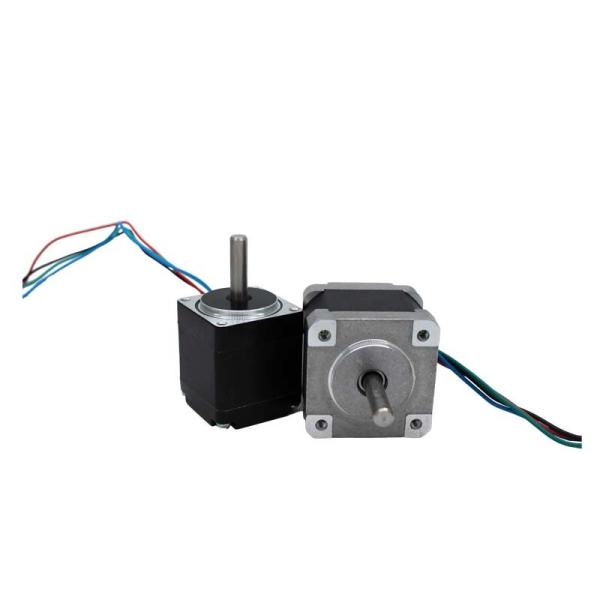

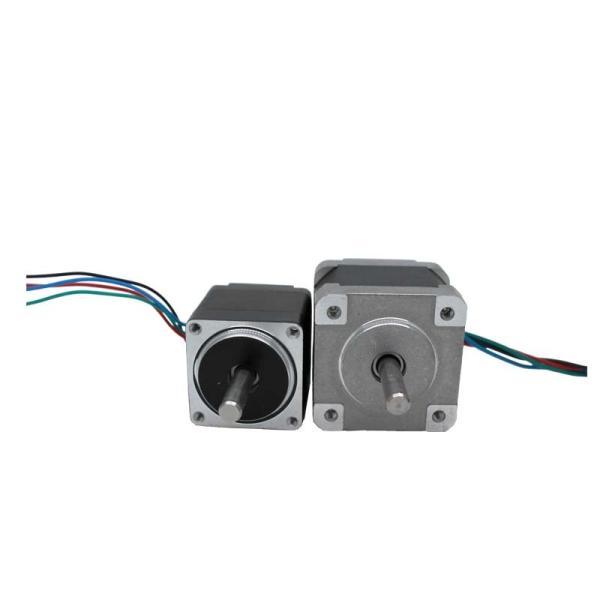

Nema 11 1.8 Degree 2 Phase Hybrid Stepper Motor For Automatic Control

Specification

PN Step angle Current Holding torque weight No. of leads Motor length
(°) A N.m kg 　 mm
HB28-JQ-1 1.8 0.4 0.17 0.15 4 26
HB28-JQ-2 1.8 0.25 0.2 0.2 6 31
HB28-JQ-3 1.8 1.8 0.28 0.24 4 38
HB28-JQ-4 1.8 0.9 0.4 0.34 6 50
HB28-JQ-5 1.8 1.8 0.8 0.5 4 60

Description :

  • Frame size 28MM
  • High step accuracy and resolution
  • Low vibration and noise
  • Can be customized for winding current, shaft options and cables and connectors.
  • Two-phase, three-phase and four-phase

Mechanical Dimension:MM

Cnc Hybrid Stepper Motor Nema 11 0.8nm 60mm For Automatic Control

Performance curve

Cnc Hybrid Stepper Motor Nema 11 0.8nm 60mm For Automatic Control

Typical Applications

· 3D Printer

· Monitoring Equipment

· Medical equipment

· office automationadvertising equipment

· advertising equipmen

· CNC Engraving Machine

Terms of trade

Terms of price FOB,CIF,CFR,EXW,DDP,etc.
Terms of payment 100% T/T in advance for samples
Bulk quantity payment way can be negotited
Warranty 12 months limited warranty once the items are delivered to the buyer.
Lead time Usually within 2 weeks for trial orders, within 3 weeks for bulk orders.
Package Cartons /Pallets
Place of loading Shanghai, Ningbo, etc.
Shipment carrier Items are usually shipped via Fedex,DHL, TNT,UPS,EMS
for trial orders and via vessel for bulk orders.
Delivery time Usually within 5 working days by Express 15-30 working days by vessel
