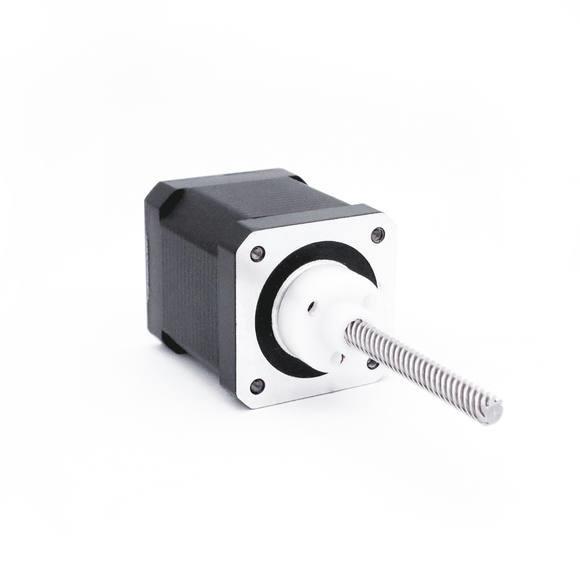

4 Wire Small Linear Stepper Motor 42BYGHL Micro Stepper Motor 2 Phase
4 Wire Small Linear Stepper Motor 42BYGHL Micro Stepper Motor 2 Phase
Specifications
Brand Name :
XM-Motor
Model Number :
42BYGHL
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
10000PCS
Price :
1~10 USD/PC
Payment Terms :
D/P,L/C,T/T
Supply Ability :
100000pcs/month
Delivery Time :
35DAYS
Packaging Details :
CTN OR CUSTOMIZED
Name :
Small Linear Stepper Motor
Material :
black or customized
size :
standard
packing :
CTN or customized
motor :
stepper motor
phase :
2~4
stepper motor :
4 Wire Stepper Motor
high torque :
small stepper motor high torque
Construction :
PM
Description

Stepper Linear Motor 42BYGHL Step Accuracy ± 5% Temperature Rise 80 ℃ Max. Insulation Resistance 100MΩ Min. @ 500 VDC Ambient Temperature -20℃ ~ +50℃ Dielectric Strength 500VA, 1 Minute

42BYGHL Product Technical Parameters

Product Feature Technical Parameter
Step Accuracy ± 5%
Temperature Rise 80 ℃ Max.
Insulation Resistance 100MΩ Min. @ 500 VDC
Ambient Temperature -20℃ ~ +50℃
Dielectric Strength 500VA, 1 minute
Max Radial Force 28N (20mm from front flange)
Max Axial Force 10N

Motor Technical Data

Model Step Angle (°/Step) Lead Wires (NO.) Voltage (V) Current (A/Phase) Resistance (Ω/Phase) Inductance (mH/Phase) Holding Torque (kg·cm) Body Height (mm) Weight (kg)
42BYGHL208-12A 1.8 4 12.0 0.4 30.0 42.0 2.6 34 0.20
42BYGHL613-03A 1.8 4 2.3 1.7 1.35 3.0 3.5 40 0.26
42BYGHL810-09 1.8 4 3.8 1.2 3
*The above are only representative products, and derivative products can be customized according to customer requirements.

Wiring Diagram and External View Drawing
