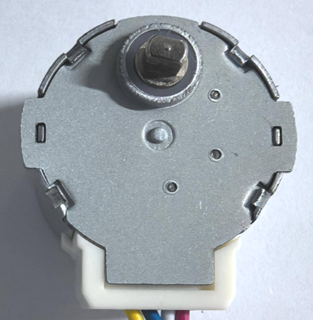

24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency
24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency
24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency
24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency
24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency
24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency
24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency
24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency
Specifications
Brand Name :
XM-Motor
Model Number :
24BYJ48
Certification :
ISO9001 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
1~6 USD/PC
Payment Terms :
T/T
Supply Ability :
200,000 PCS/month
Delivery Time :
20 to 30 days after receiving deposit
Packaging Details :
Carton
Step Angle :
（5.625°/64） /（11.25°/64）
Material :
Copper wire
Voltage :
12V / 5V DC
phase :
2~4
Resistance :
20~300Ω
Wire :
5
Application :
Fan,Air conditioner, Camera, Monitor, air conditioners, Intelligent sanitary, refrigerators, automatic door lock etc
Name :
24BYJ48 series Advanced Permanent Magnet Synchronous Motor for Refrigerator with High Output Torque and Efficiency
OEM :
Logo, wire, holes,parameters,gears
Description

24BYJ48 series Advanced Permanent Magnet Synchronous Motor for Refrigerator with High Output Torque and Efficiency

Product Introduction:

  • Model No: 24BYJ48
  • With same number of poles as the stator, the rotor is composed of permanent magnet material.
  • Features excellent dynamic performance and high output torque

24BYJ48 Series Specifications:

Model Voltage (V) Resistance (Ω) Step Angle (1-2P) /(2-2P) Frequency (PPS) Pull-in Torque(mN.m) Self-locating Torque(mN.m) No-loading pull-in frequency(PPS) No-loading pull-out frequency(PPS)
24BYJ48 5 20 (5.625°/64) /(11.25°/64) 100 ≥78.4 ≥34.3 ≥500 ≥900
12 50 (5.625°/64) /(11.25°/64) 500 ≥150 ≥49 ≥500 ≥900
12 70 (5.625°/64) /(11.25°/64) 500 ≥13 ≥49 ≥500 ≥900
12 200 (5.625°/64) /(11.25°/64) 400 ≥78.4 ≥34.3 ≥500 ≥900
12 70 (5.625°/16) /(11.25°/16) 400 ≥19.6 ≥19.6 ≥500 ≥900
12 70 (5.625°/32) /(11.25°/32) 400 ≥49 ≥19.6 ≥500 ≥900
12 50 (5.625°/37) /(11.25°/37) 500 ≥100 ≥34.3 ≥500 ≥900
24 200 (5.625°/64) /(11.25°/64) 400 ≥150 ≥34.3 ≥500 ≥900
24 300 (5.625°/64) /(11.25°/64) 400 ≥80 ≥34.3 ≥500 ≥900

Friendly Reminder:

The above 24BYJ48 series parameters are standard products, our company can do product design, development and production according to your special requirements. for more information, please email to bianwenhui@xingmaimotor.com

DIMENSIONS: mm

24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency

24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency

24BYJ48 Torque Curve:

24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency

24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency

24BYJ48 Series Applications:


• Home appliances: Air conditioners, Electric fans, Projectors,Cameras, Monitors etc.

24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency

24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency

Workshop :

24BYJ48 Series 12V/5V DC Permanent Magnet Synchronous Motor with 2~4 Phase and 20~300Ω Resistance for High Efficiency

Custom BYJ Stepper Motors Tailored to Your Specific Needs

  • Logo printing :as your need.
  • Specific wiring or connector solutions: embedded wires or bare wires for select.customize the connector type according to your specifications, ensuring a perfect fit for your application.
  • Holes Customization: Can specify the direction, size, and quantity of the installation holes to match your design.
  • Parameters customization: Voltage,Resistance, Inductance, Number of Phases, Step Angle, Torque.
  • Gear customization: Dupont plastic gears, powder metallurgy gears or POM clear powder gears for select.
