Specifications
Brand Name :
XM-Motor
Model Number :
24BYJ48
Certification :
ISO9001 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
1~6 USD/PC
Payment Terms :
T/T
Supply Ability :
200,000 PCS/month
Delivery Time :
20 to 30 days after receiving deposit
Packaging Details :
Carton
Step Angle :
（5.625°/64） /（11.25°/64）
Material :
Copper wire
Voltage :
12V / 5V DC
phase :
2~4
Resistance :
20~300Ω
Wire :
5
Application :
Fan,Air conditioner, Camera, Monitor, air conditioners, Intelligent sanitary, refrigerators, automatic door lock etc
Name :
20BYJ48 DC Fan Motor Mini Stepper Motor Stepping Motor for automatic products
OEM :
Logo, wire, holes,parameters,gears etc
Description

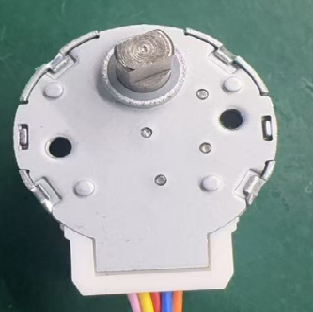

20BYJ48 DC Fan Motor Mini Stepper Motor Stepping Motor for automatic products

Product Introduction:

  • Model No: 24BYJ48
  • With same number of poles as the stator, the rotor is composed of permanent magnet material.
  • Features excellent dynamic performance and high output torque

24BYJ48 Stepper Motor Datasheets:

Model Voltage(V) Resistance(Ω) Step Angle (1-2P) /(2-2P) Frequency(PPS) Pull-in Torque(mN.m) Self-locating Torque(mN.m) No-loading pull-in frequency(PPS) No-loading pull-out frequency(PPS)
24BYJ48 5 20 (5.625°/64) /(11.25°/64) 100 ≥78.4 ≥34.3 ≥500 ≥900
12 50 (5.625°/64) /(11.25°/64) 500 ≥150 ≥49 ≥500 ≥900
12 70 (5.625°/64) /(11.25°/64) 500 ≥13 ≥49 ≥500 ≥900
12 200 (5.625°/64) /(11.25°/64) 400 ≥78.4 ≥34.3 ≥500 ≥900
12 70 (5.625°/16) /(11.25°/16) 400 ≥19.6 ≥19.6 ≥500 ≥900
12 70 (5.625°/32) /(11.25°/32) 400 ≥49 ≥19.6 ≥500 ≥900
12 50 (5.625°/37) /(11.25°/37) 500 ≥100 ≥34.3 ≥500 ≥900
24 200 (5.625°/64) /(11.25°/64) 400 ≥150 ≥34.3 ≥500 ≥900
24 300 (5.625°/64) /(11.25°/64) 400 ≥80 ≥34.3 ≥500 ≥900

Friendly Reminder:

The above 24BYJ48 series parameters are standard products, our company can do product design, development and production according to your special requirements. for more information, please email to bianwenhui@xingmaimotor.com

24BYJ48 DIMENSIONS: mm

Mini Stepper Motor DC Fan Motor for Automatic Products with High Output Torque and Precision ControlMini Stepper Motor DC Fan Motor for Automatic Products with High Output Torque and Precision ControlMini Stepper Motor DC Fan Motor for Automatic Products with High Output Torque and Precision Control

Mini Stepper Motor DC Fan Motor for Automatic Products with High Output Torque and Precision Control

24BYJ48 Stepper Motor Torque Curve:

Mini Stepper Motor DC Fan Motor for Automatic Products with High Output Torque and Precision ControlMini Stepper Motor DC Fan Motor for Automatic Products with High Output Torque and Precision ControlMini Stepper Motor DC Fan Motor for Automatic Products with High Output Torque and Precision ControlMini Stepper Motor DC Fan Motor for Automatic Products with High Output Torque and Precision ControlMini Stepper Motor DC Fan Motor for Automatic Products with High Output Torque and Precision Control

Mini Stepper Motor DC Fan Motor for Automatic Products with High Output Torque and Precision Control

24BYJ48 Series Applications:


• Home appliances: Air conditioners, Electric fans, Projectors,Cameras, Monitors etc.

Mini Stepper Motor DC Fan Motor for Automatic Products with High Output Torque and Precision ControlMini Stepper Motor DC Fan Motor for Automatic Products with High Output Torque and Precision Control

Mini Stepper Motor DC Fan Motor for Automatic Products with High Output Torque and Precision Control

Workshop :

Mini Stepper Motor DC Fan Motor for Automatic Products with High Output Torque and Precision Control

Custom BYJ Stepper Motors Tailored to Your Specific Needs

  • Logo printing :as your need.
  • Specific wiring or connector solutions: embedded wires or bare wires for select.customize the connector type according to your specifications, ensuring a perfect fit for your application.
  • Holes Customization: Can specify the direction, size, and quantity of the installation holes to match your design.
  • Parameters customization: Voltage,Resistance, Inductance, Number of Phases, Step Angle, Torque.
  • Gear customization: Dupont plastic gears, powder metallurgy gears or POM clear powder gears for select.

20BYJ48 DC Fan Motor Mini Stepper Motor Stepping Motor for automatic products
