12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor
12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor
12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor
12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor
12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor
12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor
12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor
12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor
Specifications
Brand Name :
XM-Motor
Model Number :
24BYJ48
Certification :
ISO9001 ROHS
Place of Origin :
China
MOQ :
5 pcs
Price :
0.5~6 USD/PC
Payment Terms :
T/T
Supply Ability :
200,000 PCS/month
Delivery Time :
20 to 30 days
Packaging Details :
Carton
Voltage :
12V 5V 24V 48V DC for select
Step Angle :
5.625° /64
Resistance :
20 to 300Ω select
Application :
Air guide, Air swing, air commutator,hvac parts
Name :
12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor
Service :
OEM & ODM
key workds :
12V 24V 5V DC Mini Small Micro Permanent Magnet Synchronous Geared Stepper Motors
Warranty :
12 months
Inner package :
Anti-static bag+foam fixed
Description

12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor

Introduction and Applications of 24BYJ48 Mini Stepper Motor

The 24BYJ48 is a widely used permanent magnet geared stepper motor, featuring compact structure, high precision and stable
low-speed operation, which makes it suitable for various small-scale motion control scenarios.

1. Model Definition

  • 24: Indicates the motor’s outer diameter is 24 mm
  • B: Abbreviation for stepper motor
  • Y: Represents permanent magnet type
  • J: Stands for geared configuration
  • 48: Means 4-phase 8-step working mode

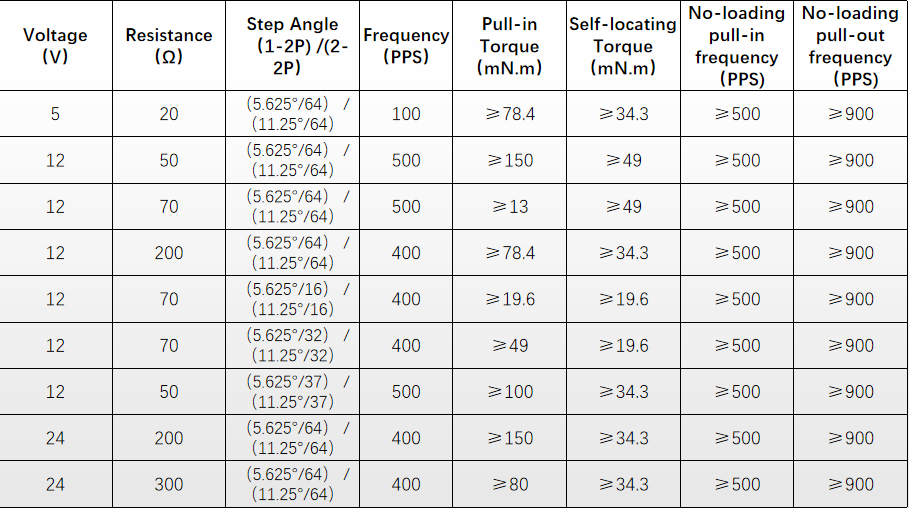

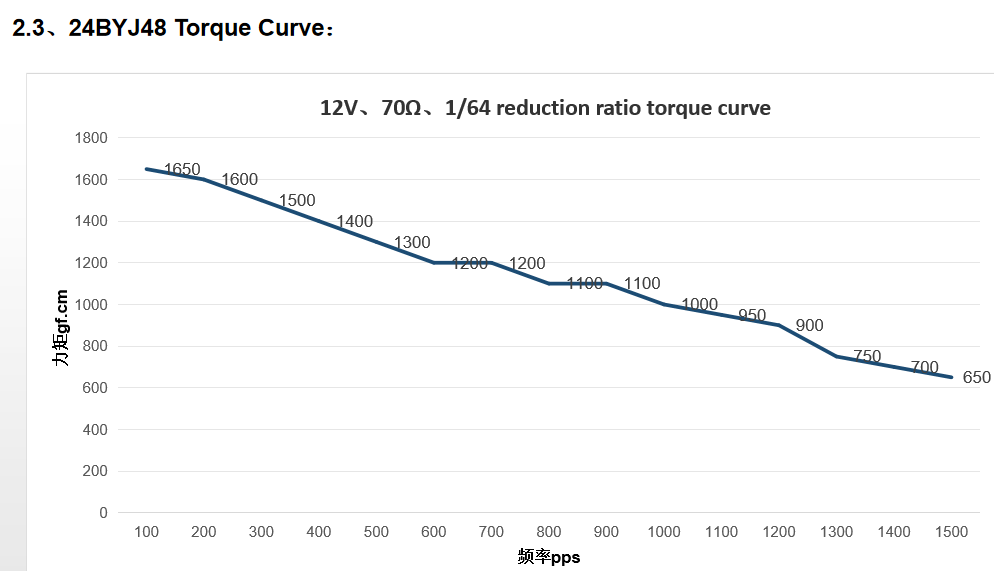

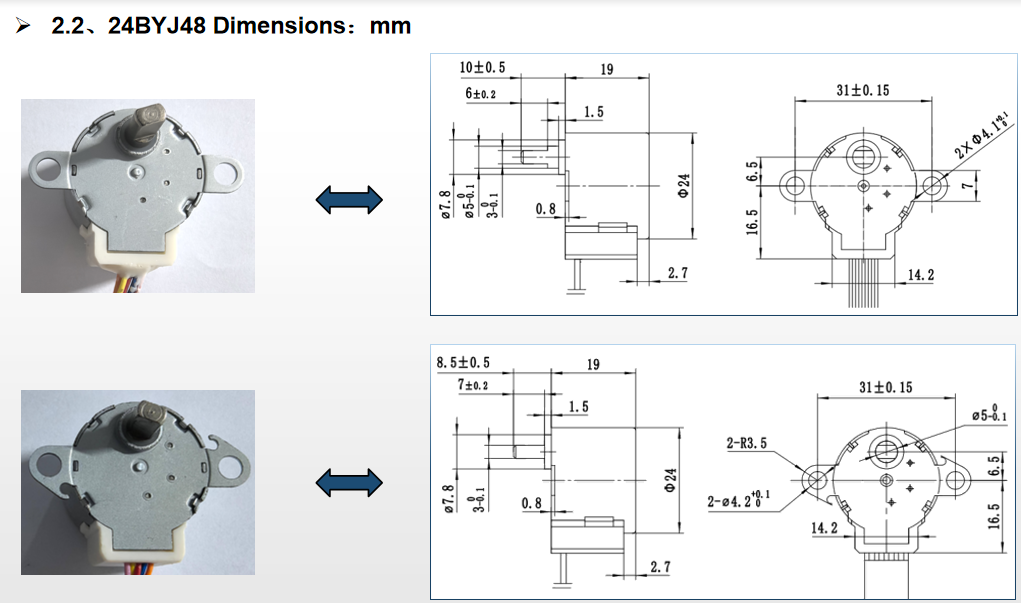

24BYJ48 Series Paramenters:

12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor

12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor

2. Structural & Electrical Characteristics

  • Structural Features: Equipped with 24 magnetic poles and 48 teeth, the motor boasts a compact size, light weight, high resolution and excellent positioning accuracy.
  • Electrical Parameters: Common rated voltages are 5V and 12V. For the 5V version, the typical coil resistance is 60Ω; for the 12V version, resistance values range from 200Ω to 300Ω. The step angle is 5.625°/64, and the insulation class is Grade E.
  • Performance Advantages: The standard model (e.g., 24BYJ48-2002) delivers stable low-speed operation with low noise. The upgraded model (24BYJ48-S) offers higher resolution, improved precision and enhanced holding torque.
  • Drive Mode: Adopts 1-2 phase excitation unipolar drive; the rotation angle and speed can be precisely controlled by adjusting pulse signals.

3. Typical Applications

  1. Smart Home Appliances
    • Air conditioner air deflector adjustment
    • Refrigerator damper control
    • Smart toilet cover opening/closing and flushing system
    • Projector lens focusing and zooming
    • Air purifier airspeed regulation
  2. Industrial & Security Equipment
    • PTZ rotation of surveillance cameras for angle adjustment
    • Positioning and aiming systems in security monitoring devices
  3. Office Automation
    • Paper feeding and component positioning in printers and copiers
  4. Medical Devices
    • Sample conveying mechanisms in small precision testing instruments (especially for the upgraded 24BYJ48-S model with higher accuracy requirements)

Applications:12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor

12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor

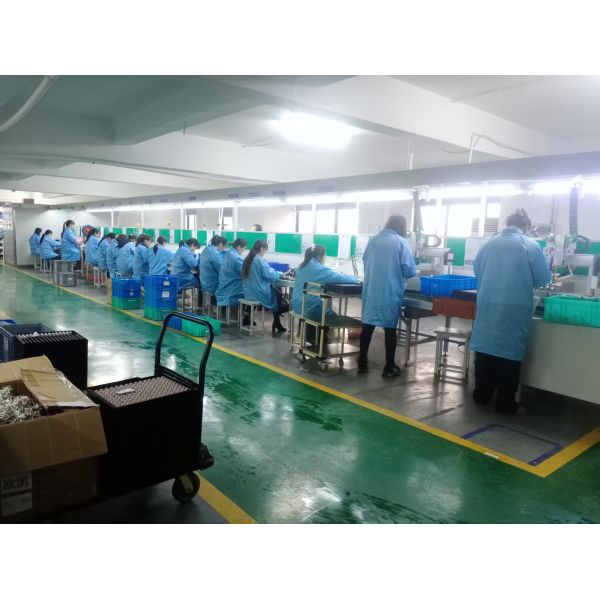

Work shop:

12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor

Core Selling Points of 24BYJ48 Mini Stepper Motor

  1. Ultra-Compact & Lightweight Design With an outer diameter of only 24mm, the motor features a space-saving structure that fits seamlessly into small-sized equipment (e.g., smart home devices, mini medical instruments) without compromising installation flexibility.
  2. High Precision & Stable Motion Control Boasting a step angle of 5.625°/64 and 4-phase 8-step operation, it delivers accurate positioning and smooth low-speed rotation with minimal noise, ideal for scenarios requiring precise displacement adjustment.
  3. Flexible Voltage Compatibility Available in 5V and 12V rated voltage versions with matched coil resistance (60Ω for 5V, 200–300Ω for 12V), it adapts to diverse power supply configurations of consumer and industrial equipment.
  4. Reliable Unipolar Drive System Adopts mature 1-2 phase excitation unipolar drive mode, which is easy to match with mainstream stepper motor drivers, reducing R&D and integration costs for equipment manufacturers.
  5. Wide-Range Adaptability Across Industries Suitable for smart home, security, office automation and medical sectors; the upgraded 24BYJ48-S model further enhances holding torque and resolution for high-precision application scenarios.
  6. Cost-Effective & Durable Performance
  7. Built with high-quality permanent magnet materials and precision gear components, it offers long service life and stable operation at a competitive price point, maximizing cost-performance for bulk procurement.

  8. Custom BYJ Stepper Motors Tailored to Your Specific Needs

  9. Logo printing :as your need.
  11. Specific wiring or connector solutions: embedded wires or bare wires for select.customize the connector type according to your specifications, ensuring a perfect fit for your application.
  13. Holes Customization: Can specify the direction, size, and quantity of the installation holes to match your design.
  15. Parameters customization: Voltage,Resistance, Inductance, Number of Phases, Step Angle, Torque.
  17. Gear customization: Dupont plastic gears, powder metallurgy gears or POM clear powder gears for select.
  19. 12V 24V 5V DC Mini Small Micro Permanent Magnet Synchronous Geared Stepper Motors

Samples:

12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor12V 24V 5V DC PM Linear Small Permanent Magnet Stepper Motor
