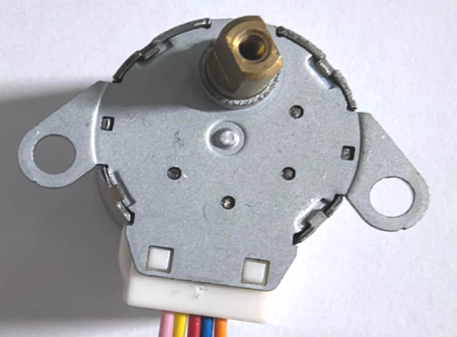

28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications
28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications
28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications
28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications
28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications
28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications
28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications
28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications
Specifications
Brand Name :
XM-Motor
Model Number :
24BYJ48
Certification :
ISO9001 ROHS
Place of Origin :
China
MOQ :
500 pcs
Price :
0.8~6 USD/PC
Payment Terms :
T/T
Supply Ability :
200,000 PCS/month
Delivery Time :
20 to 30 days after receiving deposit
Packaging Details :
Carton
Step Angle :
5.625° /64
Material :
Copper coil
Phase :
2 or 4
Diameter :
24mm
Resistance :
20~300Ω
Name :
28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications
Warranty :
12 months
Sample time :
7 days
Package :
anti-static bag+foam fixed
Description

28BYJ-48 12V Geared Stepper Motor

BYJ stepper motor features:

1. High and low temperature resistance -40°C to 140°C. Lifespan over 10,000 hours.

2. Noise level as low as 40 dbs.

3. Anti-interference, unaffected by external factors and step loss.

4. Low-speed: 1 to 40 revolutions per minute.

The reasons to Select Xingmai Motor:

1. Salt spray (corrosion resistance) up to 8 hours
2. Working life over 10,000 hours
3. Low noise, below 40 decibels
4. High-temperature resistance, working temperature 80-90 degrees.
5. High-performance neodymium iron boron (rare earth) magnets, smaller size, light weight, and strong magnetic properties.

24BYJ-48 Stepper Motor Datasheets:

Model Voltage(V) Resistance(Ω) Step Angle (1-2P) /(2-2P) Frequency(PPS) Pull-in Torque(mN.m) Self-locating Torque(mN.m) No-loading pull-in frequency(PPS) No-loading pull-out frequency(PPS)
24BYJ48 5 20 (5.625°/64) /(11.25°/64) 100 ≥78.4 ≥34.3 ≥500 ≥900
12 50 (5.625°/64) /(11.25°/64) 500 ≥150 ≥49 ≥500 ≥900
12 70 (5.625°/64) /(11.25°/64) 500 ≥13 ≥49 ≥500 ≥900
12 200 (5.625°/64) /(11.25°/64) 400 ≥78.4 ≥34.3 ≥500 ≥900
12 70 (5.625°/16) /(11.25°/16) 400 ≥19.6 ≥19.6 ≥500 ≥900
12 70 (5.625°/32) /(11.25°/32) 400 ≥49 ≥19.6 ≥500 ≥900
12 50 (5.625°/37) /(11.25°/37) 500 ≥100 ≥34.3 ≥500 ≥900
24 200 (5.625°/64) /(11.25°/64) 400 ≥150 ≥34.3 ≥500 ≥900
24 300 (5.625°/64) /(11.25°/64) 400 ≥80 ≥34.3 ≥500 ≥900

Applications:
Smart Home: Curtain motors, air conditioner fan blades, smart door locks, etc.
Office Equipment: Printer paper feed, scanner platform movement.
Consumer Electronics: DVD drives, camera pan/tilts, vending machine knobs.
Teaching Experiments: As an entry-level stepper motor, it is often used in microcontroller control teaching.

Voltage, resistance, cable length, shaft length (flattened position), reduction ratio, and terminals are customizable.

24BYJ-48 DIMENSIONS: mm

28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications

28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications

24BYJ-48 Stepper Motor Torque Curve:

28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications

28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications

24BYJ-48 Series Applications:

28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications

28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications

Workshop :

28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications

Features: step accuracy and resolution. low vibration and noise.

Stable performances, efficiency; Excellent quality and long service life.

Widely used on fan, warm air blower, electric heaters, burn oven, stage lighting equipment, microwave oven, Christmas and other kind of electrical appliances.

This reducer motor features a 4 phase 5 wire configuration, ensuring stable performances and durability with its excellent quality ABS.

Low noise meets step resolution, making it essential component for driven task.

Part of 24BYJ48 :

28BYJ-48 Geared Stepper Motor with 5.625° Step Angle Customizable for Smart Home Applications
