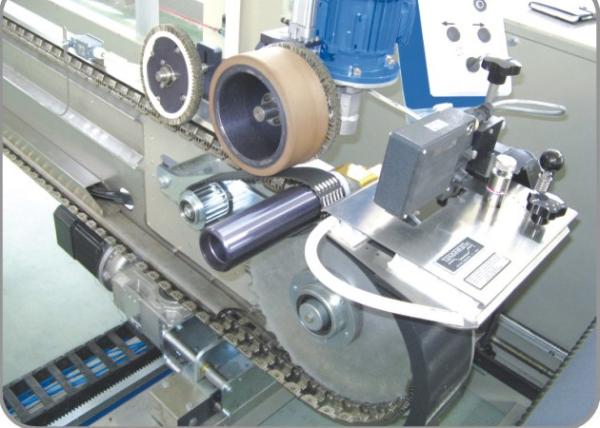

High Sensibility Open Width Compacting Machine PLC Control With Touch Screen
High Sensibility Open Width Compacting Machine PLC Control With Touch Screen
Specifications
Brand Name :
VIROCK
Model Number :
VK801
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T
Supply Ability :
4 sets per month
Delivery Time :
60-90 days
Packaging Details :
polywood case
Machine design speed :
2-40m/min
Entry way :
open-width
Automatic Grade :
Automatic
Felt brand :
ALBANY
Garranty :
1 year
After-sale service :
Service is Available
Voltage :
380V
Chain type :
Vertical
Description

Humanism design Open width Compactor , Shrinkage controlled , Open width entry

1. Applications:

It is applied for open knitted fabrics. The knitting fabrics which are shrunk by the machine an reach a satisfactory pre-shrinkage and brightness effect. The fabrics also could get better hand feeling and stable dimension.

Possibility to treat all types of knitted fabrics, 100% cotton (jersey, piquet, fleece etc.), interlock, viscose, blended cotton-synthetic fabrics or 100% synthetic fabrics (Lycra, polyester, etc.).

2. Process:

Open-width fabric entry → fabric tighten frame → disc screw thread spreading → initiative fabric feeding, crentring → down overfeed → spreading and weft correcting → upper overfeed → pinning → tentering (dewing, taping, drying ) → pin falling off → double felt compacting → belt conveying → open-width plaiting

3. Machine features:

  • These are felt calenders with twin compacting cylinders providing exceptional control over the dimensional stability of open-width knitted fabrics
  • Exclusive outfeed cooling system, with blower operating above and extractor beneath
  • Possibility of processing two items simultaneously
  • Machine controlled from PLC/touch-screen
  • TEMPERATURE UNIFORMITY: The exclusive heating cylinders system, allows an excellent working temperature control, guaranteeing an omogeneous and constant result
  • FABRICS MANAGEMENT DURING THE PROCESS: Fabrics tension management and control through high sensibility double load cells (programmable)
