Single / Double Drive Knitted Fabric Heat Setting Machine Two Bowl Padder
Single / Double Drive Knitted Fabric Heat Setting Machine Two Bowl Padder
Single / Double Drive Knitted Fabric Heat Setting Machine Two Bowl Padder
Single / Double Drive Knitted Fabric Heat Setting Machine Two Bowl Padder
Specifications
Brand Name :
VIROCK
Model Number :
VK-NM
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIABLE
Payment Terms :
L/C, T/T, D/A
Supply Ability :
4 sets per month
Delivery Time :
60-90 days
Packaging Details :
polywood case
Machine drive hand :
R/L
Main drive mode :
single/double drive
Place of exhaust pipe :
inside of the chambers
Weft straightner :
Mahlo/E+L/Chinese brand
Padder type :
two bowl padder
Padder rubber material :
NBR
Padder roller diameter :
400mm
Padder tuff size :
for 1 liter chemical
Description

Full-inverter controlled Stenter finishing machine , Easy operation & maintenance

1. Applications:

This machine is suitable for, Heat setting of fabric, Chemical Finishing on fabric, Drying of fabric (knitted or woven fabrics).

2. Technical specifications:

Machine Roller width: 1400-3800mm Fabric Working width:

1200-3600mm
Heat system:

oil/gas/steam

 Width adjustment range:

700-3600mm

Chambers quantity

 As required Max.Temperature of the chambers:

100-220℃
Fabric held by:

clip/pin/combined

 Air pressure: above 0.5mpa
Overfeed range:

-10% to 80%

 Installed power:

Approx 120Kw

3. Process:

Open width entry ---Fabric Centering device --- Two-bowl Padder ----Auto weft straightener--- Lower overfeeding screw expending ---Upper overfeeding --- Edge detecting --- Pinning on--- Chambers for heat setting ---Pinning off--- Air cooling --- End section --- Plaiting.

4. Feature:

1) Overfeed equipped with motor and gearbox.

2) Chain tension pneumatic controlled.

3) Uncurler with infrared feeler.

5. Machine advantages:

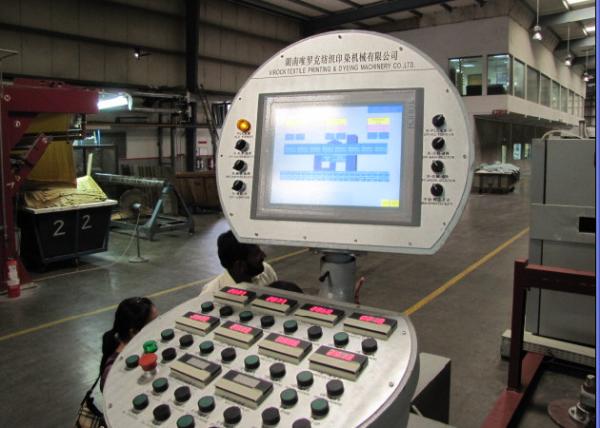

1) High quality and advanced Electrical Control system;

All the electrical control components are used international famous brand, such as Siemen/Mistubishi PLC and HMI, Mistubishi inverter, E+L selvedge tracing device and uncurler, Maxon Gas Burner etc.

2) High Efficiency Heat Exchanger or Gas burner ( Maxon, USA) was equipped, which can quickly heat up the chamber temperature to the set temperature, greatly reduced the dull time and achieve production efficiency.

3) High efficient overfeeding result can be reached.
