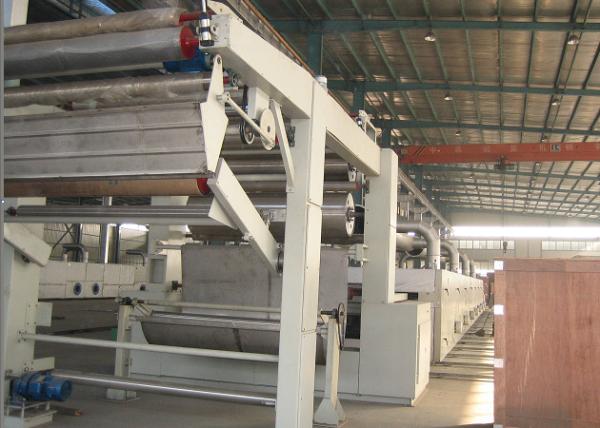

Simple Operation Textile Finishing Machine High Production 10-150m/Min
Simple Operation Textile Finishing Machine High Production 10-150m/Min
Specifications
Brand Name :
VIROCK
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIABLE
Payment Terms :
T/T
Supply Ability :
as required
Delivery Time :
90 days
Packaging Details :
wooden case
Design speed :
10-150m/min
Chamber quantity :
2-15 pcs
Heating source :
Optional
Padder type :
Finishing padder
Chemical tuff size :
1 L
Main driving motor capacity :
18.5Kw/22Kw
Warranty :
1 year from B/L
Exit type :
Plaiting/Batching
Description

Advanced woven textile finishing Machine , simple operation , easy maintenance

1. Machine Application:

This machine is applicable to extending and heat setting of fabrics, such as pure cotton which gram per square meter is 50-400, polyester cotton and other blended fabrics.

Equipped with mangle, it can also carry out other treatments like squeezing and resin padding.The machine is suitable for heat setting of fabric, Chemical Finishing especially on woven fabrics.

2. Main technical data:

Fabric width 1200mm-3600mm
Roller width 1400mm-3800mm
Padder mangle Finishing/Dyeing paddle
Padder roller quantity Two, Three
Padder roller dia 400mm
Chamber quantity 2-15 pcs
Guide roller diameter 125mm/150mm
Heating media Thermal oil/Natural gas/Steam/Electricity or any two combined
Pinning motor 0.75 Kw
Blower motor quantity in each chamber 4pcs
Exhaust Two, Three or Four

3. Feature advantages:

1) Temperature even: The temperature difference in each chamber is 2 degree.

2) High production: The air-volumn in each chamber is big, and the machine running speed is high.

3) High quality of finishing: The fabric is good hand-touch feeling.

4) Energy-saved: Gas consumption and power consumption is less.
