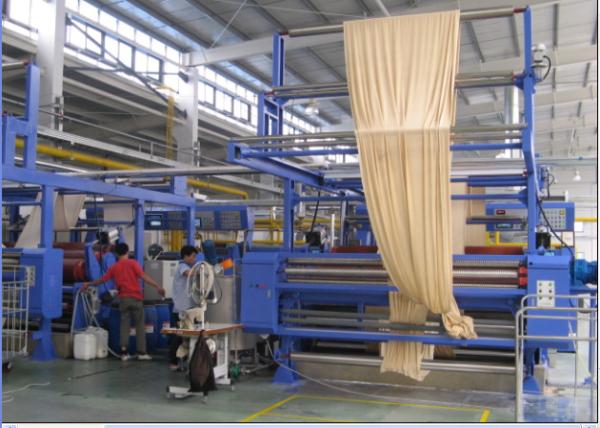

Fabric Stenter Machine , Stenter Finishing Machine Auto / Mechanical Weft Straightner
Fabric Stenter Machine , Stenter Finishing Machine Auto / Mechanical Weft Straightner
Specifications
Brand Name :
VIROCK
Model Number :
VK
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
1 SET
Price :
NEGOTIABLE
Payment Terms :
L/C, D/A, T/T
Supply Ability :
4 sets per month
Delivery Time :
60-90 days
Packaging Details :
Wooden case
Width adjusting range :
1200mm-3600mm
Height of entry frame :
6m
Fabric entry way :
trolley/roller
Color of the machine :
Optional
Weft straightner :
Auto/Mechanical
Center guider type :
Photoelectric
J-scray capacity :
500m dry fabric
Installation capacity :
Approx. 120Kw
Description

Advanced technology Heat setting Stenter , High evaporation , Energy saving


1. Description:

The Virock stenter is very high efficient, high reliability. It can reach optimum results and maximum output. The machine scientific design and well studied execution ensures effecient air flow, considerably reducing the energy consumption. It is equipped with advanced technology for optimum energy efficiency and quality of production.



2. Main Features:

1)The Stenters are equipped with very efficient uncurler device and infrared edge detecting device which ensuring the fabric get pinning-on accurately , and machine can run smoothly at high speeds exceeding 100 meters per minute.

2) The simple and accurate overfeeding system using Variable Frequency Drives with AC Geared Motors ensures perfect and precise Over-feed control as required by the fabric. The simple design makes easy maintenance. The fabric tension and selvedge tension rollers are driven individually.

3) Two types of rail. One is seasoned cast iron chain rail, which provide support to the moving pin clip chain. They are strong and distortion free even when operating at high operating temperatures and at high speed.

3. Main technical data:

Fabric width 1200mm-3600mm
Roller width 1400mm-3800mm
Padder mangle Finishing/Dyeing paddle
Padder roller quantity Two, Three
Padder roller dia 400mm
Chamber quantity 2-15 pcs
Guide roller diameter 125mm/150mm
Heating media Thermal oil/Natural gas/Steam/Electricity or any two combined
Pinning motor 0.75 Kw
Blower motor quantity in each chamber 4pcs
Exhaust Two, Three or Four
