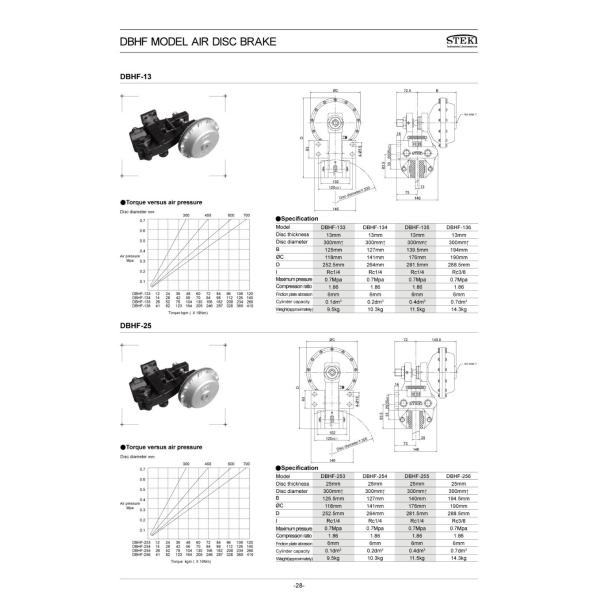

STEKI 2018 DBHF Model Air Disc Brake with 13mm Thickness and 1.86 Compression Ratio
STEKI 2018 DBHF Model Air Disc Brake with 13mm Thickness and 1.86 Compression Ratio
STEKI 2018 DBHF Model Air Disc Brake with 13mm Thickness and 1.86 Compression Ratio
STEKI 2018 DBHF Model Air Disc Brake with 13mm Thickness and 1.86 Compression Ratio
STEKI 2018 DBHF Model Air Disc Brake with 13mm Thickness and 1.86 Compression Ratio
STEKI 2018 DBHF Model Air Disc Brake with 13mm Thickness and 1.86 Compression Ratio
STEKI 2018 DBHF Model Air Disc Brake with 13mm Thickness and 1.86 Compression Ratio
STEKI 2018 DBHF Model Air Disc Brake with 13mm Thickness and 1.86 Compression Ratio
STEKI 2018 DBHF Model Air Disc Brake with 13mm Thickness and 1.86 Compression Ratio
STEKI 2018 DBHF Model Air Disc Brake with 13mm Thickness and 1.86 Compression Ratio
Specifications
Place of Origin :
Taiwan, China
Brand Name :
STEKI
Model Number :
DBHF
air disc brake Model Number :
DBHF-133
air disc brake type: :
Horizontal
air disc brake colour: :
white,Black
airdisc brake thickness: :
13mm
air disc brake diameter: :
>300mm
air disc brake weight: :
9.5kg
air disc brake Max air pressure: :
0.7Mpa
airdisc brake compression ratio: :
1.86
air disc brake Friction pad abrasion: :
6mm
air disc brake Warranty: :
12 months
Packaging Details :
Packaging: Carton or wooden case, or according to customers' demands
Delivery Detail: 15 days after payment arrived
Port :
Shanghai or Fuzhou
Supply Ability :
500 Piece/Pieces per Month customized air disc brake abouts 20 days
Price :
$112.00 - $299.00/pieces
Description

Specifications

DBHF air disc brake

1.Technology & material from Taiwan
2.Manufacture with 30 years' experience

3.OEM available

DBH Air Disc Brake

Introduction;

DBH/DBG series is mainly powered by braking oil, and can also be powered by air-actuated matched hydraulic booster. It has 2 types, right (model R)and left (model L). Please indicated right or left before giving your order. The ordinary braking fluid is required (DOT3, DOT4 or above), if you are going to use mineral oil, please inform us in advance.

Note: "R" model, namely does move the source to enter by right, the graphical representation is "R".

"L" model, namely does move the source to enter by left.

This type of brake is for horizontal installation, which can provide approximately 2 times braking powder than that of vertical installation. It adds the expandable shrapnel to guarantee the brake balance, in which brake disc thickness also covers from 10mm to 20mm.
