3.1mm Green Powder Coated Steel Grating for Safety Protection
3.1mm Green Powder Coated Steel Grating for Safety Protection
3.1mm Green Powder Coated Steel Grating for Safety Protection
3.1mm Green Powder Coated Steel Grating for Safety Protection
3.1mm Green Powder Coated Steel Grating for Safety Protection
3.1mm Green Powder Coated Steel Grating for Safety Protection
Specifications
Brand Name :
HS
Model Number :
2508001
Certification :
ISO
Place of Origin :
China
MOQ :
50PCS
Price :
USD22.1~USD28.3
Payment Terms :
T/T
Supply Ability :
80000pcs/Month
Delivery Time :
7-11days
Packaging Details :
In pallet,In bulk,In Container
Product Name :
Green Color Powder Coated Steel Grating for safety protection
Key word :
Steel bar grating
Material :
Mild steel & Low carbon steel,Like Q235/Q235B/Q345/Q345B/Q195/St37/St42/St37 etc
Surface treatment condition :
Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
Material Standard :
ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,Mild steel & Low carbon steel, etc
Grating Style :
Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Color :
Green,Blue,White,Red etc
Bearing Bar (Width x Thickness) :
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc
Bearing Bar Pitch :
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
Twisted Cross Bar Pitch :
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Size /Dimension :
1m*2m,1.5m*3m,2m*5m or Accept Custom
Package :
In strong pallet,In wooden case
Application :
Safety protection,platforms, walkways, bridges,ditches, covers,wells, fences, etc
Surface Quality :
Smoothly,anti-rust,anti-corrosion,Long time use
Sample :
Free supply and confirm quality
Use time :
Above 60years
Description

3.1mm Thicknkess Green Color Powder Coated Steel Grating for safety protection

Powder Coated Steel Grating Description:

Powder Coated Steel Grating is with high tensile and firm structure is made up of carbon steel,aluminium steel,

or stainless steel.According to the manufacturing methods,it can be divided into four types:welded,press-locked,

swage-locked and riveted grating.

According to the surface shapes,it can be divided into smooth and serrated gratings.With various styles and sizes

for choice.

Surface through hot dipped galvanized and powder coating,make sure strong anti-rust and anti-corrosion. It can use

above 60years time use without any quality problem.

Widely use in safety protection project.

Powder Coated Steel Grating details list:

Product Name Powder Coated Steel Grating
Material Mild steel & Low carbon steel,Like Q235/Q235B/Q345/Q345B/Q195/St37/St42/St37 etc
Surface Treatment Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
Material Standard ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,Mild steel & Low carbon steel, etc
Grating Style Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Color Green,Blue,White,Red etc
Bearing Bar (Width x Thickness) 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Size /Dimension 1m*2m,1.5m*3m,2m*5m or Accept Custom
Package In strong pallet,In wooden case
Application Safety protection,platforms, walkways, bridges,ditches, covers,wells, fences, etc
Surface Quality Smoothly,anti-rust,anti-corrosion,Long time use
Sample Free supply and confirm quality
Use time Above 60years
Powder Coated Steel Grating Good Advantages:
1.High quality carbon steel materials are used for hot galvanizing, cold galvanizing, painting and other treatments,
with high strength and toughness and long service life.
2.It supports customization according to drawings or requirements, and step steel grating, special-shaped steel grating,
plug-in steel grating can be made.
3.High voltage resistance pressure welding machine shall be used, with solid welding, neat welding junctions and free cutting.
4.Long time use,save cost
5.Easy install and fast install well,Beautiful surface.
Powder Coated Steel Grating Export package:
(1). Binding in steel belt,then In bulk
(2). Some pieces binding in one bundle,Like 20pcs,30pcs,50pcs,then In strong pallet
(3). Load in strong wooden case
(4). Same as clients' required

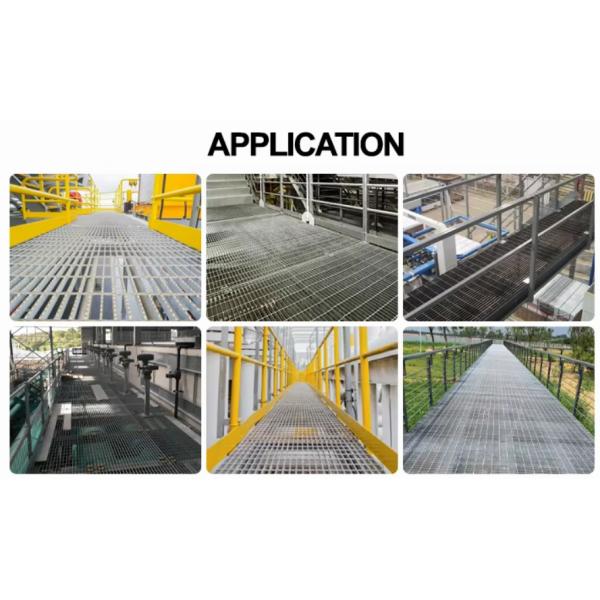

Powder Coated Steel Grating Application:
Widely use for safety protection,power station, shipbuilding, chemical and general industrial plant, municipal construction and
other industries.
3.1mm Green Powder Coated Steel Grating for Safety Protection

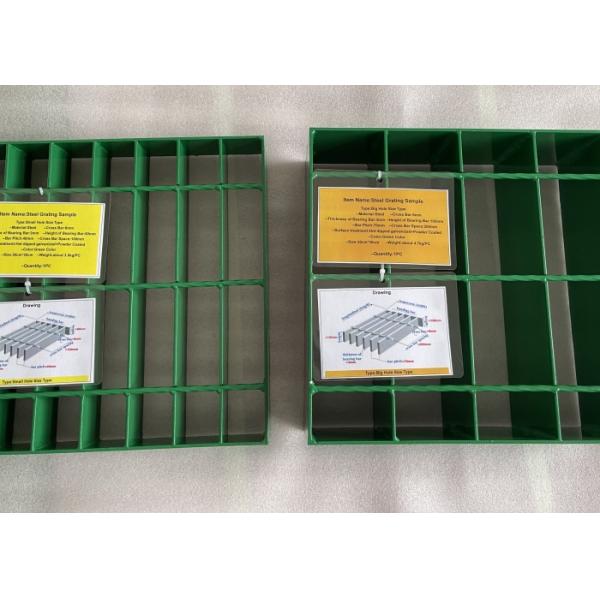

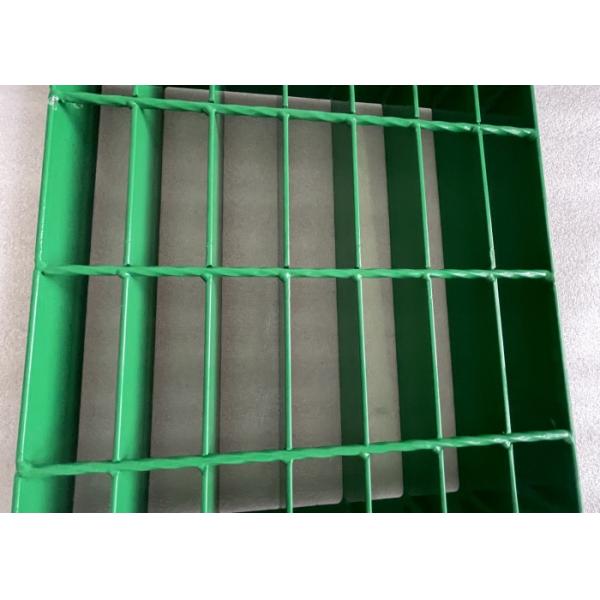

Show our Powder Coated Steel Grating product:
3.1mm Green Powder Coated Steel Grating for Safety Protection
3.1mm Green Powder Coated Steel Grating for Safety Protection
