50mm Green Powder Coated Steel Grating for Power Stations
50mm Green Powder Coated Steel Grating for Power Stations
50mm Green Powder Coated Steel Grating for Power Stations
50mm Green Powder Coated Steel Grating for Power Stations
50mm Green Powder Coated Steel Grating for Power Stations
50mm Green Powder Coated Steel Grating for Power Stations
Specifications
Brand Name :
HS
Model Number :
2508002
Certification :
ISO
Place of Origin :
China
MOQ :
50PCS
Price :
USD22.2~USD28.8
Payment Terms :
T/T
Supply Ability :
80000pcs/Month
Delivery Time :
7-11days
Packaging Details :
In pallet,In bulk,In Container
Product Name :
Green Color Powder Coated Steel Grating
Key word :
Steel grate
Material :
Mild steel & Low carbon steel,Like Q235/Q235B/Q345/Q345B/Q195/St37/St42/St37 etc
Material Standard :
ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,Mild steel & Low carbon steel, etc
Surface treatment condition :
Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
Color :
Green,Blue,White,Red etc
Grating Style :
Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Bearing Bar (Width x Thickness) :
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc
Bearing Bar Pitch :
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
Twisted Cross Bar Pitch :
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Package :
In strong pallet,In wooden case
Size /Dimension :
1m*2m,1.5m*3m,2m*5m or Accept Custom
Surface Quality :
Smoothly,anti-rust,anti-corrosion,Long time use
Application :
Safety protection,platforms, walkways, bridges,ditches, covers,wells, fences, etc
Use time :
Above 60years
Sample :
Free supply and confirm quality
Description

50mm Thicknkess Green Color Powder Coated Steel Grating for power station use

Powder Coated Steel Grating Description:

Powder Coated Steel Grating is with high tensile and firm structure is made up of carbon steel,aluminium steel,

or stainless steel.According to the manufacturing methods,it can be divided into four types:welded,press-locked,

swage-locked and riveted grating.

According to the surface shapes,it can be divided into smooth and serrated gratings.With various styles and sizes

for choice.

Surface through hot dipped galvanized and powder coating,make sure strong anti-rust and anti-corrosion. It can use

above 60years time use without any quality problem.Widely use in power station.

Powder Coated Steel Grating details list:

Product Name Powder Coated Steel Grating
Material Mild steel & Low carbon steel,Like Q235/Q235B/Q345/Q345B/Q195/St37/St42/St37 etc
Surface Treatment Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
Material Standard ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,Mild steel & Low carbon steel, etc
Grating Style Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Color Green,Blue,White,Red etc
Bearing Bar (Width x Thickness) 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Size /Dimension 1m*2m,1.5m*3m,2m*5m or Accept Custom
Package In strong pallet,In wooden case
Application Safety protection,platforms, walkways, bridges,ditches, covers,wells, fences, etc
Surface Quality Smoothly,anti-rust,anti-corrosion,Long time use
Sample Free supply and confirm quality
Use time Above 60years
Powder Coated Steel Grating Good Features:
  • New material
  • High grade quality
  • Uniform hole
  • Strong welded
  • Standard with and length
  • Shape can be rectangle or custom
  • Light weight,
  • High strength, Large carrying capacity,
  • Modern style,
  • Beautiful appearance,
  • Anti-slip safety,
  • Easy to clean,
  • Easy to install,
  • Long time use
Powder Coated Steel Grating Export package:
(1). Binding in steel belt,then In bulk
(2). Some pieces binding in one bundle,Like 20pcs,30pcs,50pcs,then In strong pallet
(3). Load in strong wooden case
(4). Same as clients' required
Powder Coated Steel Grating Application:
Widely use for power station,walkways,stairs treads,platforms,floors,wheeled equipment,srcuries screen,
fence,shipbuilding,municipal construction and other industries.
50mm Green Powder Coated Steel Grating for Power Stations

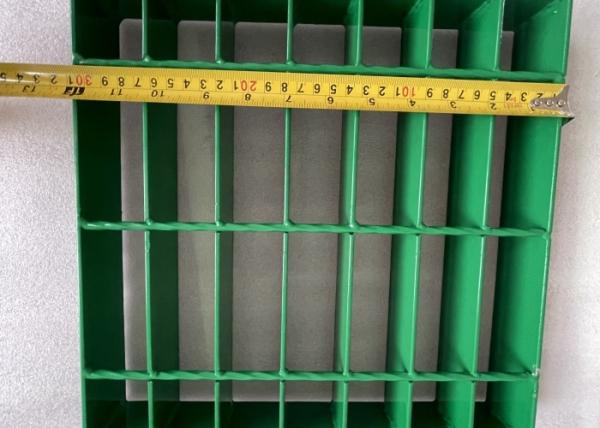

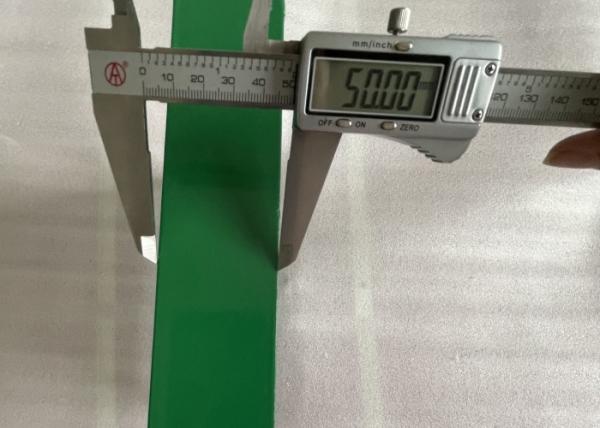

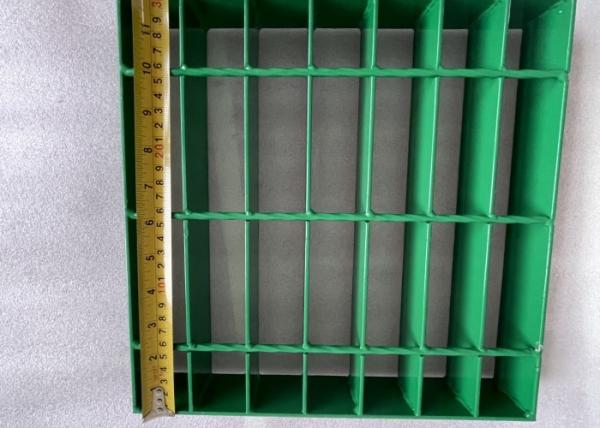

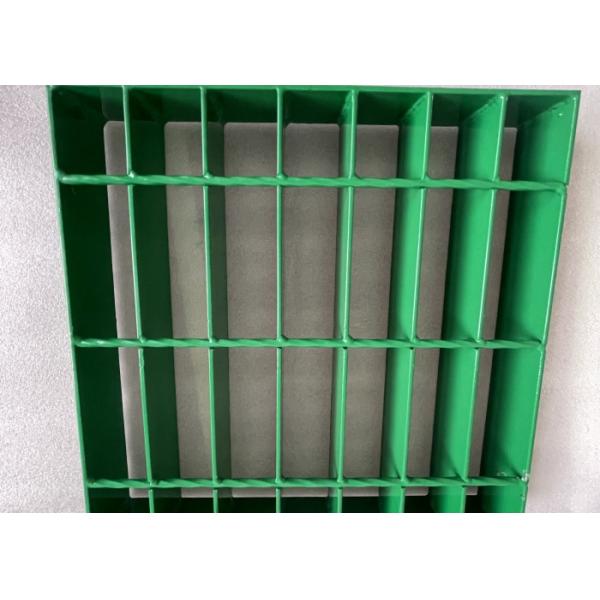

Show our Powder Coated Steel Grating product:
50mm Green Powder Coated Steel Grating for Power Stations
50mm Green Powder Coated Steel Grating for Power Stations
Our company:
50mm Green Powder Coated Steel Grating for Power Stations50mm Green Powder Coated Steel Grating for Power Stations
50mm Green Powder Coated Steel Grating for Power Stations50mm Green Powder Coated Steel Grating for Power Stations
