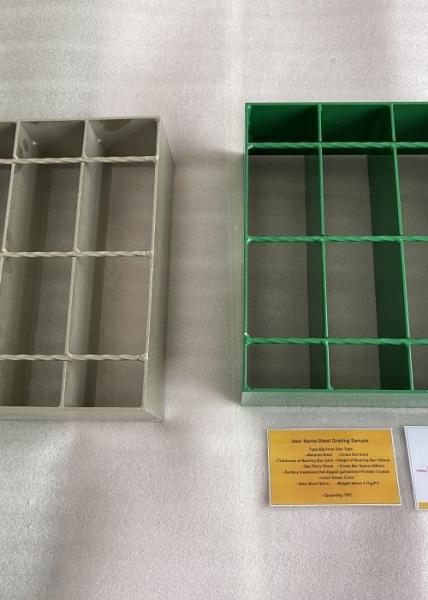

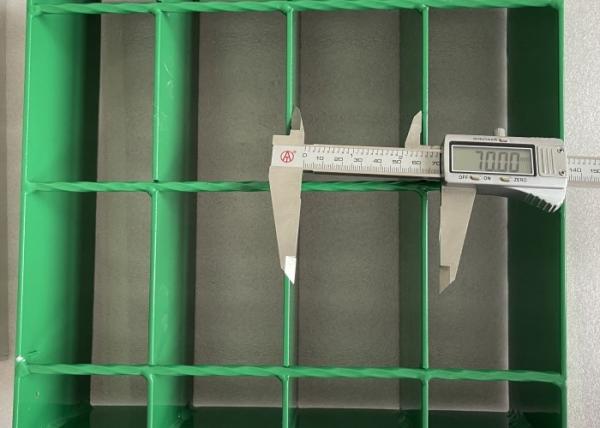

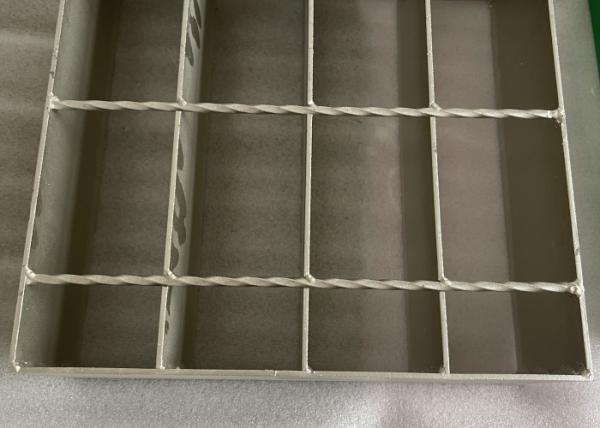

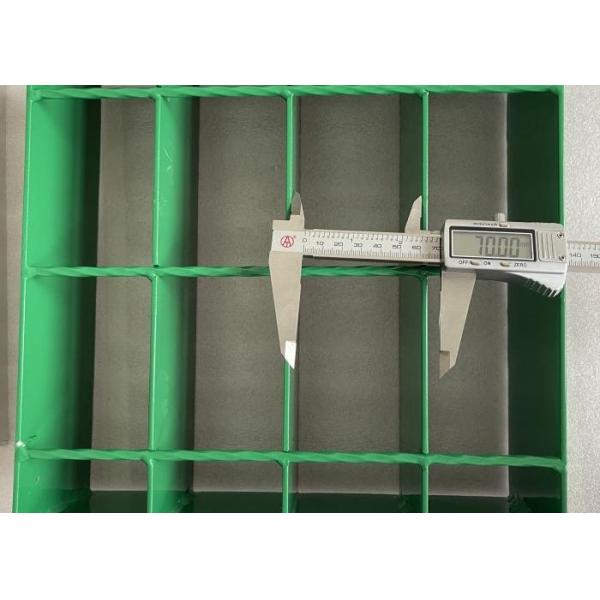

70mm Green Steel Bar Grating for Wall Safety Protection
70mm Green Steel Bar Grating for Wall Safety Protection
70mm Green Steel Bar Grating for Wall Safety Protection
70mm Green Steel Bar Grating for Wall Safety Protection
70mm Green Steel Bar Grating for Wall Safety Protection
70mm Green Steel Bar Grating for Wall Safety Protection
70mm Green Steel Bar Grating for Wall Safety Protection
70mm Green Steel Bar Grating for Wall Safety Protection
Specifications
Brand Name :
HS
Model Number :
2508009
Certification :
ISO
Place of Origin :
China
MOQ :
80PCS
Price :
USD25.1~USD29.3
Payment Terms :
T/T
Supply Ability :
80000pcs/Month
Delivery Time :
7-11days
Packaging Details :
In pallet,In bulk,In Container
Product Name :
70mm Big hole size Green Color Steel Bar Grating for Wall Safety Protection
Key word :
Steel Bar grate
Material Standard :
ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,Mild steel & Low carbon steel, etc
Material :
Mild steel & Low carbon steel,Like Q235/Q235B/Q345/Q345B/Q195/St37/St42/St37 etc
Color :
Original Color,Green,Blue,White,Red etc
Twisted Cross Bar Pitch :
38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Size /Dimension :
1m*2m,1.5m*3m,2m*5m or Accept Custom
Surface treatment condition :
Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
Bearing Bar Pitch :
12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc

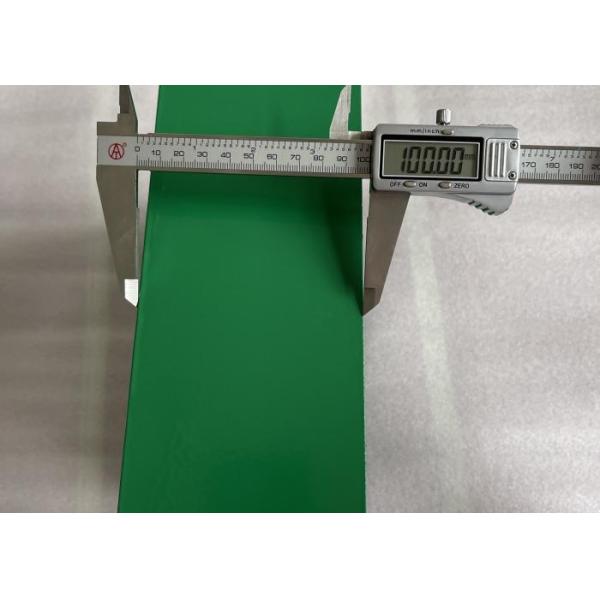

Bearing Bar (Width x Thickness) :
25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc
Package :
In strong pallet,In wooden case
Grating Style :
Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Surface Quality :
Smoothly,anti-rust,anti-corrosion,Long time use
Use time :
Above 60years
Sample :
Free supply and confirm quality
Application :
Safety protection,platforms, walkways, bridges,ditches, covers,wells, fences, etc
Description

70mm Big hole size Green Color Steel Grating for Wall Safety Protection


Steel Bar Grating Description:
Steel Bar Grating is with high tensile and firm structure is made up of carbon steel,aluminium steel,
or stainless steel.According to the manufacturing methods,it can be divided into four types:welded,
press-locked,swage-locked and riveted grating.According to the surface shapes,it can be divided
into smooth and serrated gratings.With various styles and sizes for choice.
Surface through hot dipped galvanized and powder coating,make sure strong anti-rust and
anti-corrosion. It can use long time use without any quality problem.Widely for fence safety use.

Steel Bar Grating details list:

Product Name Steel Bar Grating
Material Mild steel & Low carbon steel,Like Q235/Q235B/Q345/Q345B/Q195/St37/St42/St37 etc
Surface Treatment Untreated(black), Hot-dipped galvanized, Powder coated, Electroplate, Painting or as per customers' requirement.
Material Standard ASTM A36, A1011, A569, Q235, S275JR, Stainless steel 304/316,Mild steel & Low carbon steel, etc
Grating Style Plain / Smooth, Serrated / Teeth, I bar, Serrated I bar
Color Orignal Color,Green,Blue,White,Red etc
Bearing Bar (Width x Thickness) 25x3, 25x4, 25x4.5, 25x5, 30x3, 30x4, 30x4.5, 30x5, 32x5, 40x5, 50x5, 65x5, 75x6, 75x10…..100 x10mm etc
Bearing Bar Pitch 12.5, 15, 20, 23.85, 25, 30, 30.16, 30.3,32.5, 34.3, 35, 38.1, 40, 41.25, 60, 80mm etc
Twisted Cross Bar Pitch 38.1, 50, 60, 76, 80, 100, 101.6, 120mm, 2'' & 4'' etc
Size /Dimension 1m*2m,1.5m*3m,2m*5m or Accept Custom
Package In strong pallet,In wooden case
Application Safety protection,platforms, walkways, bridges,ditches, covers,wells, fences, etc
Surface Quality Smoothly,anti-rust,anti-corrosion,Long time use
Sample Free supply and confirm quality
Use time Above 60years
Steel Bar Grating Common Specification list:
70mm Green Steel Bar Grating for Wall Safety Protection
Steel Bar Grating different types can choose:
70mm Green Steel Bar Grating for Wall Safety Protection70mm Green Steel Bar Grating for Wall Safety Protection
Steel Bar Grating Good Features:
  • Good quality
  • New Material
  • Uniform hole size
  • Lowest tolerance
  • Strong welded point
  • Standard with and standard length
  • Smoothy surface
  • Beautiful appearance
  • Rectangle shape or custom shape
  • Light weight,heavy weight can choose
  • Strong strength
  • Large carrying capacity
  • Easy install and use
  • Long time use
  • Strong package

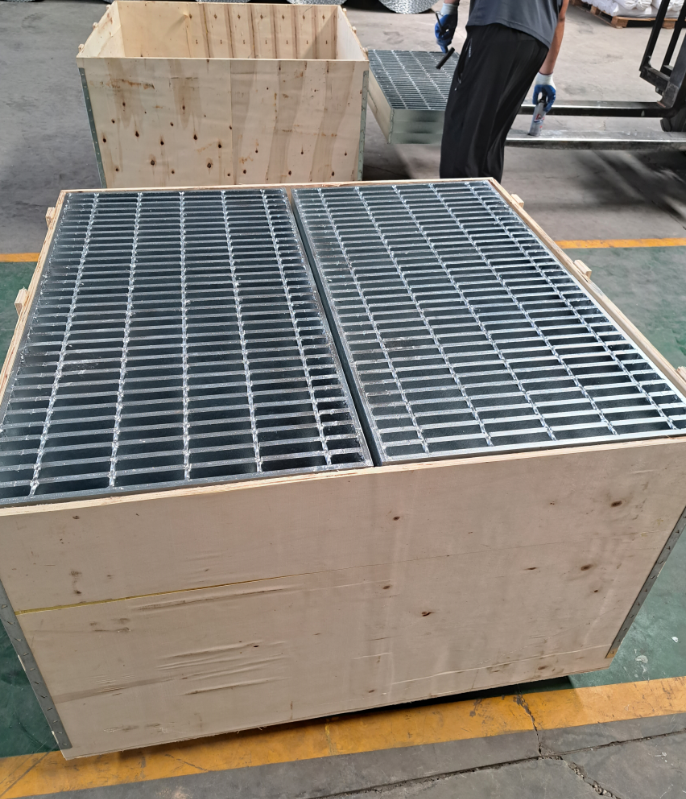

Steel Bar Grating Export Package:
(1). In bulk
(2). In strong pallet
(3). Load in strong wooden case
(4). Same as clients' need way

Steel Bar Grating Normal use the accessories to fixed?

70mm Green Steel Bar Grating for Wall Safety Protection
Steel Bar Grating Application:
  • Wall Safety Protection
  • shipbuilding,
  • power station,
  • stairs treads,
  • floors,
  • Fence wall,
  • platforms,
  • wheeled equipment,
  • srcuries screen,
  • walkways,
  • municipal construction and other industries.
Show our Steel Bar Grating product:
70mm Green Steel Bar Grating for Wall Safety Protection
70mm Green Steel Bar Grating for Wall Safety Protection70mm Green Steel Bar Grating for Wall Safety Protection
70mm Green Steel Bar Grating for Wall Safety Protection
Our company:
70mm Green Steel Bar Grating for Wall Safety Protection70mm Green Steel Bar Grating for Wall Safety Protection
70mm Green Steel Bar Grating for Wall Safety Protection70mm Green Steel Bar Grating for Wall Safety Protection
