4mm Thick Perforated Metal Mesh For Acoustics And Soundproofing
4mm Thick Perforated Metal Mesh For Acoustics And Soundproofing
4mm Thick Perforated Metal Mesh For Acoustics And Soundproofing
4mm Thick Perforated Metal Mesh For Acoustics And Soundproofing
Specifications
Brand Name :
H&F
Model Number :
HF-PS011
Certification :
ISO-9001
Place of Origin :
Hebei, China
MOQ :
50 Square Meters
Price :
USD4.11~USD5.46
Payment Terms :
T/T
Supply Ability :
20000 Square Meters per month
Delivery Time :
According to order quantity
Packaging Details :
Wrapped with air bubble film, then on pallet or in wooden box
Product Name :
Perforated Steel Mesh For Acoustics and Soundproofing
Material :
Aluminum
Thickness :
4mm
Hole distance :
10-80mm
Hole size :
5-30mm
Feature :
Light weight
Application :
Acoustics and Soundproofing
Technic :
Punched
Description

4mm Thick Aluminum Perforated Steel Mesh For Acoustics and Soundproofing

Product Description

Perforated metal screen is a sheet product that has been punched with a wide variety of hole sizes and patterns

providing an aesthetic appeal. Perforated Steel Sheet offers savings in weight, passage of light, liquid, sound and air,

while providing a decorative or ornamental effect. Perforated Steel Sheets are common in interior and exterior design.

Product Specifications

Hole diameter Staggered Centers Sheet Thickness Open Area
0.045” 1.14mm 0.066 0.033-0.039” 0.84-0.99mm 37%
1/16” 1.59mm 3/32” 0.027-0.033” 0.68-0.84mm 41%
5/64” 1.98mm 1/8” 0.027-0.053” 0.68-1.35mm 35%
0.081” 2.06mm 1/8” 0.053-0.066” 1.35-1.68mm 38%
3/32” 2.38mm 5/32” 0.053-0.066” 1.35-1.68mm 33%
1/8” 3.17mm 3/16” 0.027-0.127” 0.68-3.23mm 40%
5/32” 3.97mm 3/16” 0.027-0.066” 0.68-1.68mm 63%
3/16” 4.76mm 1/4” 0.027-0.127” 0.68-3.23mm 50%
1/4” 6.35mm 3/8” 0.033-0.111”,0.25” 0.84-2.82mm.6.35mm 40%
3/8” 9.52mm 1/2” 0.053”-0.082”,3/16” 1.35-2.08mm,4.76mm 51%
3/8” 9.52mm 9/16” 0.059’,0.119” 1.50mm,3.02mm 40%
1/2” 12.70mm 11/16” 0.033-0.127” 0.84-3.23mm,4.76mm 48%
1/4”Hex 6.35mmHex 0.285 0.027-0.033’ 0.68-0.84mm 76%
3/8”Sq. 9.52mmSq. 0.053-0.066” 1.35-1.68mm 51%

Product Fetures

1). Various kind of hole patterns.

2). Accurate holes, bending resistance, corrosion resistance.

3). Easy to process and install, good sound absorption

4). Durable and long service life.

5). Attractive appearance and wide range of thickness available.

Product Applications

Perforated metal mesh is extremely versatile and applies itself to a variety of applications such as balustrade

infill panels, railings infill panels, acoustics and soundproofing, security screens, louvres and ventilation, and

air conditioning grilles.

Perforated metal sheets are also widely utilised in interior design, stage designs, exhibition and shop fittings,

suspended ceilings, lighting and outdoor advertising. In architecture it is often used as internal and external

cladding. Perforated mesh is a material extensively used across many industries.

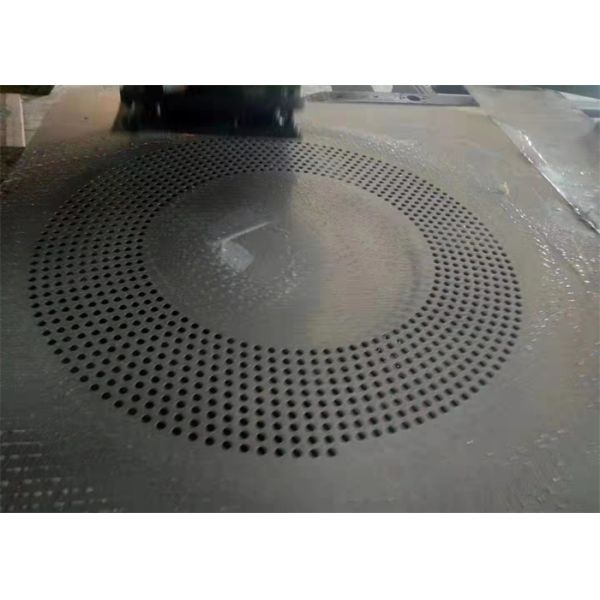

Technological Process

4mm Thick Perforated Metal Mesh For Acoustics And Soundproofing

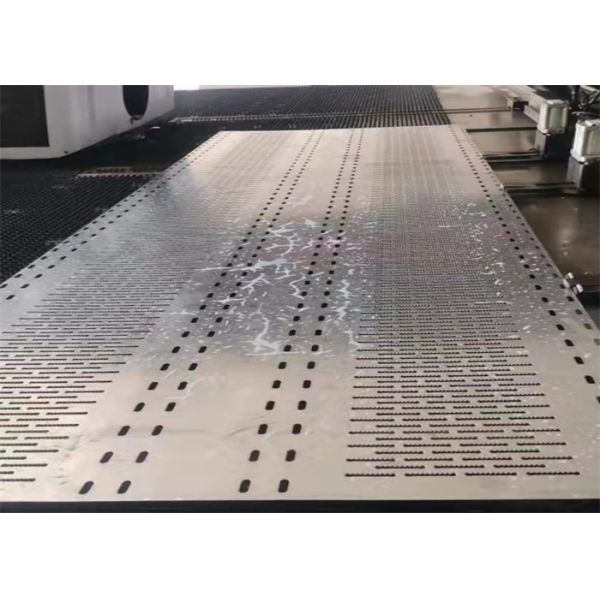

Product show

4mm Thick Perforated Metal Mesh For Acoustics And Soundproofing4mm Thick Perforated Metal Mesh For Acoustics And Soundproofing

Packaging and delivery

4mm Thick Perforated Metal Mesh For Acoustics And Soundproofing
