8mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen
8mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen
8mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen
8mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen
8mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen
8mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen
8mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen
8mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen
8mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen
8mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen
Specifications
Brand Name :
Honesty&Faith
Model Number :
8mesh
Certification :
ISO9001:2008
Place of Origin :
CHINA
MOQ :
100-300units
Price :
USD4.05~USD5.87
Payment Terms :
T/T,L/C,Western Union,Paypal
Supply Ability :
180PCS/Day
Delivery Time :
7Days After receive the deposit
Packaging Details :
In Pallet or In Bulk
Product Name :
6mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen
Key word :
Heavy Duty Shale Shaker Crimped wire Mesh
Mesh Type :
crimped wire mesh
Mateiral :
65Mn Steel, 65Mn ,74A iron steel , stainless steel
Wire Diameter range :
6mm,7mm,8mm,10mm,11mm,12.7mm etc
Aperture :
1mm-100mm
Weave Style :
Plain Weave
Color :
Black,red
Width :
0.5m-3.0m etc
Length :
0.5m-30m etc
Sureface :
With anti-rust oil or without
Feature :
Uniform hole size,standard width and length,high tensile
Aperture Error :
<3%
Sample :
Free fsample supply
Description

6mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen

Crimped mesh screen description:

Crimped mesh screen is woven by our machine.It is choose the high quality 65Mn high carbon steel wire.

Crimped mesh screen can accord to customer need specification design in different hole and size.It can

widely in mine,protect fence.

Our Crimped mesh screen has been widely accepted by clients from North America, Australia, Europe
and Middle East for its high durability, precision and impact resistance. they can be perfectly matched
with various kinds of vibrating screens including international brands,such as Wirtgen, Atlas Copco,
Sandvik, Mesto and other.

Crimped mesh screen specification list:

Product Name
Crimped mesh screen
Material
65Mn Steel, 65Mn ,74A iron steel , stainless steel
Wire diameter
6mm,7mm,8mm,10mm,11mm,12.7mm etc
Aperture/Opening
1mm-100mm
Weave Style Plain Weave
Color Black,red
Width

0.5m-3.0m etc
Length 0.5m-30m etc
Sureface With anti-rust oil or without
Feature Uniform hole size,standard width and length,high tensile
Aperture Error <3%
Sample Free fsample supply

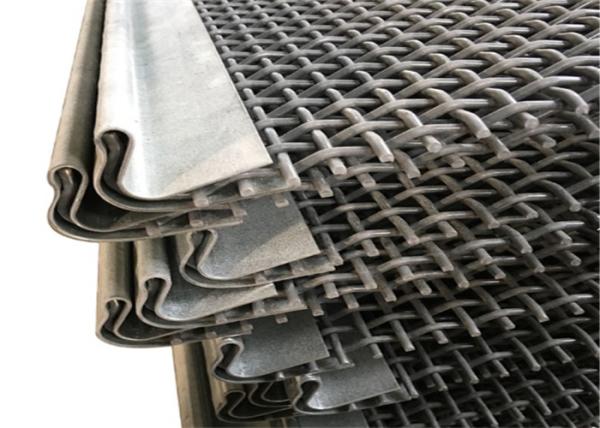

Crimped mesh screen Types of Various Edge Preparations:

8mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen

Welded insert Hooked edge with metal sheet Hooked edge welded

45-60 degree 45-60 degree 45-60 degree

8mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen

Fold U-Hook Welded U-Hook Welded edge wire

8mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen

Two-piece hook strip Welded paltes Sqaure hook with

Crimped mesh screen features:

1. The screens are designed to bear heavy loads
2. Highly resistant to vibrations and shocks

3. These are highly damage resistant
4. Coated for long term protection against corrosion
5. Durable in quality, these screens have excellent dimensional tolerance
6. Stringently tested for their finishing and strength
7. Acclaimed among clients for their excellent abrasion resistance

When ordering screens the following technical aspects should be taken into account :

Thickness of wire:
Thick wire will last longer than thin wire, but will give a smaller open area and will therefore pass

less material per unit area.

Open Area:
This is the most important factor in obtaining maximum output. The larger the open area the less

screen is wasted and the faster the speed of screening. This open area factor must balanced against

the wire diameter to give adequate life

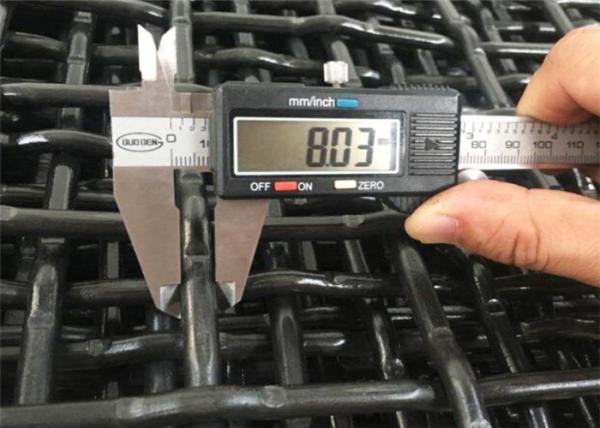

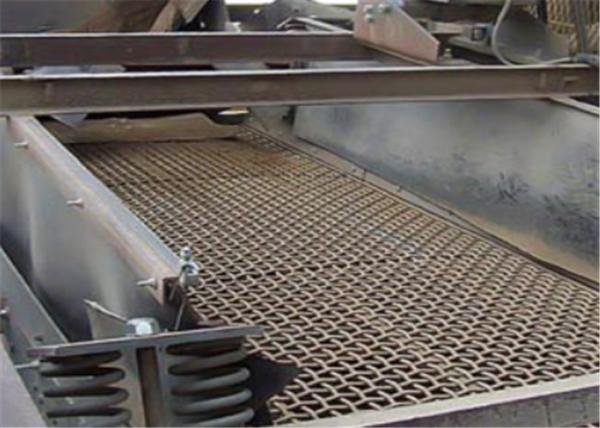

Show Crimped mesh screen product:

8mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen

8mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen

Our company:

8mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen8mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen8mm wire diameter Heavy Duty Shale Shaker Crimped Mesh Screen
