0.5m Filter Round Hole Perforated Metal Mesh Tubes
0.5m Filter Round Hole Perforated Metal Mesh Tubes
0.5m Filter Round Hole Perforated Metal Mesh Tubes
0.5m Filter Round Hole Perforated Metal Mesh Tubes
0.5m Filter Round Hole Perforated Metal Mesh Tubes
0.5m Filter Round Hole Perforated Metal Mesh Tubes
Specifications
Brand Name :
Honesty&Faith
Model Number :
HS-0015
Certification :
ISO9001
Place of Origin :
CHINA
MOQ :
100-300units
Price :
USD4.11~USD5.46
Payment Terms :
T/T, Western Union
Supply Ability :
380Sheets per day
Delivery Time :
7-10days
Packaging Details :
In pallet,wooden box or bundle
Item Name :
Filter Round Hole Perforated Tubes
Material :
Galvanized sheet, ss sheet, aluminum plate, etc
Technique :
Perforated
Hole shape :
Round, square, hexagonal, scale, etc
Plate ThicknessPlate Thickness :
0.3-2mm
Surface treatment :
Powder coated, galvanized, oxidation, PVDF
Color :
Black or as your need
Size :
0.5m 0.8m 1m
Price term :
FOB or CIF
Sample :
Supply free for you
Description

Filter Round Hole Perforated Metal Tubes

Perforated Metal Tubes description:

Perforated Metal Tubes is made of standard perforated sheet,through welded,then make in different size

tubes.

Our Perforated Metal Tubes can design big type and small type.The size including height,diameter can

custom your need or application.


Perforated Metal Tubes specification list:

Hole
Diameter

Staggered Centers

 Sheet Thickness Open Area
0.045'' 1.14mm 0.06 0.032'' 0.81mm 37.00%
1/16'' 1.59mm 1/8'' 0.032'',0.040'' 0.81mm,1.02mm 23.00%
3/32'' 2.38mm 5/32'' 0.040'',0.063'' 1.02mm,1.60mm 33.00%
7/64'' 2.78mm 3/16'' 0.32'' 0.81mm 29.00%
1/8'' 2.78mm 3/16''

0.320'',0.040'',0.050'',

0.063'',0.125''

0.81mm,1.02mm,1.27mm,

1.60mm,3.17mm

 40.00%
5/32'' 3.97mm 3/16'' 0.320'',0.063'',0.090'' 0.81mm,1.60mm,2.29mm 63.00%
3/16'' 4.76mm 1/4'' 0.320'',0.040'',0.050'',0.063'' 0.81mm,1.02mm,1.27mm,1.60mm 50.00%
3/16'' 4.76mm 3/8'' 0.040'', 1.02mm 23.00%
1/4'' 6.35mm 5/16'' 0.063'' 1.60mm 58.00%
1/4'' 6.35mm 3/8'' 0.063'',0.125'' 1.60mm,3.17mm 40.00%
1/2'' 12.7mm 11/16'' 0.063'' 1.60mm 48.00%

Material stainless steel , iron, galvanized , aluminum, pvc coated,etc
Hole shape Round, Rectangular,Square, Triangle, Diamond, Hexagonal,etc
Thickness usually 0.5mm,1mm,1.2mm,1.5mm,2.0mm etc
Hole size 0.6-20mm,ect
Mesh/inch 20-635mesh
Openging rate 45%,60%,85% etc
Surface Treatment Electric galvanized, Hot dipped galvanized, oxidation treatment etc

Perforated Metal Tubes processing:

perforating, flattening, rolling, cutting, bending, edging, welding and finishing

Perforated Metal Tube For Filter:
1) .We can provide standard or customized hole size in any number and pattern.
2) .Every perforated pipe by us is deburred internal and external and drift tested according to API standards.
3). Each hole is visually inspected and clean of material.

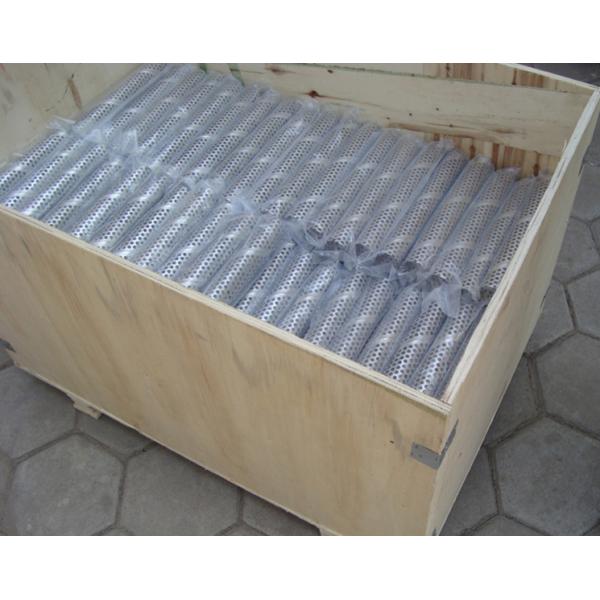

Perforated Metal Tubes packing way:
1. each in a polybag
2. some polybags in a carton
3. In sotring wooden box
4. customized

Perforated Metal Tubes application:

Perforated metal tube can be used for decorating, cage ventilation, antiskid. At the same time, it can be as

the guard of central heating, air conditioning equipment, different sorts of chassis and machines. Another

important use is filtration. For instance, filter, filter pipe, water and gas treatment equipment.

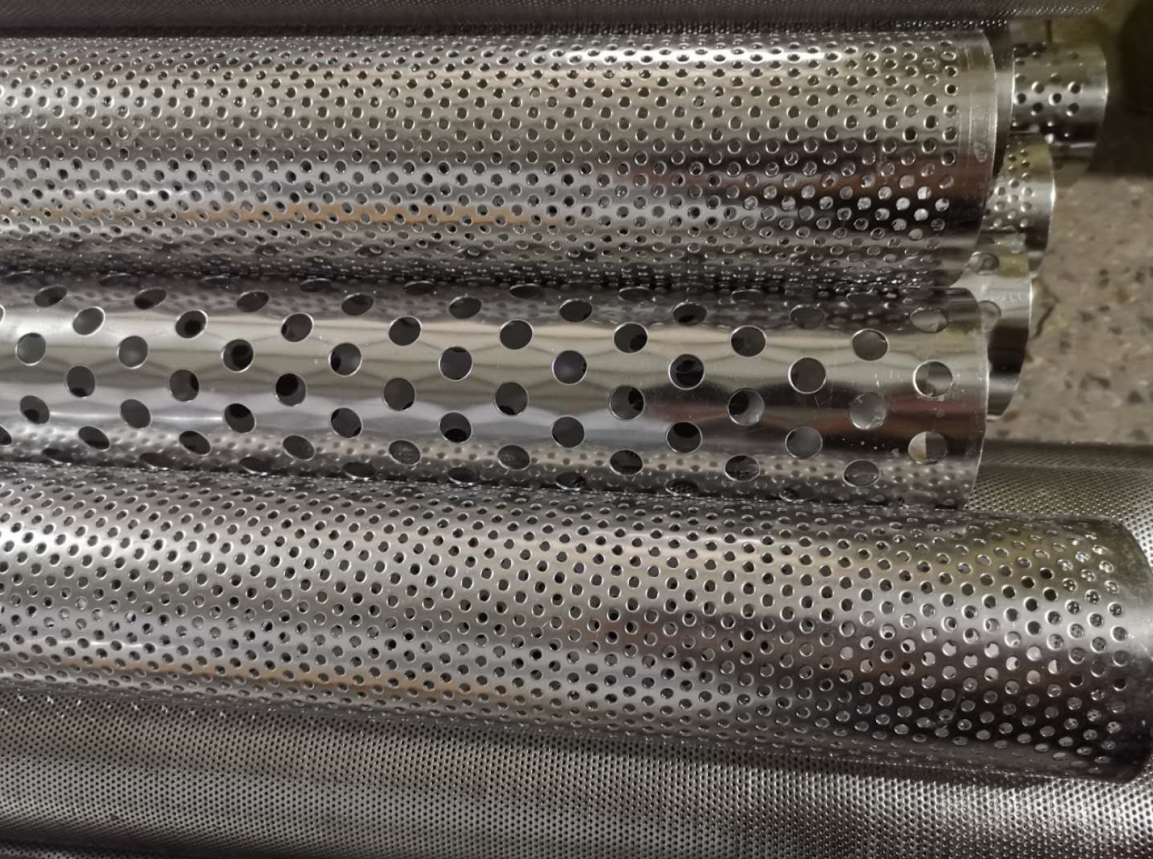

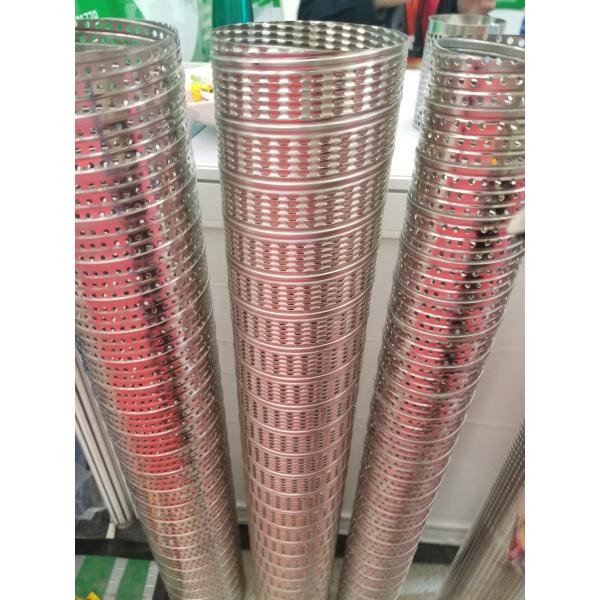

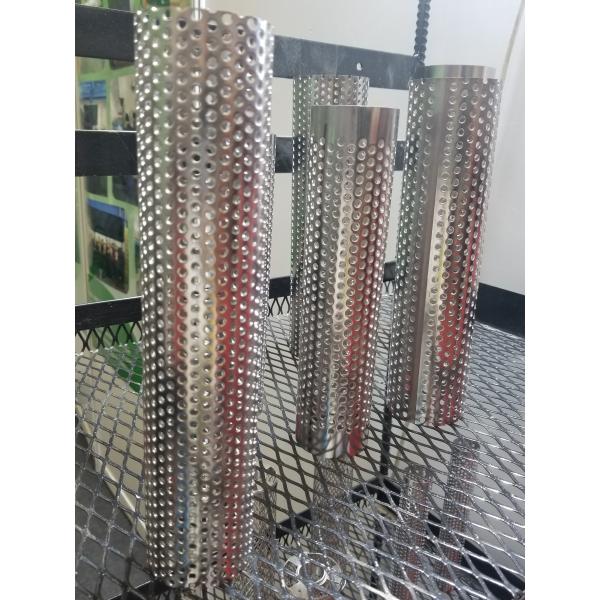

Show our Perforated Metal Tubes pictures for reference:

0.5m Filter Round Hole Perforated Metal Mesh Tubes0.5m Filter Round Hole Perforated Metal Mesh Tubes

0.5m Filter Round Hole Perforated Metal Mesh Tubes0.5m Filter Round Hole Perforated Metal Mesh Tubes

0.5m Filter Round Hole Perforated Metal Mesh Tubes
