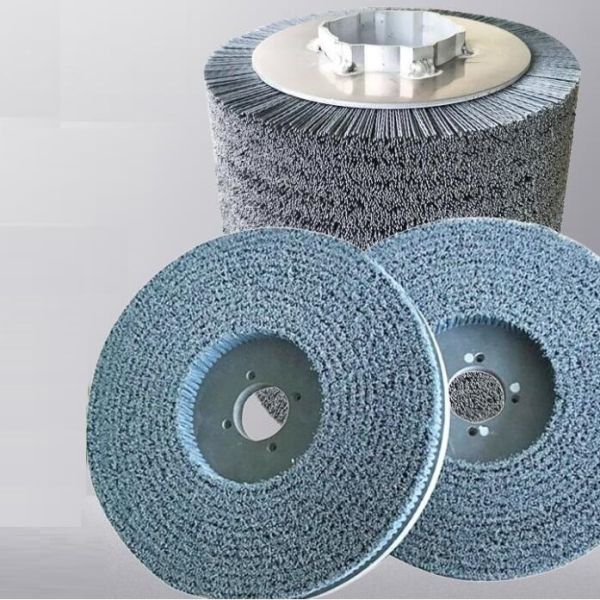

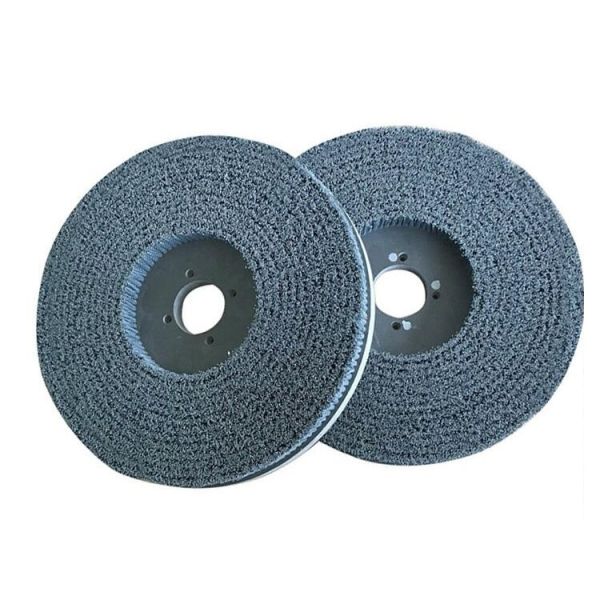

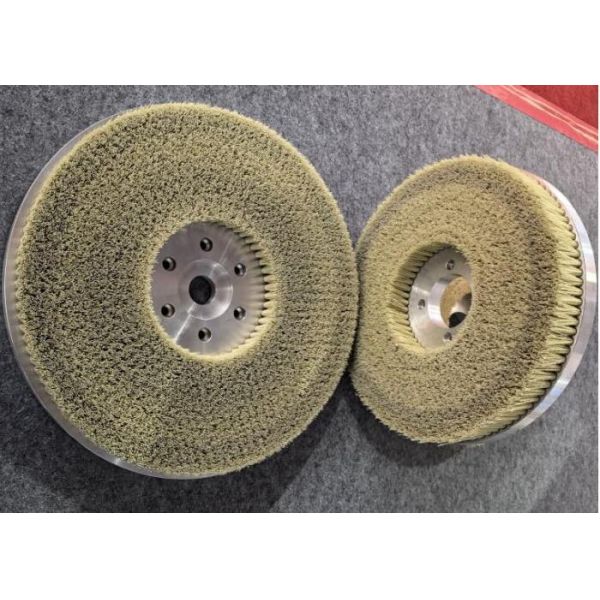

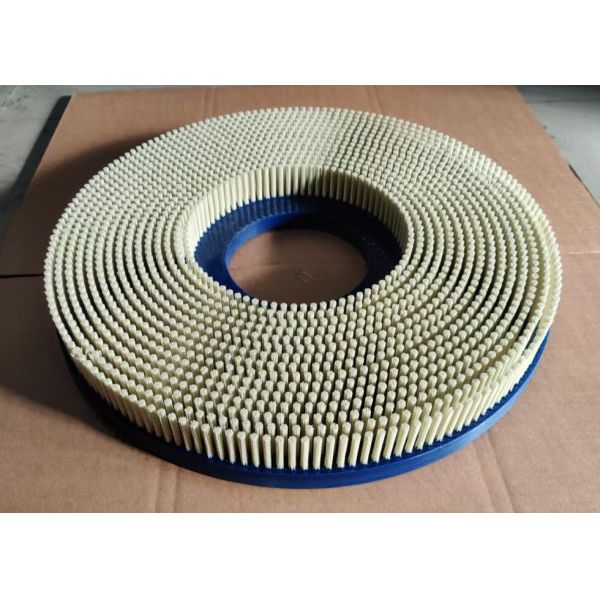

Hard Alloy CBN Tool Edge Passivation 80 Grit Silicon Carbide Disc Brush 500mm Diameter
Hard Alloy CBN Tool Edge Passivation 80 Grit Silicon Carbide Disc Brush 500mm Diameter
Hard Alloy CBN Tool Edge Passivation 80 Grit Silicon Carbide Disc Brush 500mm Diameter
Hard Alloy CBN Tool Edge Passivation 80 Grit Silicon Carbide Disc Brush 500mm Diameter
Hard Alloy CBN Tool Edge Passivation 80 Grit Silicon Carbide Disc Brush 500mm Diameter
Hard Alloy CBN Tool Edge Passivation 80 Grit Silicon Carbide Disc Brush 500mm Diameter
Specifications
Brand Name :
L&W
Model Number :
DMS300-8JHB
Certification :
ISO9001
Place of Origin :
China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
Western Union, L/C, T/T,paypal
Supply Ability :
200 piece / day
Delivery Time :
10 working days after received your payment
Packaging Details :
1 piece / CTN, 25 Piece / CTN
Item name :
Silicon Carbide Disc Brush 500mm
OD :
500MM
Inner hole Dia. :
100MM
Bristle trim length :
50mm
base thickness :
25mm
bristle Material :
Diamond bristle
bristle dia :
0.25mm
grits :
1000
Description

Maximum Fill Density Hard Alloy CBN Tool Edge Passivation 80 Grit Silicon Carbide Disc Brush 500mm Diameter

Version:

Diamond bristles with very high grit content for general-purpose use.
Conical brushes for inaccessible places. Greater flexibility.
With longitudinal groove for clamping on face mill arbors (DIN 6357) and combination face mill adapters (DIN 6358).
Disc brushes with extremely tightly packed abrasive bristles (right to the edge of the brush) embedded in the plastic pad. The bristles support each other, giving a highly stable shape. Very long working life.
Hard Alloy CBN Tool Edge Passivation 80 Grit Silicon Carbide Disc Brush 500mm Diameter
Hard Alloy CBN Tool Edge Passivation 80 Grit Silicon Carbide Disc Brush 500mm Diameter

Advantage:

  • Workpiece post-processing directly after the machining process.
  • Reproducible results due to continuous exposure of the abrasive grit.
  • Process reliability thanks to high stability and accuracy of the shape.
  • Quick and secure mounting without further accessories.
  • Very high concentricity.

Application:

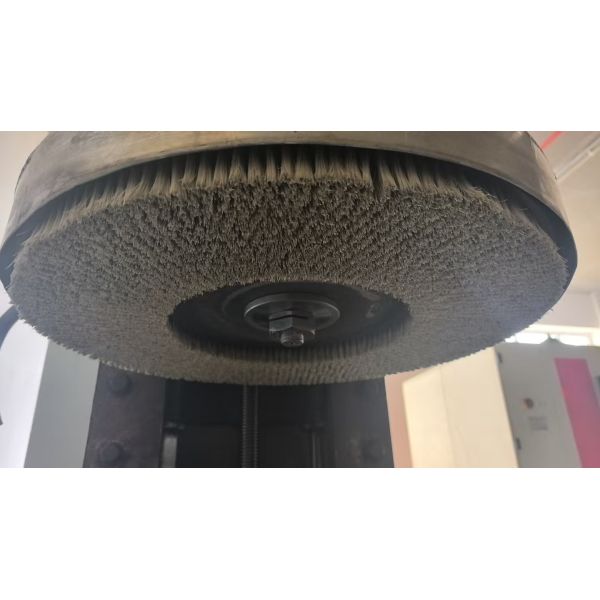

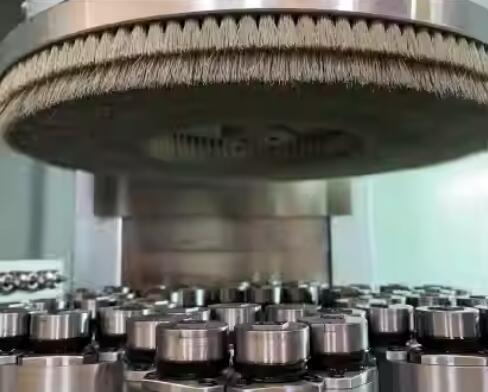

On CNC machining centres and when used by robots, preferably wet grinding with cooling lubricant. Machining of flat components: precise deburring, edge rounding, finish machining after milling, surface finishing e.g. of sealing and mating faces.
Hard Alloy CBN Tool Edge Passivation 80 Grit Silicon Carbide Disc Brush 500mm Diameter

Hard Alloy CBN Tool Edge Passivation 80 Grit Silicon Carbide Disc Brush 500mm Diameter

Product Description

These disc brushes are manufactured with a molded thermoplastic base using a tough engineering plastic to provide more rigidity and stability with less vibration. Our unique combination of silicon carbide and ceramic filaments are used to allow the brushes to cut faster and last longer than any other brush on the market.

Product Dimensions:

Both brush styles are available in three different diameters: 100 mm, 125 mm 150mm and 200 mm to suite a range of parts and finishing machinery.

The brushes are available in 18-mm or 38-mm trim lengths to provide the perfect combination of flexibility and aggressiveness.

Shorter trim lengths result in more aggressive cutting where heavy burrs are present and longer trim lengths allow irregular surfaces to be finished easily.

Custom sizes and shapes possible.

Hard Alloy CBN Tool Edge Passivation 80 Grit Silicon Carbide Disc Brush 500mm Diameter

Outer Diameter

 500mm

Inner Diameter

 100mm

Base thickness

 25MM

Bristle height

 50mm

Bristle Dia.

 0.25mm

Applications:


• Ideal for deburring any flat machined auto parts


• Deburring face milled casting and forgings


• Edge blending and edge radiusing operations


• Fine blank deburring


• Engine block and cylinder head deburring


• Surface finish and removing burrs on hydraulic components


• Rust and scale removal


• Clean pre-cast concrete moulds


• Sanding and texturing wood surfaces


• Surface conditioning alloy wheels
