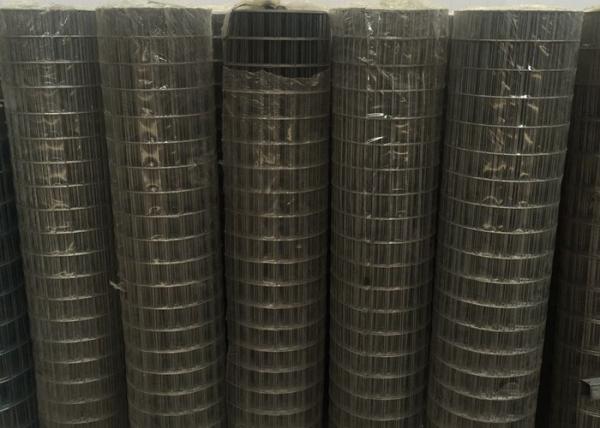

High Strength Welded Wire Mesh Square Hole For Construction / Agriculture
High Strength Welded Wire Mesh Square Hole For Construction / Agriculture
High Strength Welded Wire Mesh Square Hole For Construction / Agriculture
High Strength Welded Wire Mesh Square Hole For Construction / Agriculture
High Strength Welded Wire Mesh Square Hole For Construction / Agriculture
High Strength Welded Wire Mesh Square Hole For Construction / Agriculture
Specifications
Brand Name :
BROS
Model Number :
Bros-1101
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
50 rolls
Payment Terms :
L/C, T/T
Supply Ability :
300 rolls per week
Delivery Time :
5-25 days (Depend on your quantity)
Packaging Details :
packed by water-proof paper then shrinked plastic bag or and then wooden pallet
Product name :
Electro galvanized welded wire mesh
Weave Style :
welded wire mesh roll
Technique :
galvanized before or after welding
Wire Diameter :
2.0mm-5.5mm
Finishing :
galvanized
Mesh Size :
50X100,50X120,50X150
Mesh Hole type :
square
application :
farm or garden fence and construction
Description

High Strength Electro / Cold Galvanized Welded Wire Mesh For Construction

Material : Low carbon steel wire, galvanized wire, ss steel wire

Processing

Welded wire mesh electro or hot dipped galvanized after welding

Welded wire mesh electro or hot dipped galvanized before welding

Welded wire mesh in PVC coated

Welded wire mesh in stainless steel

Specifications

Standard Welded Wire Mesh Roll (In 30 m Length, Width of 0.2m-1.8m)
Mesh Wire Gauge
(Inch) (mm) (BWG)
1/4×1/4 6.4×6.4 22/23/24
3/8×3/8 10.6×10.6 19/20/21/22
1/2×1/2 12.7×12.7 16/17/18/19/20/21/22/23
5/8×5/8 16×16 18/19/20/21
3/4×3/4 19.1×19.1 16/17/18/19/20/21
1×1/2 25.4×12.7 16/17/18/19/20/21
1-1/2×1-1/2 38×38 14/15/16/17/18/19
1×2 25.4×50.8 14/15/16
2×2 50.8×50.8 12/13/14/15/16
4×4 100×100 8/9/10
Welded Fencing Mesh Panel (In 0.5-5m Length, Width of 0.5-2.5m)
Mesh Wire Diameter
(Inch) (mm) (mm)
2×3 50×75 2.0/2.5/1.65
3×3 75×75 2.67/2.41/2.11/1.83/1.65
2×4 50×100 2.11/2.5
4×4 100×100 2.0/2.5
2×8 50×200 3.0/3.5/4.0/4.5/5.0

Welded wire mesh roll Technical Note:

1,Standard roll length: 30m; width: 0.5m to 1.8m

2,Special sizes available at request

3,Packing: In waterproof paper in rolls. Custom packing available at request.

Characteristics

All intersections are welded immobility, hight strength, the appearance is luster, good resistance of corrosion well-proportioned mesh, the mesh doesn't come loose , the nets is flatten

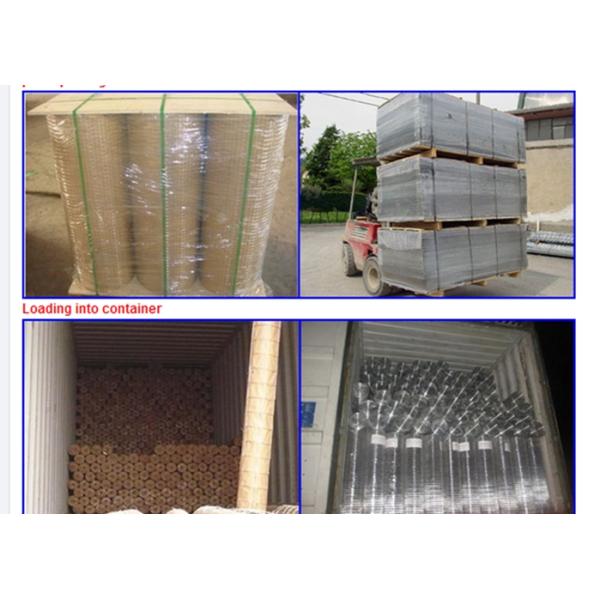

Packing

Each welded wire mesh roll is wrapped with water proof paper or plastic shrink packing.

Welded wire mesh panel is pallets packing or in bulk

Special packing is ok as your request.

High Strength Welded Wire Mesh Square Hole For Construction / Agriculture

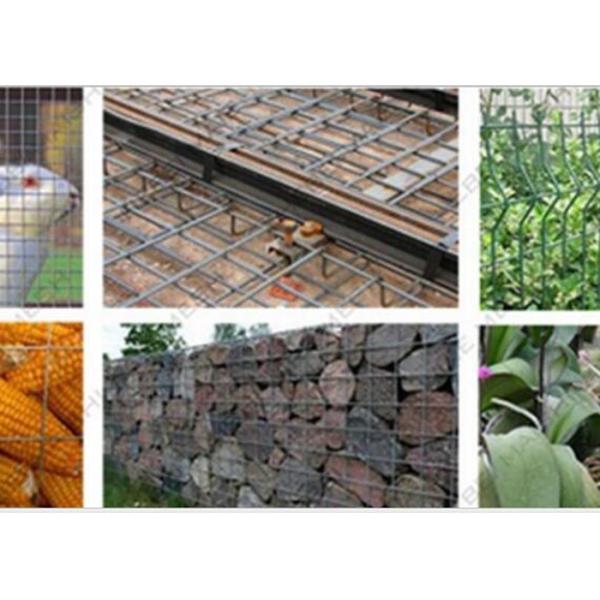

Uses

Welded wire mesh is used in industry and agriculture building, Transportation and mining for all such purposes as poultry houses, Egg baskets, Runway enclosures, Draining rack, Fruit drying screen, Fence.

High Strength Welded Wire Mesh Square Hole For Construction / Agriculture
