PVC Coated Wire Mesh Fence Panels For Highway / Construction Green Color
PVC Coated Wire Mesh Fence Panels For Highway / Construction Green Color
PVC Coated Wire Mesh Fence Panels For Highway / Construction Green Color
PVC Coated Wire Mesh Fence Panels For Highway / Construction Green Color
PVC Coated Wire Mesh Fence Panels For Highway / Construction Green Color
PVC Coated Wire Mesh Fence Panels For Highway / Construction Green Color
Specifications
Brand Name :
BROS
Model Number :
Bros-1205
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
50 pcs
Payment Terms :
L/C, T/T
Supply Ability :
235 rolls per day
Delivery Time :
5-25 days (Depend on your quantity)
Packaging Details :
Packing by plastic film + metal /wooden pallet
Product name :
PVC coated welded wire mesh panel
Material :
Iron wire
Surface treatment :
PVC coated
Wire Diameter :
0.4mm-5mm
Aperture :
6.4mm*6.4mm-150mm*150mm
Mesh Size :
50X100,50X120,50X150,50X20
Mesh Hole type :
Square
Application :
Fence, cage , construction
Description

Green Color PVC Coated Welded Wire Mesh Panels For Farm Fence / Highway Fence

Product Description

PVC coated welded wire mesh panel is welded by high quality low-carbon steel wire or galvanized steel wire, then PVC coating.

Compared with general iron welded wire mesh panel, the PVC coated welded wire mesh panel is better in respects of anti-corrosive, anti-rust, non-fading, anti-ultraviolet radiation, and have bright color.

Specification

Name:PVC coated welded wire mesh
Material: Low-carbon wire ,electro / hot dipped galvanized wire
Process: welding with PVC coating

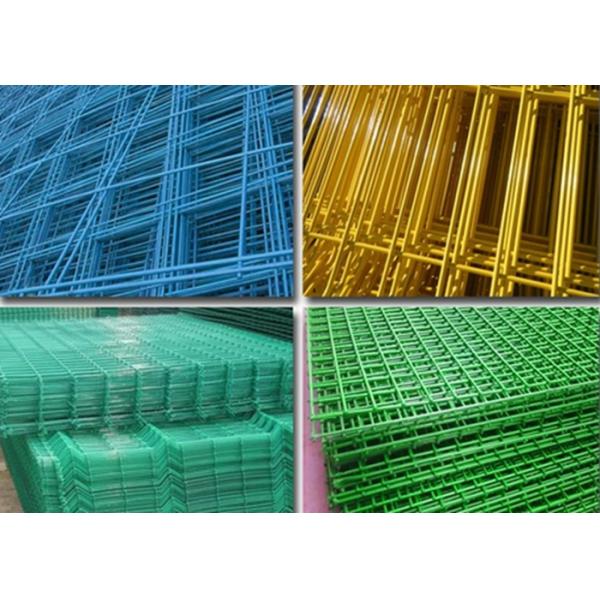

Color : red, green, blue white, black,yellow, dark green orange etc
Type: panel

Specification of PVC coated welded wire mesh panel
Mesh in mm Mesh in inch Wire Gauge Wire dia before coat Wire dia after coat
6.4mm 1/4 Inch 22,23,24 0.56mm-0.71mm 0.90mm-1.05mm
9.5mm 3/8 Inch 19,20,21,22 0.64mm-1.07mm 1.00mm-1.52mm
12.7mm 1/2 Inch 16,17,18,19,20,21,22,23 0.71mm-1.65mm 1.10mm-2.20mm
15.9mm 5/8 Inch 18,19,20,21 0.81mm-1.65mm 1.22mm-2.30mm
19.1mm 3/4 Inch 16,17,18,19,20,21 0.81mm-1.65mm 1.24mm-2.40mm
25.4mmx12.7mm 1x1/2 Inch 16,17,18,19,20,21 0.81mm-1.65mm 1.24mm-2.42mm
25.4mm 1 Inch 14,15,16,17,18,19,20 0.81mm-2.11mm 1.28mm-2.90mm
38.1mm 1 1/2 Inch 14,15,16,17,18,19 1.07mm-2.11mm 1.57mm-2.92mm
25.4mmx50.8mm 1x2 Inch 14,15,16 1.47mm-2.11mm 2.00mm-2.95mm
50.8mm 2Inch 12,13,14,15,16 1.65mm-2.77mm 2.20-mm3.61mm
76.2mm 3Inch 16,17,18 1.90mm-3.50mm 2.50mm-4.36mm
101.6mm 4Inch 12,13,14,15,16 2.20mm-4.00mm 2.85mm-4.88mm

Note:

1. Width 0.5m-1.8m, length 1m-8m.

2. Special sizes available at request.

3. Packing: packed in pallet or as your requirement.

4. Sample is free within 1 or 2, express cost need pay before shipping.


Product process

Low carbon steel wire - - - welded into mesh - pvc coated

Low carbon steel wire - - - welded into mesh - electro / hot dipped galvanized - pvc coated

Electric / hot dipped galvanized wire - pvc coated

Characteristics

Beautiful look, Strong structure, Flat surface, Super in anti-corrosion, Precise spot welding.

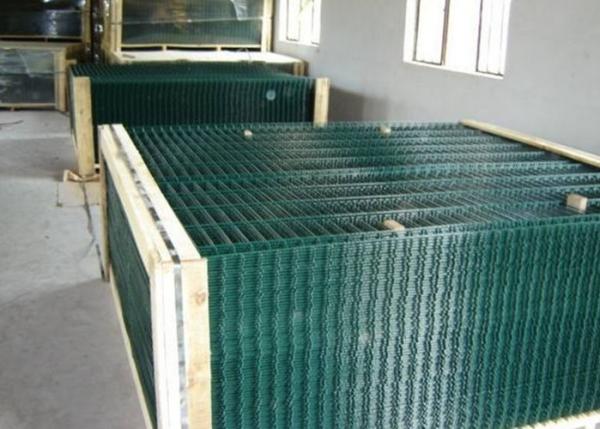

Packing&Shiping

Wrapped with moister-proof paper. PVC film, nude packed.
And then wooden pallet.
Special packing may be arranged upon request.

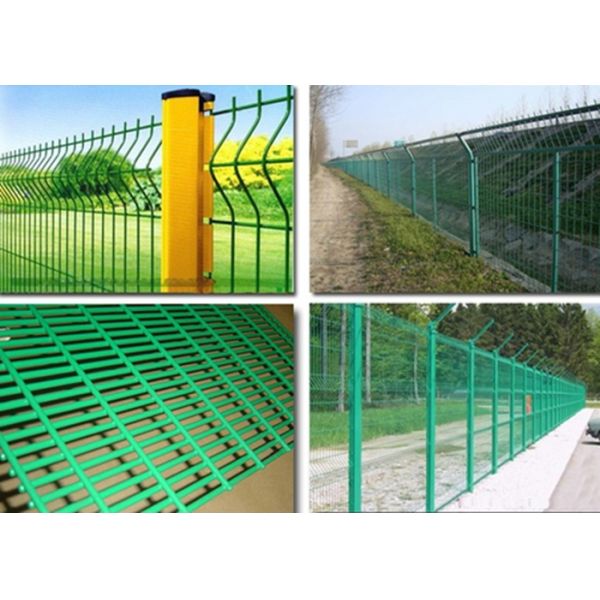

Application

Widely used as indoor and outdoor decoration, poultry farm, trees fences and flowers , villa, residential area, fence isolation, highway and supermaket shelves etc.

PVC Coated Wire Mesh Fence Panels For Highway / Construction Green Color


PVC Coated Wire Mesh Fence Panels For Highway / Construction Green Color
