Hexagonal Wire Gabion Mesh Cages Safety For Building / Construction
Hexagonal Wire Gabion Mesh Cages Safety For Building / Construction
Hexagonal Wire Gabion Mesh Cages Safety For Building / Construction
Hexagonal Wire Gabion Mesh Cages Safety For Building / Construction
Hexagonal Wire Gabion Mesh Cages Safety For Building / Construction
Hexagonal Wire Gabion Mesh Cages Safety For Building / Construction
Specifications
Brand Name :
BROS
Model Number :
Bros-1303
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
30 rolls
Payment Terms :
L/C, T/T
Supply Ability :
200 rolls per days
Delivery Time :
Within 20 Days after receiving your deposit or L/C.
Packaging Details :
Normally each roll packed in water proof paper. Customers' packing is available at request
Product name :
Chicken Wire Mesh
Hole Shape :
Hexagonal shape
Weaving pattems: Straight twist, reverse twist, double :
Straight twist, reverse twist, double
Opening :
3/8" (10mm) to 4" (100mm)
Wire Diameter :
bwg27 (0.4mm) – bwg14 (2.1 mm)
Length :
25-100m
Width :
0.5----2.5m
Application :
Protecting Mesh
Description

PVC Coated Chicken Mesh Chicken Wire / Hexagonal Wire Netting



Hexagonal wire mesh is also known by the name of chicken mesh.
Hexagonal wire netting is manufactured in galvanized iron and galvanized iron drawn wire.
Hexagonal wire mesh is extensively used in building, construction,agriculture, industry. Such as reinforcement of the roof and floor, fencing for poultry farms, children playground, and fishing and gabion cages.

Hexagonal wire mesh, galvanized hexagonal wire mesh, PVC coated hexagonal chicken wire mesh
Detailed Hexagonal wire mesh Description

1. Material: High quality low carbon steel wire, stainless wire

2. Mesh size:1/2", 3/8", 3/4", 1-1/4",1-1/2", 1", 2", 3", 4"

3. Weaving pattern:straight twist, reverse twise, and double-direction twist.

4. Galvanized:hot-dipped galvanized, electro galvanized and dipped plastic hexagon mesh(PVC hexagon mesh).

5. Available: Electro Galvanized. Hot Dipped Galvanized. P.V.C Coated. Stainless Steel Wire

6. Packing: Normally each roll packed in water proof paper. Customers' packing is available at request.
We can produce different specifications hexagonal wire mesh according to the customers' requirements.

Chicken wire Mesh size :
3/8" (10mm) to 4" (100mm)
Wire diameter:bwg27 (0.4mm) – bwg14 (2.1 mm)
Roll size : 0.5-2m width x 10m/30m/50m/100m/800m length
Galvanized hex. wire netting in normal twist
Mesh Wire Gauge (BWG)
Inch mm
3/8" 10mm 27,26,25,24,23,22,21
1/2" 13mm 25,24,23,22,21,20
5/8" 16mm 27,26,25,24,23,22
3/4" 20mm 25,24,23,22,21,20,19
1" 25mm 25,24,23,22,21,20,19,18
1-1/4" 32mm 22,21,20,19,18
1-1/2" 40mm 22,21,20,19,18,17
2" 50mm 22,21,20,19,18,17,16,15,14
3" 75mm 21,20,19,18,17,16,15,14
4" 100mm 17,16,15,14
Surface Treatment

Electro Galvanized before Weaving

Electro Galvanized After Weaving

Hot Dipped Galvanized before Weaving

Hot Dipped Galvanized after Weaving

PVC Coated Before weaving

PVC Coated After Weaving

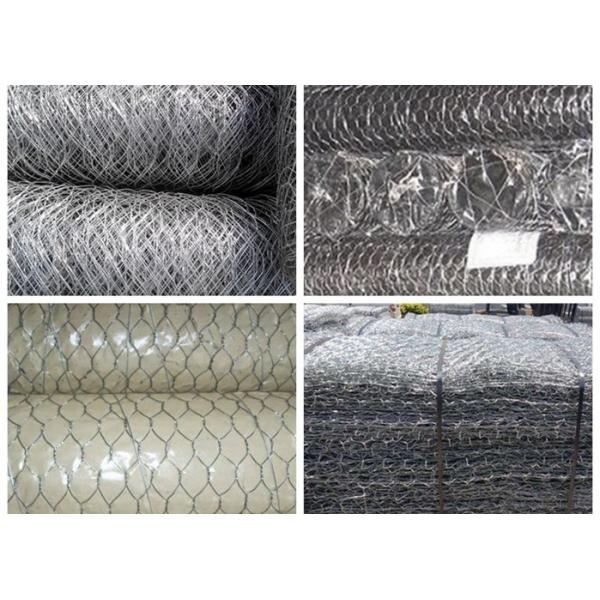

Packing of Hexagonal Wire Mesh

shrink film+ label (customer’s logo is ok )

water-proof paper+ shrink film+ label

water-proof paper+ shrink film+label, then incardboard carton

water-proof paper+ shrink film+label, then in pallet.

Hexagonal Wire Gabion Mesh Cages Safety For Building / Construction

Using of Hexagonal Wire mesh:

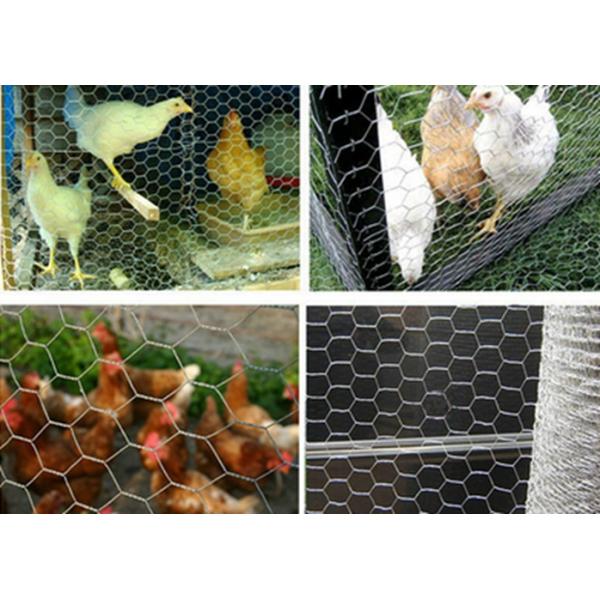

used for breeding chicken, duck, goose, rabbit and zoo enclosure, machinery and equipment protection, highway barrier, sports place fence, the road greening fence. This screen in making box shaped containers, with stone filled, can be used to protect and support seawall, slope, road, bridge, reservoirs and other civil engineering, good effect to control and fighting flood .


Hexagonal Wire Gabion Mesh Cages Safety For Building / Construction
