Security Gabion Wire Mesh For Embankment / Dike , Corrosion Resistance
Security Gabion Wire Mesh For Embankment / Dike , Corrosion Resistance
Security Gabion Wire Mesh For Embankment / Dike , Corrosion Resistance
Security Gabion Wire Mesh For Embankment / Dike , Corrosion Resistance
Security Gabion Wire Mesh For Embankment / Dike , Corrosion Resistance
Security Gabion Wire Mesh For Embankment / Dike , Corrosion Resistance
Specifications
Brand Name :
BROS
Model Number :
Bros-1301
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
30 rolls
Payment Terms :
L/C, T/T
Supply Ability :
200 rolls per days
Delivery Time :
Within 20 Days after receiving your deposit or L/C.
Packaging Details :
Each roll shrink wrapped or packed with water-proof paper. box, carton, pallet. special packing method may be accepted after confirmation.
Material :
Low carbon steel wire / galvanized wire
Hole Shape :
Hexagonal shape
Weaving pattems: Straight twist, reverse twist, double :
Straight twist, reverse twist, double
Opening :
1/2"-4"
Wire Diameter :
0.5mm-2.5mm
Length :
about 25m or according to your requirements
Width :
0.5----2.5m
Application :
Protecting Mesh
Description

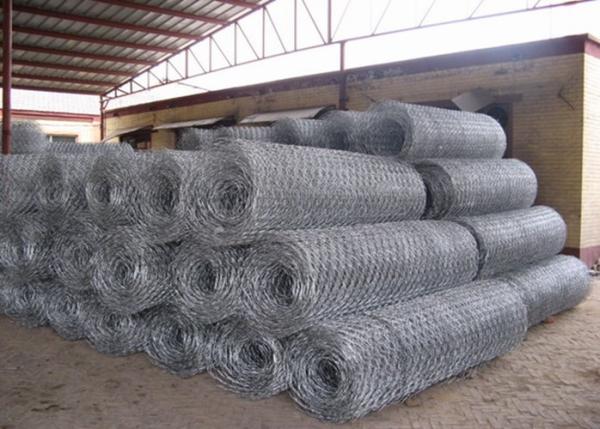

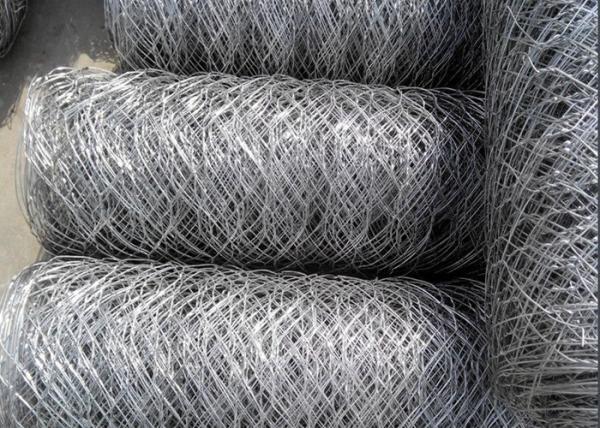

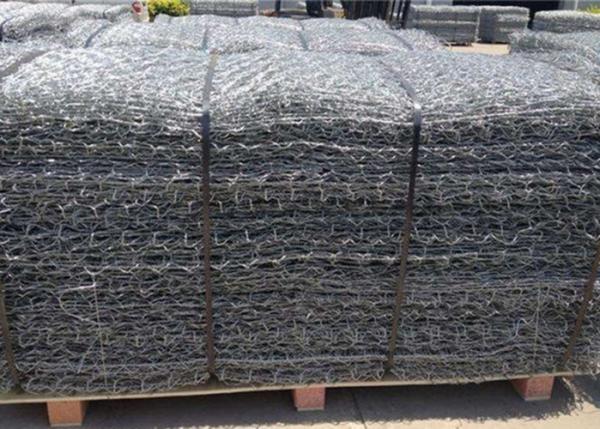

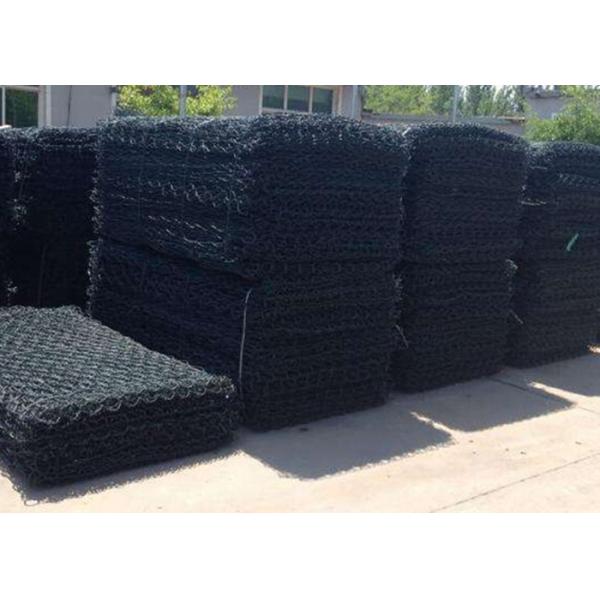

Gabion Wire Mesh / Security Fence / Hexagonal Wire Mesh / Poultry Fence

Gabion Wire Mesh / Gabion box mesh are made of double-twisted hexagonal wire mesh, mainly material are hot dipped galvanized steel wire, zinc and aluminum alloy coated steel wire, PVC coated steel wire, etc.

Galvanized Hexagonal Wire Mesh (Poultry netting, Security fence)

Material:

1) Electro galvanized wire, Hot dip galvanized wire, PVC coateod wire in different colors
2) Zinc coated quantity: 245g /m2.
3) PVC coating thickness: 0.4-0.5mm

Weaving Patterns:

Straight twist, reverse twist, double twist.

Process:

Galvanized after weaving

Galvanized before weaving

General Spec:

Details of Gabion Mesh

Galvanized hex. wire netting in reverse twist (width of 0.5M-2.0M)

Mesh

Wire Gauge(BWG)

Reinforcement

Inch

mm

(BWG)

Width(ft)

Strand

1"

25mm

22,21,20,18

2’

1

1-1/4"

32mm

22,21,20,18

3’

2

1-1/2"

40mm

20,19,18

4’

3

2"

50mm

20,19,18

5’

4

3"

75mm

20,19,18

6’

5

Hex. wire netting PVC-coated (Roll width of 0.5M-2.0M) ( Roll length of 2.5m,30m, 50m)

Mesh

Wire Dia(mm)

Inch

mm

1/2"

13mm

0.9mm,0.1mm

1"

25mm

1.0mm,1.2mm,1.4mm

1-1/2"

40mm

1.0mm,1.2mm,1.4mm,1.6mm

Feature:

Economy. It only needs to load a stone cage can be sealed.
A strong withstands natural damage and corrosion resistance and resistance to adverse effects of climate.
With stand large-scale deformation, and does not collapse.
Cage rock crevice between the muds to plant production, with the surrounding natural environment melting together.
Has good permeability to prevent static fluid from the damage caused.
Save transportation costs. Can be folded up its transport, assembly on site

Uses:

used in industrial and agricultural constructions

Building works for the propose of reinforcing and fencing as protective cage
Boiler wrapping in resisting heat or cold.

Control and guide of water or flood
Flood bank or guiding bank
Preventing of rock break

Water and soil protection

Bridge protection
Strengthening structure of coil

Protection engineering of seaside area.

Security Gabion Wire Mesh For Embankment / Dike , Corrosion Resistance

Security Gabion Wire Mesh For Embankment / Dike , Corrosion Resistance
