Knited Hinged Farm Mesh Fencing For Forestry / Cow , 2mm Dia Wire
Knited Hinged Farm Mesh Fencing For Forestry / Cow , 2mm Dia Wire
Knited Hinged Farm Mesh Fencing For Forestry / Cow , 2mm Dia Wire
Knited Hinged Farm Mesh Fencing For Forestry / Cow , 2mm Dia Wire
Specifications
Brand Name :
BROS
Model Number :
Bros-03015
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
50 rolls
Payment Terms :
L/C, T/T
Supply Ability :
200 rolls per Day
Delivery Time :
5-20 days after the deposit is received
Packaging Details :
Wrapped with water proof paper inside ,with meta l/ wood pallet outside,
Product name :
Grassland Farm Fence
Wire diameter :
2-4.0mm
Height :
0.6-2.5m
Space :
8cm, 15cm, 30cm etc
Length :
50m, 100m, 200m
Finishing :
Galvanized
Weave style :
Hinged Jointed Knot, fixed knot
Uses :
Animal Fence,road safety fence, forest fence
Description

Grassland Fence/ Field Fence / Farm Fence/ Knited Hinged Fencing

Grassland fences have innovative and firm structure, flat surface, uniform opening and good integration. This product offers good flexibility; good pressure resistance, corrosion resistance and weather resistance properties and can serve for a very long time.

Specifications:

Material: hot-dipped galvanized wire, which is made of Q235 iron rod.

Wire dia: 2mm

Horizontal wire Dia: 2.0mm Vertical wire dia:2.0mm, Selvage wire dia : 2.5mm

Fence height: 0.8m, 0.9m, 1.0m, 1.1m, 1.2m, 1.5m etc


Length: 50m, 100m , 200m


Distance: (vertical) 15-14-13-11-10-8-6cm; (horizontal) 15-18-20-40-50-60-65cm;

Structure: hinged joint Knot,ring-lock knot.

Finished: Electric / hot dipped Galvanized


Details Spec

Num Specification mesh Gross Weight
(kg)		 Set and bottom silk Diameter
(mm)		 In silk
Diameter
(mm)		 Volume diameter (mm)
Type Specification
1 7/150/813/50 102+114+127+140+152+178 19.3 2.5 2.0 270
2 8/150/813/50 89(75)+89+102+114+127+140+152 20.8 2.5 2.0 270
3 8/150/902/50 89+102+114+127+140+152+178 21.6 2.5 2.0 270
4 8/150/1016/50 102+114+127+140+152+178+203 22.6 2.5 2.0 270
5 8/150/1143/50 114+127+140+152+178+203+229 23.6 2.5 2.0 270
6 9/150/991/50 89(75)+89+102+114+127+140+152+178 23.9 2.5 2.0 270
7 9/150/1245/50 102+114+127+140+152+178+203+229 26.0 2.5 2.0 270
8 10/150/1194/50 89(75)+89+102+114+127+140+152+178+203 27.3 2.5 2.0 270
9 10/150/1334/50 89+102+114+127+140+152+178+203+229 28.4 2.5 2.0 270
10 11/150/1422/50 89(75)+89+102+114+127+140+152+178+203+229 30.8 2.5 2.0 270

For example , 7/150/813/50 ------ “7” means the horizontal wire quantity ,

“150” means the vertical wire spacing (mm),

“813” means the width of the wire mesh (mm),

“50” means the length of each roll (m) ,the length can be made according to your requirement .

Wire Distance, roll height and length can be customized

Feature:

It has excellent corrosion resistance and anti-oxidizing property. Unlike the welded wire mesh fences with the welding spots getting easily broken, our grassland fences are firm forever once installed and make the best materials for protecting grassland, animal, forestry, highway and environments.

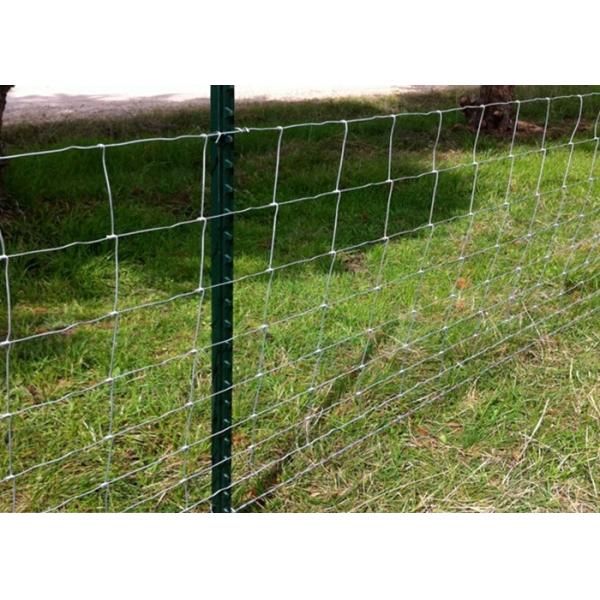

Application:

Used for grassland, breeding, forestry, cow, cattle, horse, goats, Pig, chicken, pultry, deer, animal husbandry, highway, isolation of sites etc.

Knited Hinged Farm Mesh Fencing For Forestry / Cow , 2mm Dia Wire

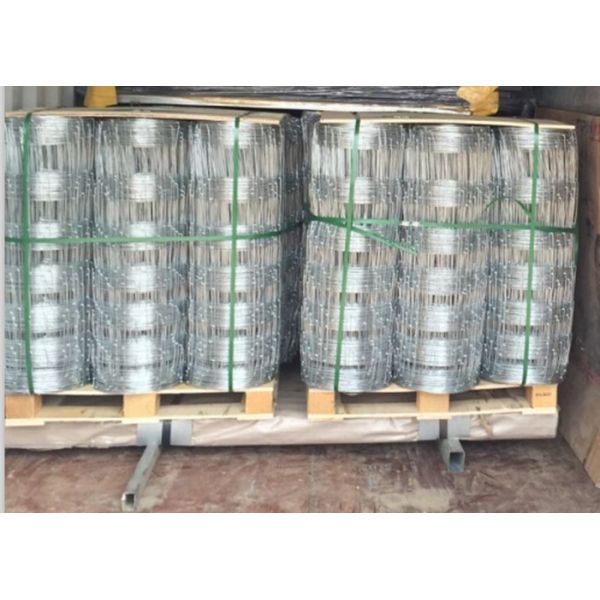

Packing:

(1) In nude , the loading capacity more than to the packing with pallets to reduce freight cost savings

(2) Plastic film, and then wooden or metal pallets , easy shipping, beautiful packaging costs will increase accordingly.

Knited Hinged Farm Mesh Fencing For Forestry / Cow , 2mm Dia Wire
