Animal Security Cages Welded Wire Mesh Rolls / Heavy Duty Wire Mesh Panels
Animal Security Cages Welded Wire Mesh Rolls / Heavy Duty Wire Mesh Panels
Animal Security Cages Welded Wire Mesh Rolls / Heavy Duty Wire Mesh Panels
Animal Security Cages Welded Wire Mesh Rolls / Heavy Duty Wire Mesh Panels
Animal Security Cages Welded Wire Mesh Rolls / Heavy Duty Wire Mesh Panels
Animal Security Cages Welded Wire Mesh Rolls / Heavy Duty Wire Mesh Panels
Specifications
Brand Name :
BROS
Model Number :
Bros-1110
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
30 rolls
Payment Terms :
L/C, T/T
Supply Ability :
300 rolls per week
Delivery Time :
5-25 days (Depend on your quantity)
Packaging Details :
Packed by water-proof paper then shrinked plastic bag or and then wooden pallet
Product name :
Welded wire mesh rolls
Weave Style :
welded wire mesh in roll
Technique :
welding & weaving
Wire Diameter :
2.0mm-5.5m
Finishing :
galvanized
Mesh Size :
50X150
Mesh Hole type :
square
application :
Protection mesh
Description

Welded Wire Mesh Rolls, Panels & Sheets For Animal Security Cages and Fencing

Product Introduction:

Welded wire mesh is welded by high-quality low-carbon steel wire , then electro galvanizing, hot-dip galvanizing,

PVC plastic coated ,surface passivation, plasticizing processing, flat surface, uniform mesh, solid solder joint, local

good machining performance, stability, corrosion, and corrosion resistance.

2 ) Welding style:

Hot dipped galvanized after or before welding

Electro galvanized after or before welding

Type: Galvanized 4x4 welded wire mesh, Stainless steel 4x4 welded wire mesh, PVC coated 4x4 welded

3) About zinc coated amount.

Electro galvanizing, uniform coating and thin thickness. Coating are usually only 3-15 microns with bright appearance. Common electro galvanized wire on zinc amount is 8-13 g/m².

Hot-dipped galvanized, coated thickness and nonuniform coating. Coating are usually 45-300 microns with darker color and good corrosion resistance. Hot-dip galvanized wire amout of zinc: 30-60 g/m²

4) Material: The low carton steel, electric-galvanized steel wire, hot-dip galvanized steel wire, pvc coated wire, stainless steel wire ect.

Length:30m,20m,2.4m,2m,or as per you request.

Width:1m,48",24" 3',4',5',

Surface treatment: Elec-galvanized, hot-dip galvanized, pvc coated, powder coating etc.

Feature: The structure of this kind of wire mesh is strong, lasting and rest-resistant.

5) Specifications

Galvanized Fencing Mesh:
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
2" x 3" 50mm x 75mm 2.0mm,2.5mm,1.65mm
3" x 3" 75mm x 75mm 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm
2" x 4" 50mm x 100mm 2.11mm,2.5mm
4" x 4" 100mm x 100mm 2.0mm,2.5mm
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.
Specification List of Welded Wire Mesh:
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
1/4" x 1/4" 6.4mm x 6.4mm 22,23,24
3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23
5/8" x 5/8" 16mm x 16mm 18,19,20,21,
3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21
1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21
1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19
1" x 2" 25.4mm x 50.8mm 14,15,16
2" x 2" 50.8mm x 50.8mm 12,13,14,15,16
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.8m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.
PVC Coated Welded Mesh:
Opening Wire Diameter<BWG>
In inch In metric unit(mm)
1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21
3/4" x 3/4" 19mm x 19mm 16,17,18,19,20,21
1" x 1" 25.4mm x 25.4mm 15,16,17,18,19,20
Technical Note:
1.Standard roll length: 30m;width: 0.5m to 1.2m
2.Special sizes available at request
3.Packing: in waterproof paper in rolls. Custom packing available at request.

Packing

Each welded wire mesh roll is wrapped with water proof paper or plastic shrink packing.

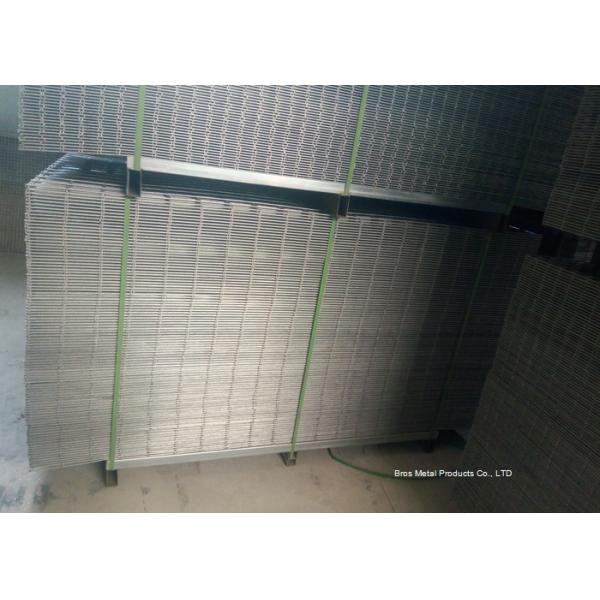

Welded wire mesh panel is pallets packing or in bulk

Special packing is ok as your request.

Animal Security Cages Welded Wire Mesh Rolls / Heavy Duty Wire Mesh Panels

Uses:

Welded wire mesh is used in industry and agriculture building, Transportation and mining for all such purposes as poultry houses, egg baskets, Runway enclosures, Draining rack, Fruit drying screen, Fence.

Animal Security Cages Welded Wire Mesh Rolls / Heavy Duty Wire Mesh Panels
