Specifications
Brand Name :
BROS
Model Number :
Bros-1003
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
20 coils
Payment Terms :
L/C, T/T
Supply Ability :
335 coils per Day
Delivery Time :
5-20 days after the deposit is received
Packaging Details :
In coil of 25 kilos or 50 kilos net, lined with P.V.C strips, then wrapped with P.V.C or hessian cloth.
Product Name :
Hot dipped gal. Barbed Wire Mesh
Material :
Low carbon steel wire
Wire Diameter :
1.0-3.5mm
Barb Length :
1.5-3cm
Barbed Spacing :
7.5-15cm
Surface Treatment: :
Galvanized or PVC coated
Coil weight :
25kg/ 50kg per roll
Uses :
industry, agriculture, animal husbandry, dwelling house, plantation or fencing.
Description

Hot Dipped Galvanized Barbed Wire Roll / Barbed Wiire Mesh Fence Design


Product Description

Barbed wire is a kind of modern security fencing materials fabricated with razor-sharp steel blade and high-tensile wire. Barbed wire can be installed to achieve the result of frightening and stopping to the aggressive perimeter intruders, with piecing and cutting razor blades mounted at the top of the wall, also the special designs making climbing and touching extremely difficult. The wire and strip are galvanized to prevent corrosion.

Material: Barbed wire, high quality low carbon steel wire,stainless steel wire ,cold galvanized, hot-dip galvanized,medium carbon steel wire,galvanized, PVC.
Type: double twisted barbed wire ,general barbed wire,single strand barbed wire, barbed wire.
barbed wire size: Common specs:10#x10#,12#x12#,12#x14#,14#x14#,14#x16#,16#x16#,16#x18#
Barbed distance :7.5-15/cm
Barbed length:1.5-3/cm


Feature

Galvanized barbed wire offers a great protection against corrosion and oxidation caused by the atmosphere. Its high resistance allows greater spacing between the fencing posts.


Specifications:

Gauge of
Strand and Barb in B. W. G.
Approximate Length per Kilo in Meter
Barbs Spacing 3" Barbs Spacing 4" Barbs Spacing 5" Barbs Spacing 6"
12x12 6.0617 6.7590 7.2700 7.6376
12x14 7.3335 7.9051 8.3015 8.5741
12-1/2x12-1/ 6.9223 7.7190 8.3022 8.7221
12-1/2x14 8.1096 8.814 9.2242 9.5620
13x13 7.9808 8.899 9.5721 10.0553
13x14 8.8448 9.6899 10.2923 10.7146
13-1/2x14 9.6079 10.6134 11.4705 11.8553
14x14 10.4569 11.6590 12.5423 13.1752
14-1/2x14-1/2 11.9875 13.3671 14.3781 15.1034
15x15 13.8927 15.4942 16.6666 17.5070
15-1/2x15-1/2 15.3491 17.1144 18.4060 19.3386


Type: double twisted barbed wire, general barbed wire, single strand barbed wire. PVC barbed wire

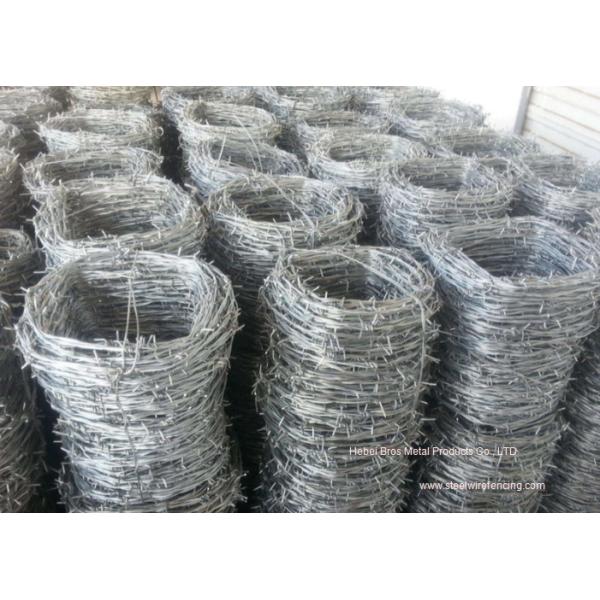

Packing

Barbed wire packaging is Plastic inside and hessian
outside or plastic inside and waving bag outside. 1)in nude
2)in iron axletree 3)in wood axletree; 4) in wood pallet

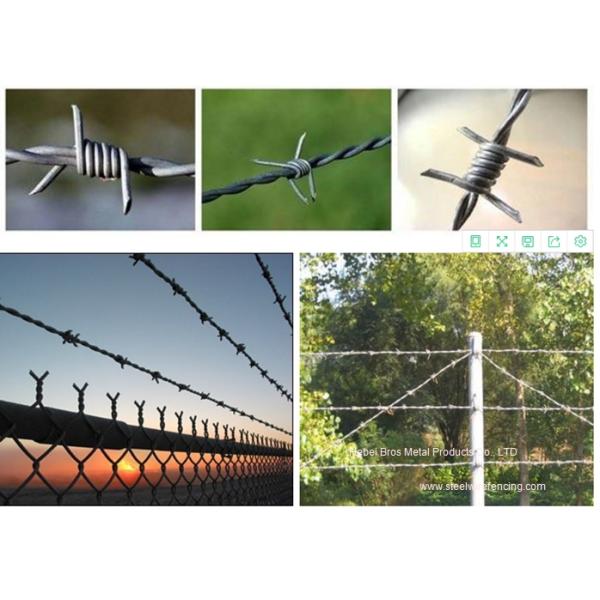

Application

Barbed wire can be widely used as accessories for woven wires fences to form a fencing system or security system. It is called barbed wire fences or barbed obstacles when it is used simply by itself along the wall or the building to give a kind of protection.

Barbed wire is also written as barbed tape as it is always used in a line to form a kind of tape.Galvanized barbed iron wire or PVC coated barbed wire are suitable for industry, agriculture, animal husbandry, dwelling house, plantation or fencing.


Hot Dipped Galvanized Barbed Wire Mesh Roll / Barbed Wire Mesh Fence Design

Hot Dipped Galvanized Barbed Wire Mesh Roll / Barbed Wire Mesh Fence Design
