Waved Galvanized Steel Sheet Plates For Roofing , Walls , Ceiling
Waved Galvanized Steel Sheet Plates For Roofing , Walls , Ceiling
Waved Galvanized Steel Sheet Plates For Roofing , Walls , Ceiling
Waved Galvanized Steel Sheet Plates For Roofing , Walls , Ceiling
Waved Galvanized Steel Sheet Plates For Roofing , Walls , Ceiling
Waved Galvanized Steel Sheet Plates For Roofing , Walls , Ceiling
Specifications
Brand Name :
BROS
Model Number :
Bros-0122
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
10 pcs
Payment Terms :
L/C, T/T, L/C, T/T
Supply Ability :
500 pcs per week
Delivery Time :
5- 20 days
Packaging Details :
Waterproof paper,galvanized steel covered and steel strip pcked with iron pallet
Product name :
Wave steel plate
Material :
Cold rolled steel / SGCC/CGCC
Type :
Roof sheet
Model Number: :
0.12-2.0mm*600-1250mm
Thickness :
0.12-1.2mm
Uses :
oofing building construction decoration wall
Description

Waved Galvanized Steel Sheet Plates For Roofing, Walls, Ceiling

) The material:SGCH(FULL HARD) SGCC DX51D.

2) The thickness: 0.13--0.80 mm

3) before width: 750--1000mm.

after width: 665--900mm.

4) Length : 1800mm--2500mm.

5) wave height: 18mm(+/-2)mm.

wave distance: 76.2mm (+/-3)mm.

6) Zinc coating: 60--150g/m2

7) Weight: 2--5 MT per pallet, iron pallets, very strong.

8) Packing: very strong & beautiful, export seaworty packing

9) characteristic: Chromated ,passivated,dry ,unoiled ,annealed ,regular spangle ,full hard

The Specification

Grade

 SGCC,SGCH ,DX51D,Q195
Thickness 0.125- 0.6mm
Width

762mm/680,670,660,655,650mm 9 waves

914mm/815,810,790,780mm 11 waves

1000mm/930 915,910,905,900,880,875mm 12 or 14 waves

OR OEM
Length 1.8- 5meters or as client’s request
Zinc Coating 40-275g/m2
Surface Big Spangle, Regular Spangle and Zero Spangle

Product High-strength Corrugated Galvanized Steel Plate with 8-12 Numbers of Waves
Base material Hot dipped galvanized steel sheet
Material Grade SGCC/DX51D+Z/SGCH
Thickness 0.12mm-1.2mm
Width 600mm-1250mm(or as per your requirement)
Tolerance

Thickness: +/-0.01mm

Width:+/-2mm
Zinc-coating 30g/m2-275g/m2
Technique Cold rolled—>hot dipped galvanizing—>corrugated
Terms

Wave height:18mm(+/-2)mm.

Wave distance:76mm (+/-3)mm.

Raw material width 762mm, after corrugated width 665mm: 9waves.

Raw material width 914mm ,after corrugated width 800mm:11 waves.

Raw material width 1000mm, after corrugated 890mm or 900mm :12 or 14 waves.

And so on.
Feature Roofing Steel Sheet have excellent performance of decoration, corrosion resistance etc.

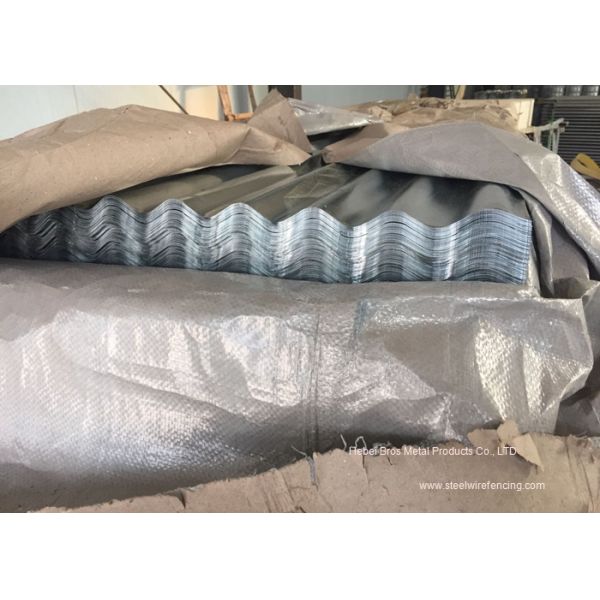

Export package Waterproof paper, galvanized steel covered and steel strip packed.

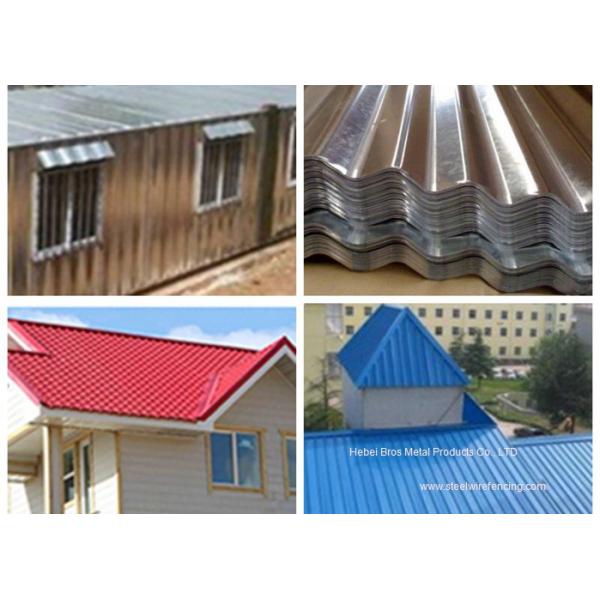

Application

1.Exterior decoration of buildings: Roof and wallboards of industrial, commercial,residential and public facilities.

2.Interior decoration of buildings: Wallboards, ceiling boards,partition boards, fireproof doors

3.Building accessories: Window panels, signboards.

4.Home appliances: Oil/gas boilers, rice buckets, portable gas burners.

Waved Galvanized Steel Sheet Plates For Roofing , Walls , Ceiling

Waved Galvanized Steel Sheet Plates For Roofing , Walls , Ceiling
