35W×K7 Compacted Strand Wire Rope 12mm with 1960N/mm² Tensile Strength for Rotary Drill Rigs
35W×K7 Compacted Strand Wire Rope 12mm with 1960N/mm² Tensile Strength for Rotary Drill Rigs
Specifications
Material :
steel wire rod
Nominal Diameter :
12 mm
Construction :
35W×K7
Application Fields :
rotary drilling rigs, rubber-tyred gantry cranes, port machinery, truck cranes under 80 tons, crawler cranes and other lifting equipment
Number Of Wires Per Strand :
7
Product Type :
Wire Rope
Tensile Strength :
1960N/mm²、2160N/mm²
Surface Treatment :
ungalvanized
Implementation standard :
GB／T 34198-2017
Brand Name :
Huayi
Model Number :
35W×K7
Place of Origin :
China
Number Of Outer Wires :
8 strands
Description
Rotary Drill Rigs Compacted Strand Wire Rope 35W*K7 12mm
Product Overview

35W*K7 - 12 rotary drilling rigs compacted strand wire rope designed for heavy-duty industrial applications requiring superior performance and durability.

35W×K7 Compacted Strand Wire Rope 12mm with 1960N/mm² Tensile Strength for Rotary Drill Rigs
Structural Characteristics

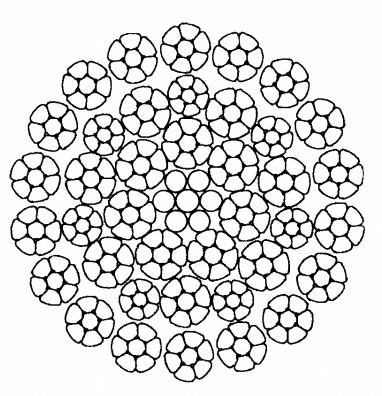

  • Strand Composition: "35W*K7" indicates 35 strands with 7 wires in each strand. "W" represents Warrington structure with wires arranged in combination of different thicknesses. "K" indicates compacted strand, generally cold-drawn with 10% compression rate.
  • Twisting Method: Typically uses opposite twisting directions for inner and outer strands. Inner layer is twisted first, followed by outer layer during production.
Performance Characteristics
  • Excellent Anti-rotation Performance: Opposite twisting directions of inner and outer layers effectively counteract rotational force, minimizing rotation during use.
  • High Breaking Force: Compacted strand process and combination of wire thicknesses result in higher metal filling coefficient, delivering greater breaking force than ordinary wire ropes.
  • Superior Wear Resistance: Minimal gaps between wires with smooth surface provides large contact area with pulleys or drums, offering higher wear resistance.
  • High Structural Stability: Compaction process ensures wires are arranged more closely, creating stable structure resistant to deformation under external forces.

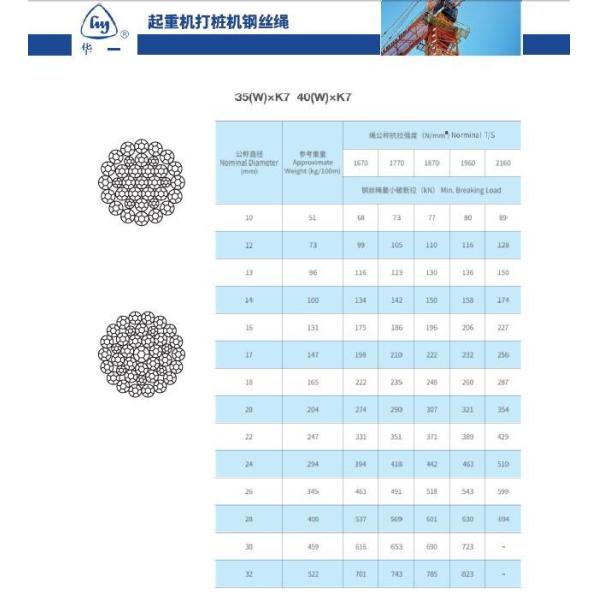

Technical Specifications
Diameter Specifications
14mm, 16mm, 18mm, 20mm, 26mm, 32mm, 36mm, 46mm
Material
High-quality carbon steel or alloy steel
Strength Levels
1960MPa, 2160MPa
Application Scenarios

Widely used in rotary drilling rigs, rubber-tyred gantry cranes, port machinery, truck cranes under 80 tons, crawler cranes and other heavy lifting equipment requiring reliable performance and durability.
