14mm 35W×K7 Compacted Strand Wire Rope with 8 Strands for Rotary Drill Rigs
14mm 35W×K7 Compacted Strand Wire Rope with 8 Strands for Rotary Drill Rigs
Specifications
Material :
steel wire rod
Nominal Diameter :
14 mm
Construction :
35W×K7
Application Fields :
rotary drilling rigs, rubber-tyred gantry cranes, port machinery, truck cranes under 80 tons, crawler cranes and other lifting equipment
Number Of Wires Per Strand :
7
Product Type :
Wire Rope
Tensile Strength :
1960N/mm²、2160N/mm²
Surface Treatment :
ungalvanized
Implementation standard :
GB／T 34198-2017
Number Of Outer Wires :
8 strands
Brand Name :
Huayi
Model Number :
35W×K7
Place of Origin :
China
Description

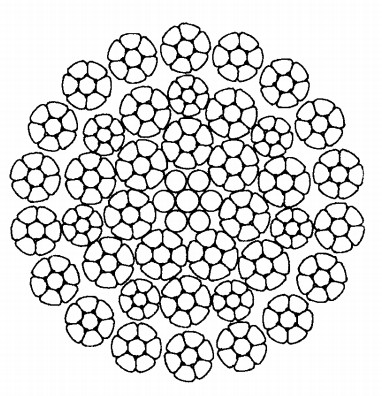

14mm 35W*K7 Compacted Strand Wire Rope 8 Strands Rotary Drill Rig
35W*K7 - 14 rotary drilling rigs
14mm 35W×K7 Compacted Strand Wire Rope with 8 Strands for Rotary Drill Rigs
Structural Characteristics
  • Strand Composition: "35W*K7" indicates 35 strands with 7 wires in each strand. "W" represents Warrington structure with wires arranged in combination of different thicknesses. "K" indicates compacted strand, generally cold-drawn with 10% compression rate.
  • Twisting Method: Typically uses opposite twisting directions for inner and outer strands. During production, inner layer is twisted first, followed by outer layer.
Performance Characteristics
  • Excellent Anti-rotation Performance: Opposite twisting directions effectively counteract rotational force, minimizing rope rotation during use.
  • High Breaking Force: Compacted strand process and combination of wire thicknesses result in higher metal filling coefficient and greater breaking force compared to ordinary wire ropes.
  • Superior Wear Resistance: Small gaps between wires and smooth surface provide large contact area with pulleys/drums, offering higher wear resistance.
  • High Structural Stability: Compacted wires are arranged more closely, creating stable structure resistant to deformation under external forces.
Specification Dimensions
Common diameter specifications: 14mm, 16mm, 18mm, 20mm, 26mm, 32mm, 36mm, 46mm, etc.
Application Scenarios
Widely used in rotary drilling rigs, rubber-tyred gantry cranes, port machinery, truck cranes under 80 tons, crawler cranes and other lifting equipment.
Material and Strength
Manufactured using high-quality carbon steel or alloy steel. Typical strength grades: 1960MPa, 2160MPa.
