6×29F-IWRC 13mm Steel Wire Rope with 1770N/mm² Tensile Strength for Lifting and Hoisting
6×29F-IWRC 13mm Steel Wire Rope with 1770N/mm² Tensile Strength for Lifting and Hoisting
Specifications
Material :
steel wire rod
Construction :
6×29F-IWRC
Application Fields :
Elevator Industry、Lifting and Hoisting Operations、Mechanical Transmission
Number Of Wires Per Strand :
29
Nominal Diameter :
13 mm
Number Of Outer Wires :
6 strands
Brand Name :
Huayi
Model Number :
6×29F - IWRC
Place of Origin :
China
Product Type :
Wire Rope
Tensile Strength :
1770N/mm²、1870N/mm²、1960N/mm²
Surface Treatment :
ungalvanized
Implementation standard :
GB／T 34198-2017
Description
Lifting And Hoisting Line Contact Wire Rope 6*29F-IWRC 13mm
Product Overview

6*29F-IWRC - 13 industrial tire wire rope designed for heavy-duty lifting and hoisting applications.

6×29F-IWRC 13mm Steel Wire Rope with 1770N/mm² Tensile Strength for Lifting and Hoisting

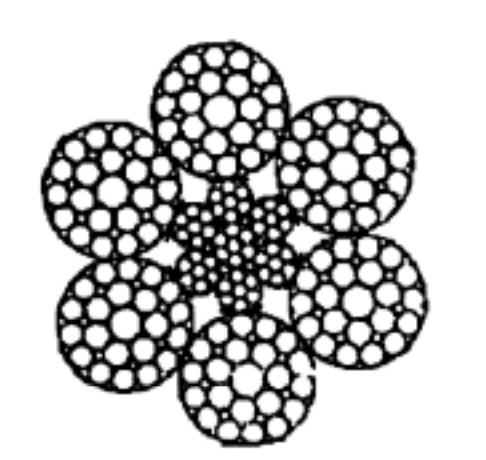

Structural Characteristics
  • Strand Composition: "6*29F" indicates 6 strands with 29 wires per strand in filler construction. Features line contact design with main wires and filler wires arranged compactly.
  • Core Type: "IWRC" (Independent Wire Rope Core) provides internal support, enhancing overall strength and flexibility.
Performance Characteristics
  • High Bearing Capacity: Line-contact structure minimizes contact stress between wires, allowing full utilization of bearing capacity and high breaking force.
  • Excellent Wear Resistance: Closely arranged wires with smooth surface ensure uniform wear when contacting pulleys and drums.
  • Moderate Flexibility: Balanced softness for easy bending and winding while maintaining structural stability in lifting equipment.
Specification Dimensions

Common diameter range: 10mm to 40mm

Available Sizes
12mm, 13mm, 16mm, 20mm, 24mm, 32mm, 36mm, and other standard diameters
Application Scenarios
  • General lifting, hoisting, and traction operations
  • Construction material hoisting
  • Port terminal cargo handling
  • Underground mining hoisting equipment
  • Crane hoisting ropes and luffing ropes
Material and Strength

Material: High-quality carbon steel wires with appropriate heat treatment and surface treatment processes

Strength Levels: 1770MPa, 1870MPa, 1960MPa
