Orange PVC and Rubber Solid Float Oil Containment Boom for Marine Oil Spill Response
Orange PVC and Rubber Solid Float Oil Containment Boom for Marine Oil Spill Response
Orange PVC and Rubber Solid Float Oil Containment Boom for Marine Oil Spill Response
Orange PVC and Rubber Solid Float Oil Containment Boom for Marine Oil Spill Response
Orange PVC and Rubber Solid Float Oil Containment Boom for Marine Oil Spill Response
Orange PVC and Rubber Solid Float Oil Containment Boom for Marine Oil Spill Response
Orange PVC and Rubber Solid Float Oil Containment Boom for Marine Oil Spill Response
Orange PVC and Rubber Solid Float Oil Containment Boom for Marine Oil Spill Response
Orange PVC and Rubber Solid Float Oil Containment Boom for Marine Oil Spill Response
Orange PVC and Rubber Solid Float Oil Containment Boom for Marine Oil Spill Response
Specifications
Transport Package :
Bag
Specification :
JB280
Trademark :
Jiubei
Origin :
China
HS Code :
3926909090
Supply Ability :
5000m Per Month
Certification :
ISO9001:2015, ISO14001:2015
Material :
Plastic
Color :
Orange
Accessories :
Anchor, Rope
Mooring Chain Dia :
8mm
Per Unit Length :
20m/Unit
Samples :
US$ 30/Meter 1 Meter(Min.Order) | Request Sam
Customization :
Available | Customized Request
Place of Origin :
China
MOQ :
1 unit
Price :
Negotiable
Payment Terms :
LC, T/T
Description
Product Description

PVC Silt Curtain

PVC Silt Curtain are essential equipment for preventing and controlling oil spill and dredging project pollution in water areas. To prevent and control oil spill pollution, the first step is to prevent the spread of oil spills, and currently, PVC silt curtain are widely used to intercept oil spills. The oil containment fence can not only intercept oil spills, but also guide them and concentrate them as much as possible for further recovery and treatment.

Specifications:
Name/Model
 PVC Silt Curtain
WGV1500 WGV1100 WGV1000 WGV750 WGV600
Total Height 1500mm 1100mm 1000mm 750mm 600mm
Free board 460mm 360mm 320mm 260mm 130mm
Draft 800mm 560mm 520mm 390mm 380mm
Unit length 20m
Connection The tent buckle type threading joint has good sealing performance and convenient connection. The joint of the same type of oil fence has complete interchangeability
Skirt material Oil resistant, weather resistant, UV resistant, wear-resistant, corrosion-resistant, and seawater resistant PVC cloth
Color Orange red high-strength PVC cloth
Float Built in cylinder foam floating body Built in cylinder foam floating body Built in cylinder foam floating body Built-in water droplet floating body Built in cylinder foam floating body
Float Length 1100mm 1100mm 1100mm 1100mm 750mm
Weight 10.5kg/m 8.5kg/m 6.75kg/m 4.9kg/m 2.375kg/m
Total Buoyancy 870kN/m 0.68 kN/m 0.43kN/m 0.22kN/m 0.135kN/m
Total buoyancy to weight ratio 8.45:1 8.1:1 7.6:1 4.6:1 5.8:1
Waterline section width 197mm 165mm 150mm 135mm 120mm
Vertical center of gravity 1080mm 720mm 540mm 440mm 370mm
Counterweight materials 13mm welding chains 12mm welding chains 10mm welding chains 8mm welding chains 6mm welding chains
Counterweight 3.61 kg/m 3.16 kg/m 2.16kg/m 1.39kg/m 0.78kg/m

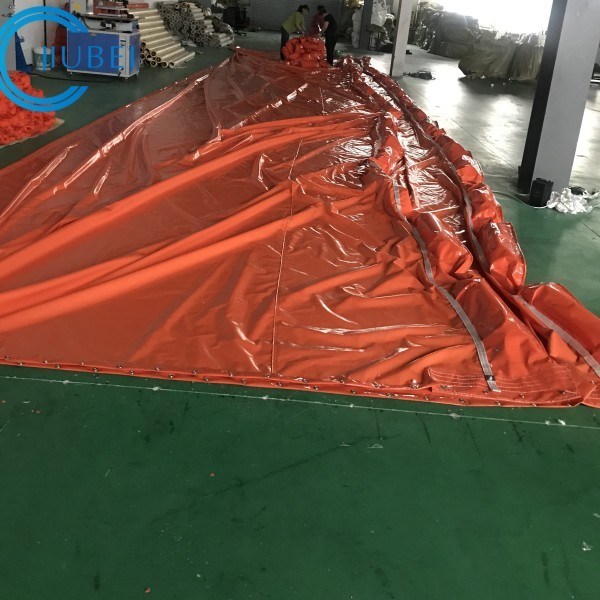

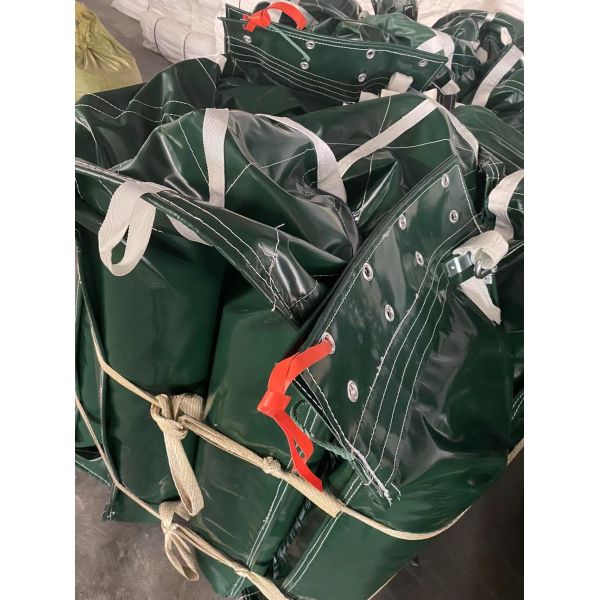

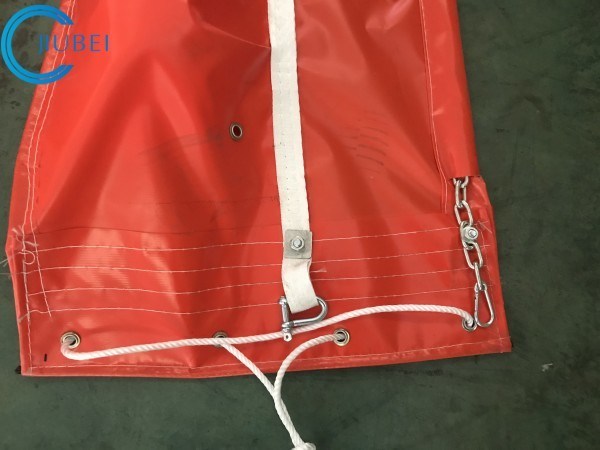

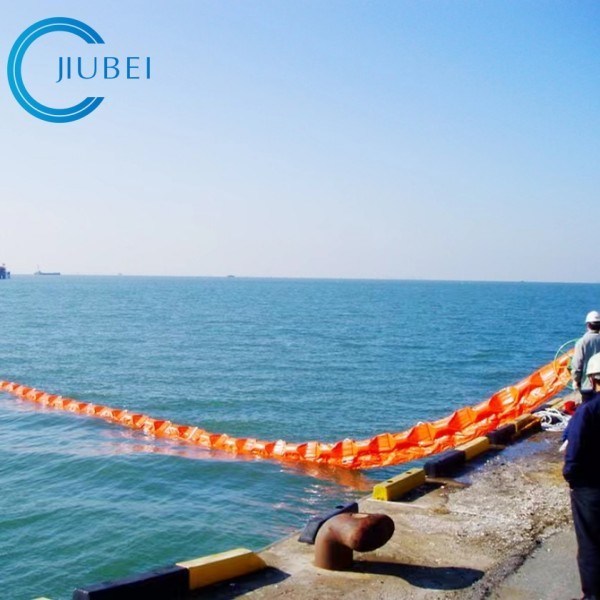

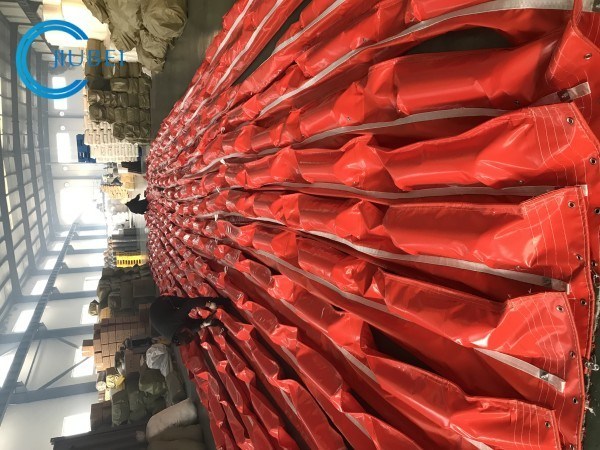

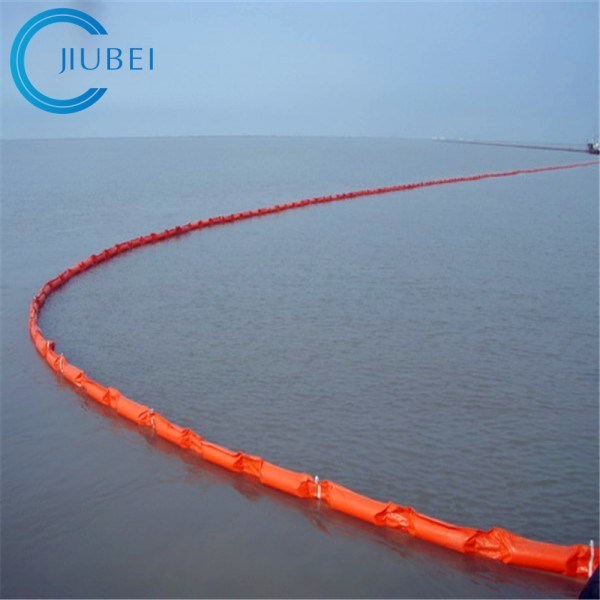

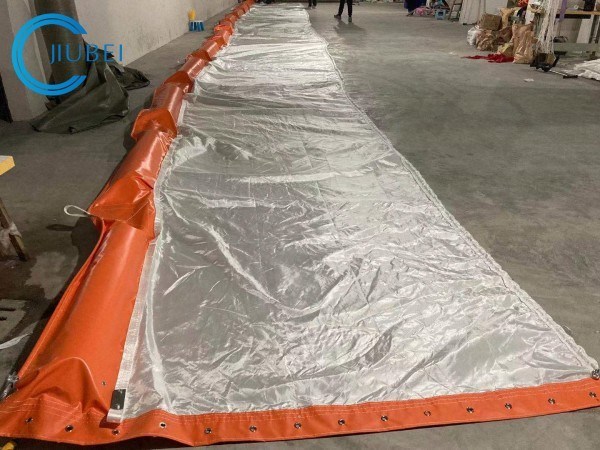

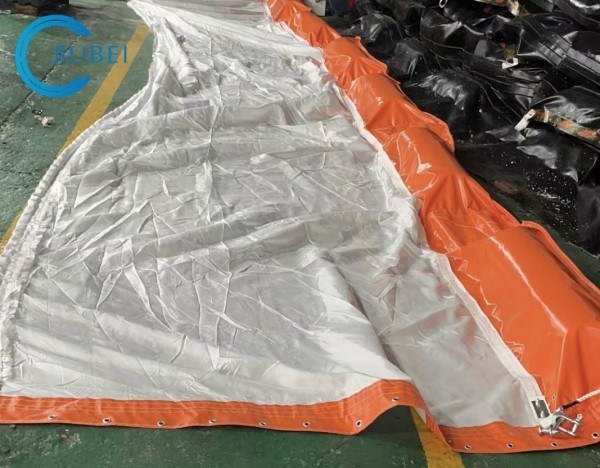

Detailed Photos

Orange PVC and Rubber Solid Float Oil Containment Boom for Marine Oil Spill ResponseOrange PVC and Rubber Solid Float Oil Containment Boom for Marine Oil Spill ResponseOrange PVC and Rubber Solid Float Oil Containment Boom for Marine Oil Spill ResponseOrange PVC and Rubber Solid Float Oil Containment Boom for Marine Oil Spill ResponseOrange PVC and Rubber Solid Float Oil Containment Boom for Marine Oil Spill ResponseOrange PVC and Rubber Solid Float Oil Containment Boom for Marine Oil Spill ResponseOrange PVC and Rubber Solid Float Oil Containment Boom for Marine Oil Spill Response

Orange PVC and Rubber Solid Float Oil Containment Boom for Marine Oil Spill Response
One-Stop service of dredging pipeline and accessories---Shandong Jiubei Trading Co.,Ltd

Shandong Jiubei Trading Co.,Ltd is a trading company, located at the famous water city -Liaocheng, which mainly focus on supplying the products of dredging materials: PE float, wear resistant PE/UHMWPE dredging pipeline, heavy duty rubber dredging hose, navigation and mark buoys , silt curtains and so on. The company established in 2018, with 5 senior engineers, and one inspection team and one export team, our target is to offer clients with one stop service from designing to collecting goods.

Our Benefits:

1, We have been worked in this field for more than 10 years, and have very rich workshop sources, familiar with each workshop's advantage, will help you find the most suitable product.

2, We have inspection team, since we get your order, our inspection people will follow on your goods' production process and quality,for production process, each day we have production status update; for inspection, we have raw material inspection, first goods inspection, random inspection and ex-works inspection as well as other tests for the exact goods.

3, We have professional and experienced export team to handle the export issues.



Our Company promises: Qualified goods,reasonable price, delivery in time, and satisfied after-sales service!

Wish to be your cooperator in China!
