Insulated Sandwich Roof Prefabricated Light Structural Steel Structure Warehouse Construction
Insulated Sandwich Roof Prefabricated Light Structural Steel Structure Warehouse Construction
Insulated Sandwich Roof Prefabricated Light Structural Steel Structure Warehouse Construction
Insulated Sandwich Roof Prefabricated Light Structural Steel Structure Warehouse Construction
Insulated Sandwich Roof Prefabricated Light Structural Steel Structure Warehouse Construction
Insulated Sandwich Roof Prefabricated Light Structural Steel Structure Warehouse Construction
Insulated Sandwich Roof Prefabricated Light Structural Steel Structure Warehouse Construction
Insulated Sandwich Roof Prefabricated Light Structural Steel Structure Warehouse Construction
Specifications
Brand Name :
KXD
Model Number :
S-0072
Certification :
CE, ISO, SGS
Place of Origin :
Qingdao, China
MOQ :
500 square meters
Price :
US$ 50-80 per square meter
Payment Terms :
L/C,T/T
Supply Ability :
3000 tons per month
Delivery Time :
30-40 working days
Packaging Details :
bulk for steel panels, steel pallet for steel structure, wooden box for small installing accessories
Installation :
Free Installing drawing details & Quick on-line technical guide
Prefabrication :
Off-site in workshop & Ready for direct installation
Connection :
High Strength Bolt connected
Visit :
Workshop Visit And Quality Check
Turnkey Project :
Acceptable
Design :
Custom with Free Architectural design
Dimensions :
Customers' Requirement
Door :
Sliding door or rolling up door
Color :
Client's Request
Surface :
Hot-dip Galvanized / Painted
Frame :
Steel structure
Lifetime :
over 50 years
Structure Type :
High Strength Steel Structure Frame
Third Party Test :
SGS, BV, ITS
Description

Prefabricated steel structure building is manufactured and constructed using prefabrication. It consists of factory-made components or units that are transported and assembled on-site to form the complete building.

Steel Structure System

Specification

Main Steel Frame

Column

Q235b, Q355b ,H Steel, Box Steel, RHS, SHS, CHS

Beam

Q235b, Q355b ,H Steel, Box Steel, RHS, SHS, CHS

Secondary Frame

Purlin

Q235b C / Z Purlin, SHS, RHS

Knee brace

Q235b Angle Steel

Tie beam

Q235b Circular Steel Pipe

Brace

Q235b Round Bar

Vertical and Horizontal Support

Q235b Angle Steel, Round Bar or Steel Pipe

Maintenance system

Roof Panel

PPGI PPGL Steel Sheet

Insulated Sandwich Panel (EPS /Glass Fiber /
Rock Wool / PU)

Wall Panel

Accessories

Window

Aluminum Alloy Window / PVC Window

Door

Sliding Door / Rolling Up Shutter / Man Door

Rain-spout

PVC-U

Option

Parapet; Canopy; Shed;

Glass Curtain Wall; Aluminum wall panel

Insulated Sandwich Roof Prefabricated Light Structural Steel Structure Warehouse Construction

Steel structures typically feature shapes such as H profile, I-beams, hollow structural sections (HSS), channels, angles, and plates.

The main type of steel structure are the frame structure, the truss structure, the grid structure, the arch structure, and the portal rigid steel frame.

Additionally, steel structure has a steel arch structure, arch bridge, beam bridge, cable-stayed bridge, and suspension bridge.

Each type has its unique advantages and applications, making steel a versatile material in construction.


Steel structure load-bearing:

The frame load-bearing structure is a load-bearing system composed of a horizontal frame and a longitudinal connecting member, and the wall only serves as an enclosure. It is suitable for large spans, high plants, and large crane loads. The load-bearing framework is made of steel plate or hot-rolled steel through cutting and welding.


Insulated Sandwich Roof Prefabricated Light Structural Steel Structure Warehouse Construction

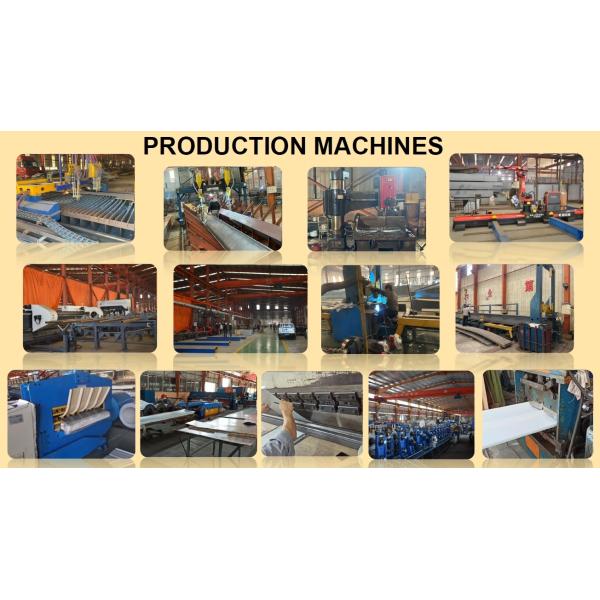

Our Machines and production lines show:

Insulated Sandwich Roof Prefabricated Light Structural Steel Structure Warehouse Construction

Welding Process of Manual arc welding

Preparation for operation → Arc welding (downward welding ,vertical welding, overhead welding, horizontal welding) → Weld line inspection

Connection Process of Torsional shear type high-strength bolt

Preparation for operation → Select and match bolts → Assembly of joints → Temporary bolts of the device → High-strength bolts of the device → Tighten the high-strength bolts → Final inspection

Manufacturing Process of steel roof truss

Processing preparation and blanking → Processing parts → Small device (small assembly) → General device (general assembly) → Roof frame welding → Support joint plate, purlin, angle device, welding → Product inspection → Rust removal, Paint&Number

Steel structure anti-corrosion coating process

Base surface cleaning → Primer coating processing → Topcoat coating processing→ Inspection

Technical Process of steel structure fire-proof coating

Preparation → Batching, mixing of Fire retardant coating → spraying → Inspection


With rich experience of various type steel buildings, we have been successfully completing overseas projects in North America, South America, South Asia and Africa countries.

Insulated Sandwich Roof Prefabricated Light Structural Steel Structure Warehouse Construction

Insulated Sandwich Roof Prefabricated Light Structural Steel Structure Warehouse Construction
