Q355 Q235B Metal Building Steel Structure Warehouse Prefab Steel Structure
Q355 Q235B Metal Building Steel Structure Warehouse Prefab Steel Structure
Q355 Q235B Metal Building Steel Structure Warehouse Prefab Steel Structure
Q355 Q235B Metal Building Steel Structure Warehouse Prefab Steel Structure
Q355 Q235B Metal Building Steel Structure Warehouse Prefab Steel Structure
Q355 Q235B Metal Building Steel Structure Warehouse Prefab Steel Structure
Specifications
Brand Name :
JinHongTong
Certification :
CE (EN 1090)，ISO 9001 / 14001 / 45001，AISC Standard，SABER / SASO / SABS，EN 10204 3.1 Material Certificate，ISO 3834 Welding Quality System
Place of Origin :
China
Price :
USD 20-100 per square meter
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
Annual production capacity: 20,000 ㎡ - 30,000 ㎡ of steel structure buildings.
Delivery Time :
5-8 work days
Packaging Details :
Waterproof plastic film + steel strip bundling + wooden pallets.Seaworthy export packing.
Warranty :
5 years
Structure Type :
Light Steel Structure
Project :
Steel Structure
Wall And Roof :
Sandwich panel or steel sheet
Fireresistance :
Up to 2 hours
Processing Service :
Bending, Welding
Main Frame :
Solid H-shape Steel Beam
Production :
50000tons/Year
Material :
Steel
Accessory :
According To Your Request
Corrosionresistance :
High
Sample Time :
7 Days If Standard Parts We Have
Base Fabric :
glass fabric
Design Parameter :
Wind Load, Snow Load and Earthquake
Steel Grade :
Q355 Q235B
Description
Steel Structure Warehouse Design Metal Building Steel Structure Warehouse Prefab Steel Structure Professional
Complete One-Stop Solution
  • Structural design safety certificates and comprehensive design solutions
  • Cost reduction through reasonable budgeting and shortened project duration
  • Full-process project management from order receipt to design, production, quality control, packaging, delivery, and installation guidance
Solutions for Common Challenges
Design Standards Compatibility

Our engineering team is familiar with local building codes and design standards, ensuring compliance and compatibility.

Quality Assurance

Comprehensive quality control with focus on welding and grinding processes, supported by relevant patents and certifications.

Installation Support

Complete installation drawings and technical guidance provided for smooth on-site assembly.

Product Specifications & Technical Details
Steel Grade: Q355B / Q235B high-strength structural steel - Ensures structural safety and stability, compliant with international standards.
Surface Treatment: Hot-dip galvanizing / Antirust paint - Excellent anti-corrosion performance, extending building lifespan and reducing maintenance costs.
Connection Methods: High-strength bolts / Welding - Prefabricated components with high-strength bolts for fast installation; professional welding at key stress points for maximum strength.
Enclosure System: Color steel plate / Sandwich panel - Provides excellent thermal insulation, soundproofing, aesthetic appeal, and easy maintenance.
Structure Material Details
Main Structure Frame Columns and Beams Q235B/Q355B
End Wall Column Q235B/Q355B
H-beam welding Automatic Submerged Arc Welding
Rust Removal Shot Blasting
Surface Processing Alkyd Paint/Epoxy Zinc Rich/Galvanized
High-Strength Bolt Grade 10.9/8.8
Common Bolt Grade 4.8
Secondary Structure Flange Brace Angle Steel
Horizontal Support Angle/Round Steel
Vertical Support Angle/Round Steel
Tie Rod Angle/Round Steel
Tie Bars Round Steel/Casing/Shaped Steel
Purlin Galvanized Z-beam/C-beam
Enclosure System Roofing Materials 360°Locking Seam System / Locking Screw System / Composite Panel Roofing / Rockwool Maintenance System
Daylighting Band FRP Plate
Gutter Stainless Steel/Colored Steel Plate
Rain Pipe PVC Pipe/Colour Steel Rainwater Pipe
Wall Materials Locking Screw System / Composite Panel Wall / Rockwool Maintenance System
Others Ventilator Powered/Unpowered Axial Flow Ventilators - Customizable
Ventilation tower Finished Product - Customizable
Door Electric Rolling Door/Sliding Door/Fireproof door - Customizable
Window Aluminum Alloy/Plastic Steel Window/Fireproof Window - Customizable

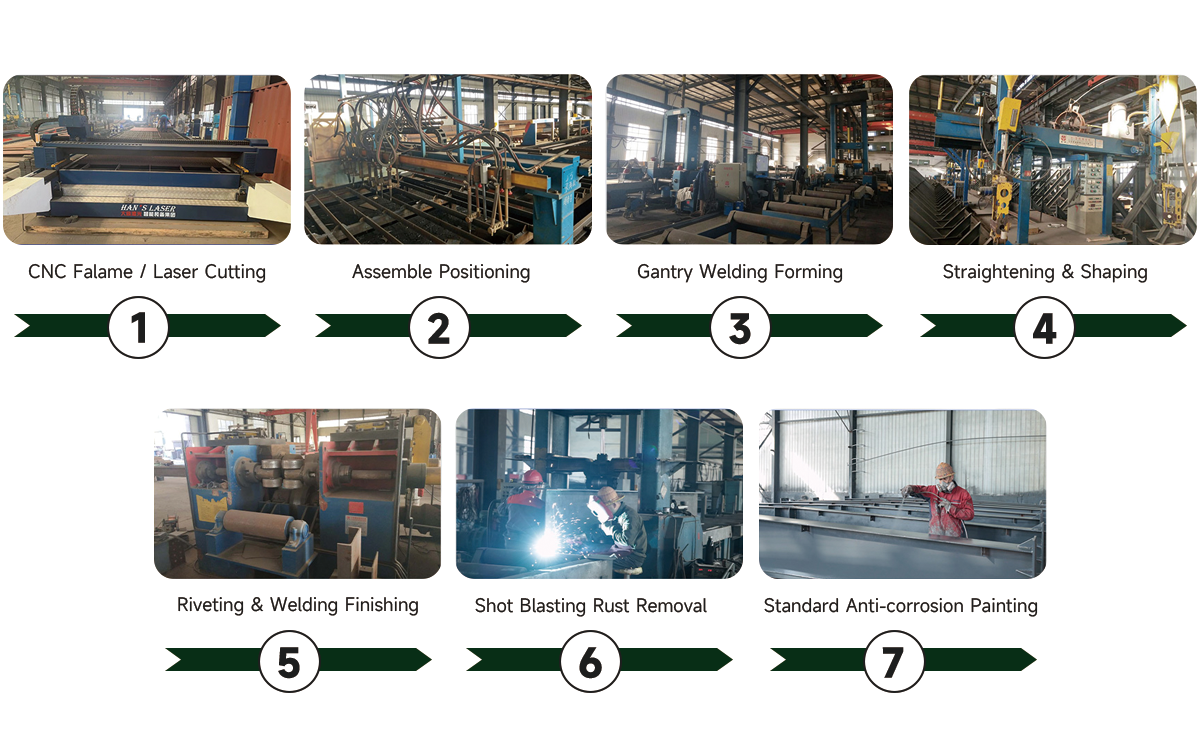

Production Workflow
Q355 Q235B Metal Building Steel Structure Warehouse Prefab Steel Structure
Our Competitive Advantages
Comprehensive Material Supply

We provide all materials needed for steel structure buildings, including main structure, secondary structure, and maintenance structure components. Our own factory in China ensures guaranteed quality of raw materials like carbon steel.

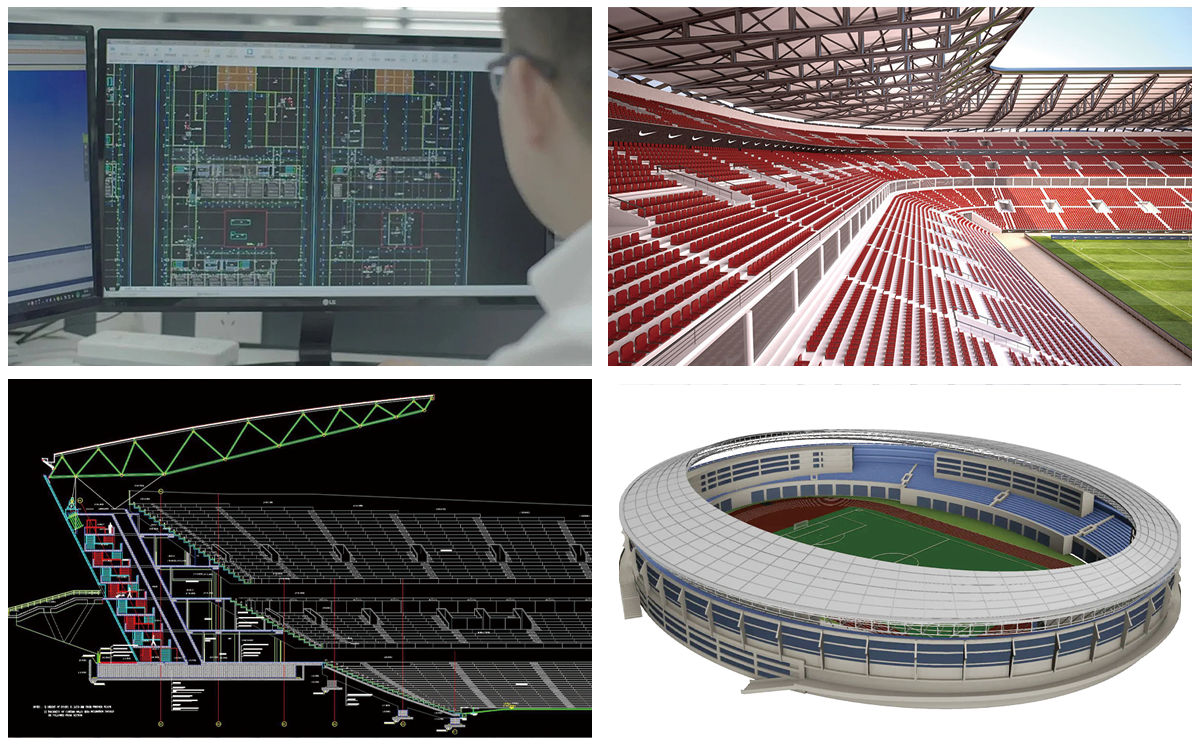

Professional Engineering Design

Our 20+ years experienced design team creates customized plans based on your requirements, providing installation drawings and allowing you to visualize the completed building.

Complete Project Management

One-stop service to handle your entire project from concept to completion.

Superior Structural Performance

Buildings designed to withstand extreme natural conditions including wind, snow, seismic events, and fire, ensuring long-term stability and durability.

Q355 Q235B Metal Building Steel Structure Warehouse Prefab Steel Structure

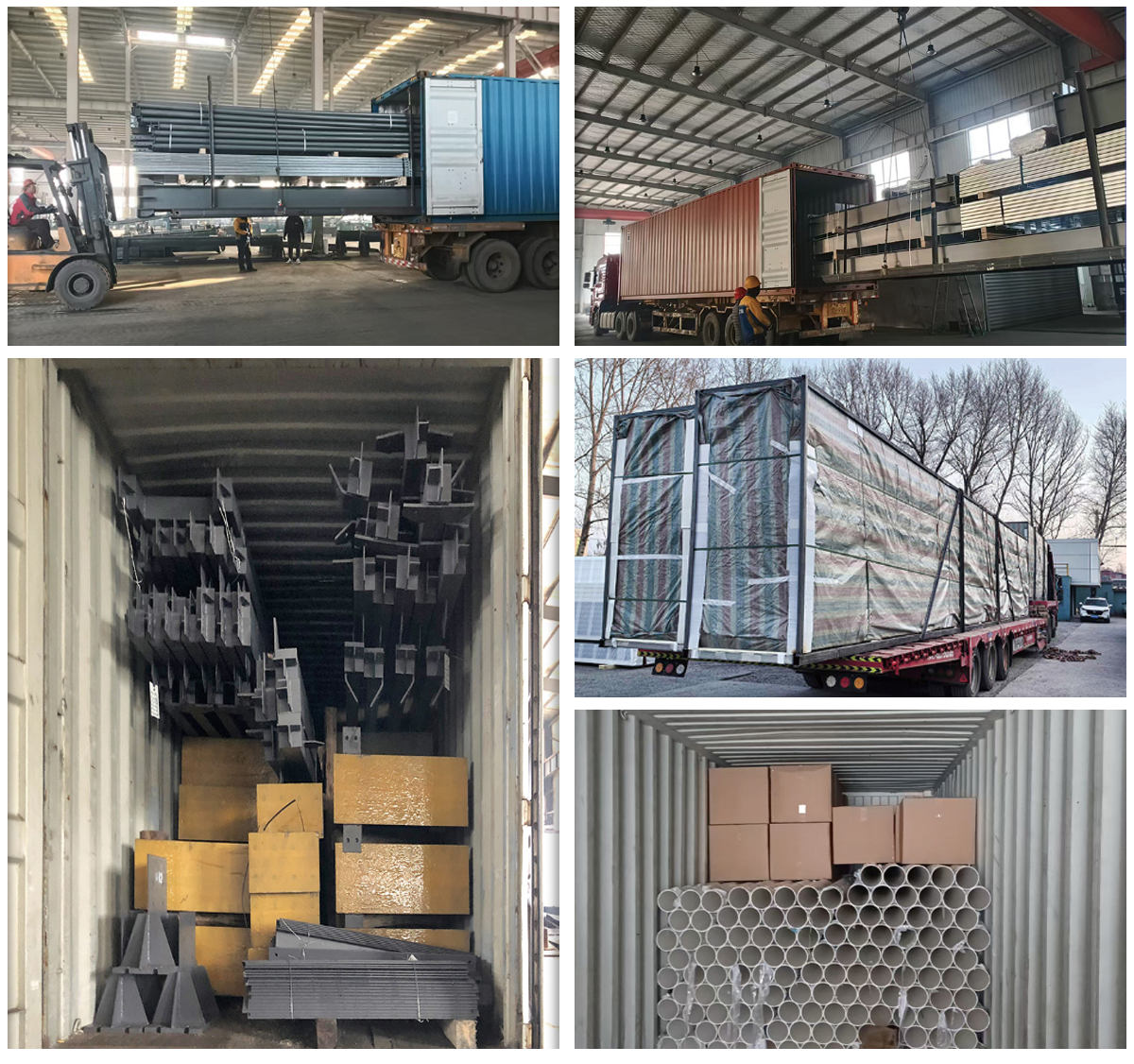

Packaging & Shipping Specifications
Q355 Q235B Metal Building Steel Structure Warehouse Prefab Steel Structure
