Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure
Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure
Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure
Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure
Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure
Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure
Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure
Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure
Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure
Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure
Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure
Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure
Specifications
Brand Name :
LANJING
Model Number :
LJ-CH-026
Certification :
CE\ISO45001\ISO9001
Place of Origin :
China
MOQ :
1000sqm
Price :
35-55＄
Payment Terms :
T/T
Supply Ability :
40,000 Tons per year
Delivery Time :
45days
Packaging Details :
Single Item
Flexible Expansion :
Modular structure
Professional Services :
One-stop design service provided
Drawing design :
SAP2000/AutoCAD /PKPM /3D3S/TEKLA
Product Name :
Prefabricated Steel Chicken house
Main Structure :
High-strength hot-dip galvanized steel frame
Breeding Space :
Length customized according to breeding scale
Environmental Control :
Integrated side wall roll-up ventilation windows
Enclosure Insulation :
Rock wool/glass wool sandwich panel walls and roof
Biosecurity :
Smooth and easy-to-clean interior wall panels
Automated Support :
Pre-installed feeding lines, water lines
Load Design :
Wind load ≥ 0.5 kN/m², snow load ≥ 0.3 kN/m²
Pest Prevention Design :
Enclosed structure, standard with bird net and rodent-proof board
Quick Installation :
Standard chicken coop in approximately 30-50 days
Compliance Certification :
ISO 9001 Quality Management System certified
Description

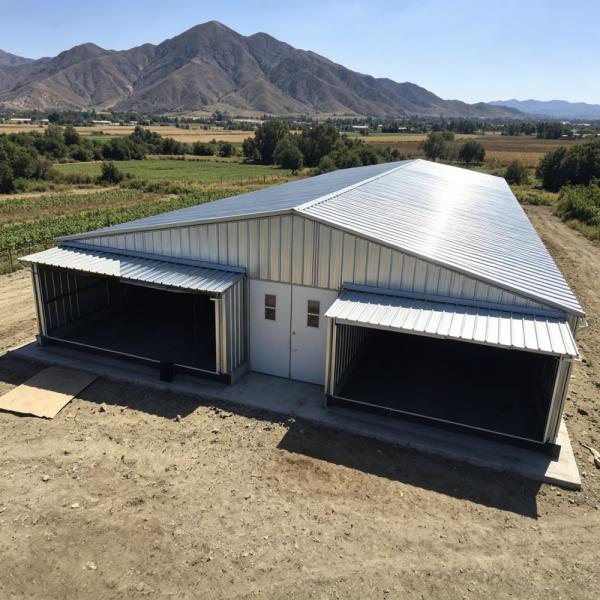

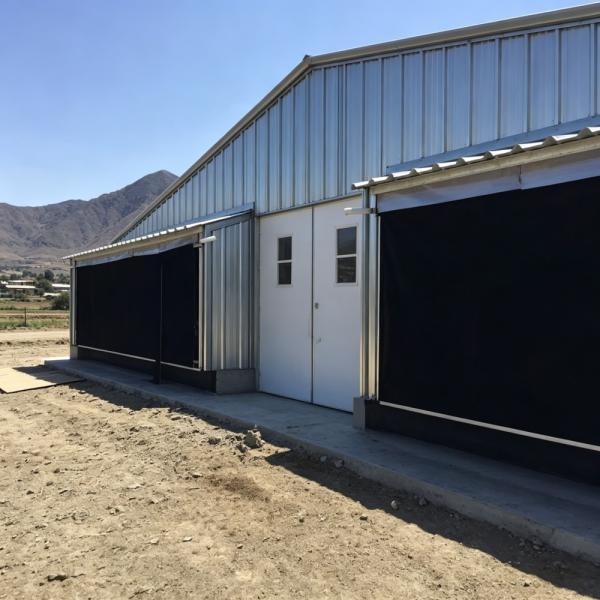

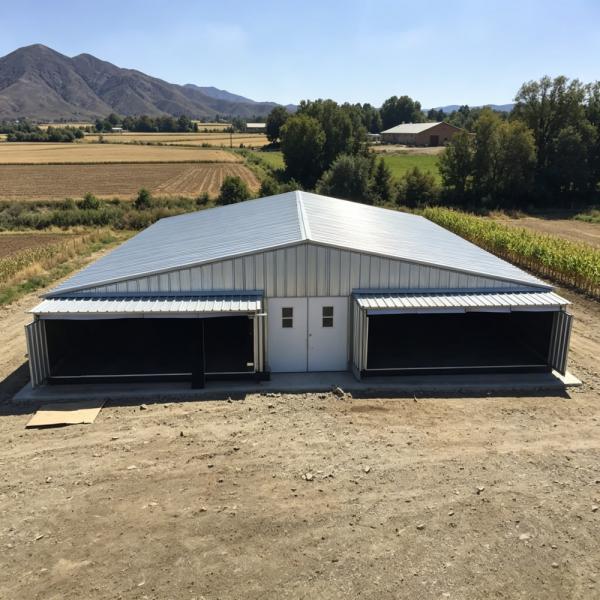

Prefabricated Chicken House - Long Service Life Steel Construction
Our prefabricated chicken houses are engineered for durability, efficiency, and optimal poultry health. Built with hot-dip galvanized steel featuring double anti-corrosion treatment (zinc coating ≥80μm), these structures offer exceptional longevity and performance.
Structural Advantages
Weather Resistance
Rated for 10-grade wind resistance and excellent snow pressure resistance with B1-grade fire-retardant design.
Long Service Life
15-20 year service life reduces frequent renovation costs and maintenance requirements.
Modular Design
Lightweight modular structure adapts to various terrains including plains and mountainous areas.
Environmental Control Systems
Ventilation System
Professional ventilation (skylight + side window + negative pressure fan) reduces ammonia concentration and respiratory diseases.
Thermal Insulation
50-100mm rock wool insulation maintains optimal temperatures year-round, improving chick survival and laying rates.
Hygienic Flooring
Anti-slip cement slope floor with pre-buried drainage ditch ensures dry, hygienic conditions and reduces epidemic risks.
Automation & Customization
We support customized multi-layer cage racks and reserved interfaces for automatic feeding/drinking systems, significantly reducing labor costs while improving breeding density.
Installation & Cost Benefits
  • 70% factory-prefabricated components with bolt-spliced installation
  • 3-7 day installation period (60% faster than traditional coops)
  • No large hoisting equipment required
  • 25% reduction in transportation costs
  • 40% lower overall cost compared to brick-concrete structures
  • Detachable design allows easy relocation for farm expansion
Customization Options
Parameter Range
Span 4-20m adjustable
Eave Height 2.5-4.5m
Enclosure Materials Color steel plates or FRP tiles
Design Options Single-building or connected-building designs
Additional Areas Feed rooms, disinfection rooms, and other functional areas
Product Gallery
Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure Hot-Dip Galvanized Steel Prefabricated Chicken House with 15-20 Year Service Life and Modular Structure
Our prefabricated chicken houses provide a comprehensive solution for modern poultry farming, combining durability, efficiency, and customization to meet the specific needs of farms of all scales.
