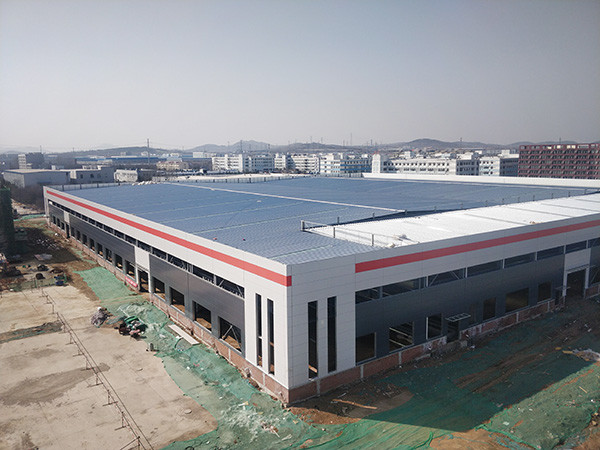

Steel structure building revolutionizes the construction market by using steel structure members. The building includes primary members, secondary members, and cover sheeting connected to each other. Structural members are custom designed to be lightweight yet high in strength. These buildings can be fitted with various structural additions like trusses, mezzanine floors, canopies, crane systems, windows and doors as per user requirements.

The main structural components include:

• Primary Framing: Main steel frame composed of steel beams, columns, and trusses made of section steel and steel plate, with rust removal and anti-rust processes like shot blasting, painting, and galvanizing.
• Secondary Framing: Includes bracing, Z and C section purlins that connect the main frame and help resist longitudinal loads like wind and earthquakes. Purlins available in 1.8mm to 3.0mm thickness with galvanized sheets.
• Roof and Wall Cladding: Steel sheets with galvanized or aluminum zinc base, available in 0.3mm-0.7mm thickness. Sandwich panels with insulated core materials (EPS, fiberglass wool, rock wool, PU) in various thicknesses.

• More usable space, less material: Thinner structural elements allow greater usable space with lower material costs.
• Strength, beauty, design freedom: Offers architects flexibility in color, type, and shape with wide spanning capabilities.
• Less columns, more open space: H section steel beams provide clear spans over 50 meters, trussed construction up to 150 meters.
• Fast construction: Components fabricated off-site for quick assembly in all seasons.
• Lighter and environmentally friendly: Requires less extensive foundations, reducing environmental impact.

• Portal frame structures: Ideal for industrial and commercial buildings like warehouses, workshops, and factories.
• Frame structures: Used in offices, malls, and exhibition halls where walls serve only as enclosures.
• Light steel structures: Cost-effective solutions with high factory production and small installation workload.

We can provide quotations based on your drawings or design custom solutions. Please provide:

• Project site location
• Overall dimensions (length × width × eave height)
• Mezzanine requirements (if any) and load capacity
• Wall type preference (single-layer steel sheet or sandwich panel)
• Snow load and wind speed/load specifications
• Interior column allowance
• Overhead crane requirements (if needed)
• Any other particular requirements

We operate 6 modern factories with 130,000 square meters of production space. During production, we provide:

• Visual documentation of all production links
• Option for video calls to observe workshop production
• Factory visits for goods inspection

With over 25 years of manufacturing experience and certifications including ISO 9001, CE, BV, and SGS, we ensure:

• Quality steel structures at competitive prices
• Comprehensive service from all departments
• Client satisfaction through coordinated efforts

We use container and pallet packing to protect surface finishes and mark components sequentially for easy installation.

We provide detailed instructions and videos. Our engineers can assist on-site if required. Installation process:

1. Foundation construction with pre-embedded anchor bolts
2. Column installation with crane assistance
3. Beam installation between adjacent columns
4. Roof and wall purlin installation
5. Wall and roof sheet fixing with self-tapping screws
6. Cover installation on corners and openings
7. Window and door installation

• Are you a factory or trading company? We are a manufacturer offering direct pricing.
• What information is needed for quotation? Provide warehouse dimensions, draft drawings, layout, and material preferences.
• Can you provide custom designs? Yes, our experienced team can assist with personalized solutions.
• Do you provide installation support? We offer detailed drawings and can send engineers or teams upon request.
• What is the delivery time? Typically 30-55 days after deposit receipt, depending on order quantity.
