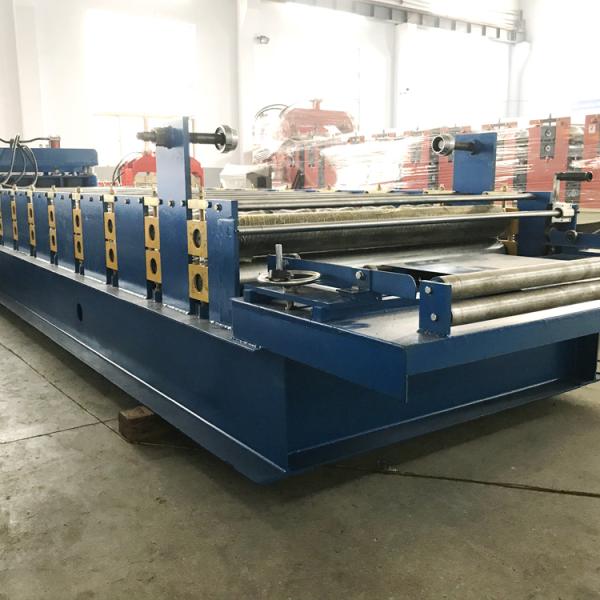

Building Material 800 Aluminum Roof Glazed Tile Making Machine Floor Sheet Roll Forming Machine
Building Material 800 Aluminum Roof Glazed Tile Making Machine Floor Sheet Roll Forming Machine
Building Material 800 Aluminum Roof Glazed Tile Making Machine Floor Sheet Roll Forming Machine
Building Material 800 Aluminum Roof Glazed Tile Making Machine Floor Sheet Roll Forming Machine
Building Material 800 Aluminum Roof Glazed Tile Making Machine Floor Sheet Roll Forming Machine
Building Material 800 Aluminum Roof Glazed Tile Making Machine Floor Sheet Roll Forming Machine
Building Material 800 Aluminum Roof Glazed Tile Making Machine Floor Sheet Roll Forming Machine
Building Material 800 Aluminum Roof Glazed Tile Making Machine Floor Sheet Roll Forming Machine
Specifications
Model Number :
ZTAC
Certification :
CE
MOQ :
1 set
Price :
on discuss
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
20 sets per month
Delivery Time :
30 days after receiving deposit
Packaging Details :
the Packaging Detail of roll forming machine door : Standard and safe export package, suitable for long term sea way shipping Delivery Detail: within 45 working days after down payment received
Brand Name :
ZTRFM
Place of Origin :
China
Application :
Step tile making machine
Material Thickness: :
0.4-0.7mm
Rolling Speed: :
6-8m/Min
Roller Stations: :
16 Stations
Hydraulic Cutting Power: :
7.5kw
Material of Shaft: :
45 Steel
Transport Package: :
Plastic Film, Container
HS Code: :
845522100
Description

Building Material 800 Aluminum Roof Glazed Tile Making Machine Floor Sheet

Building Material 800 Aluminum Roof Glazed Tile Making Machine Floor Sheet Roll Forming Machine

Working flow
Building Material 800 Aluminum Roof Glazed Tile Making Machine Floor Sheet Roll Forming Machine

Machine components

No. Name Qty
1. De-coiler 1 Set
2. Roll Forming Machine 1 Set
3. Pressing Device 1 Set
4. Hydraulic Cutting Device 1 Set
5. PLC Control Box 1 Set
6. Hydraulic Pump 1 Set
7. Stacker 1 Set


Decoiler

Type Manual type(standard) Hydraulic type(option)
Width 1250mm 1500mm
Capacity Max 5tons From 5-15 tons
Inner diameter φ508-610mm φ508-610mm
Outer diameter φ1500mm φ1800mm

roll forming

(1) Suitable material: color steel

(2) Thickness of the plate : 0.3-0.8mm

(3) Input width of the plate: 1250/1000mm

(4)Width of the plate after forming: 1035/828mm

(5) Productivity :4-6m/min

(6) Roller steps :11rows

(7) Roller material: 45# steel Rolling chromium thickness:0.05 mm

(8) Diameter of active shaft: 70mm

(9) Wall thickness of the main forming machine:16mm steel plate

(10) Main forming machine body : 360mmH steel

(11) Transmission chain is1’’

Reducer is 5.5kw which works stably and no noise

(12) Cutting hydraulic systerm adpats CDF-10 gear pump,the motor power is 4kw,

no noise, work stably, long life expentancy.

(13) PLC control systerm, easy to operate, high precision and work stably.

(14) Dimensions of major structure:4600mm*850mm*800mm

Pressing and cutting device

Type bearing sliding type
Blade material Cr12mov quenching and grinding
Frame processing the whole bottom frame is grinding for high-precision
Blade processing wire-electrode cutting, but the upper balde can not be straight. this is technology
Working Hydraulic type

Stacker

Type Manual Auto(option)
Length 1.5m-2m 6m or 12m

PLC

Main item Parameter detail
PLC Delta(standard) or according to your request
Inverter China brand(standard) or according to your request
Touch screen Mcgs(standard) or according to your request
Encoder China brand(standard) or according to your request
Voltage/HZ/Phase 380v/50-60hz/3phase

Hydraulic pump

Main Item Parameter detail
Motor 3kw China brand or according to your request
Pump China brand or according to your request
Solenoid valve China brand or according to your request
Cooling system

Cooling fan

5. After-sale service:

We supply one year guarantee for the machine. The parts of the roll forming machine are free to send you and

you will pay the cost of freight. And you can aslo solve it if you ordered more parts for your rol forming machine

We supply all life tech support of our roll forming machines, Any questions, you can contact me by whatsapp.

( I suggest that whatsapp or wechat is good. Because i can get your words timely) Important thing, you can write mail to me.
