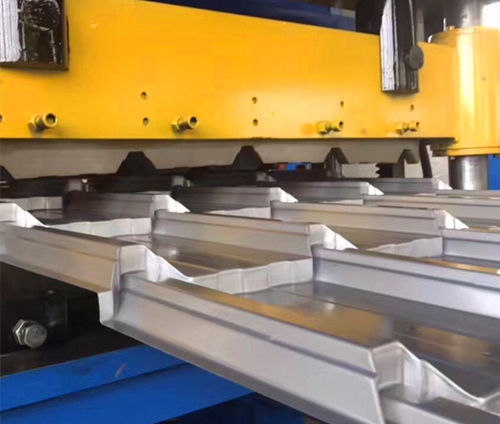

Hydraulic Cutting Steel Sheet Roll Forming Machine / Roof Tile Making Machine
Hydraulic Cutting Steel Sheet Roll Forming Machine / Roof Tile Making Machine
Hydraulic Cutting Steel Sheet Roll Forming Machine / Roof Tile Making Machine
Hydraulic Cutting Steel Sheet Roll Forming Machine / Roof Tile Making Machine
Specifications
Model Number :
floor decking Machine
Certification :
CE
MOQ :
1 set
Price :
on discuss
Payment Terms :
T/T, L/C, Western Union
Supply Ability :
20 sets per month
Delivery Time :
30 days after receiving deposit
Packaging Details :
the Packaging Detail of roll forming machine door : Standard and safe export package, suitable for long term sea way shipping Delivery Detail: within 45 working days after down payment received
Model NO.: :
EN-130JK
Material Thickness: :
0.4-0.7mm
Rolling Speed: :
6-15m/Min
Roller Stations: :
14 Stations
Hydraulic Cutting Power: :
5.5kw
Material of Shaft: :
45 Steel
Transport Package: :
Plastic Film, Container
HS Code: :
845522100
Description

Concrete Roof Tile Making Machine Hydraulic Cutting For Construction 14 Rows

1. what is the description of step tile roll forming machine

Machine description Quantity Delivery time Container type
step tile roll forming machine china 1 SET 40working days after deposit 40GP

2. what is the production process of step tile roll forming machine

Uncoiling--->Feeding material into machine-->Roll forming --->Measuring length --->Step formed--->Auto cutting--->Pruducts receving.

3. what is the specification of step tile roll forming machine

Name step tile roll forming machine
Material Color steel sheet
Thickness 0.3-0.8mm
Coil inner diameter 450-550mm
Max coil out diameter 1300-1600mm
Max coil width 1250mm
Carrying capacity 5T
Forming steps 13rollers
Shaft diameter 80 mm
Design type pillar structure
Roller material 45 # steel chrome plating chromium
Shaft material 40Cr steel
Work speed 4-12m/min
Transpor by chain
Type of cutting hydraulic
Cutting tolerance whthin 1mm
Cutter Gcr12
Material of blades Cr12 quenched
PLC Delta
Counter Omion
Voltage as required
Dimension 7000x1500x1910mm
Weight About 5 T
Workers 1-2 only

4. Details of step tile roll forming machine

Hydraulic Cutting Steel Sheet Roll Forming Machine / Roof Tile Making Machine

FAQ:

1.How to get a quotation?
Give me the profile drawing and thickness,this is the important.
Other spicific requirements is welcome,such as the speed,power and voltage you want.

2. Terms of payment:
30% T/T, Balance to be paid before shipping after inspection.Also we accept the payment L/C, O/A , D/P.

3. Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.

4. How long the machine could be made?
Normally speaking, welded pipe making machine could be made without 45 working days. If you need machines in a hurry, we can make it for you less than a month.

5. What is your after-sale service?
Roll forming machine's warranty period is 12months,if the broken parts can't be repaired,we can send new to replace for free,but you need to pay the express cost yourself.we supply the technical support for the whole life of the equipment.

6. You are trade company or factory?
We are trade company but we also have own factories. Building trade company is just for exporting various types of cold roll forming machine chinas.
